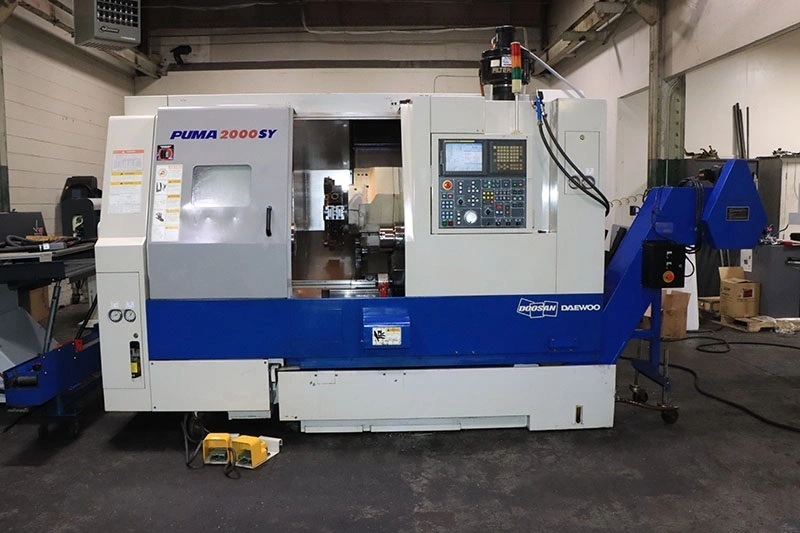

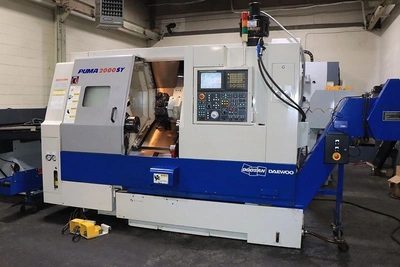

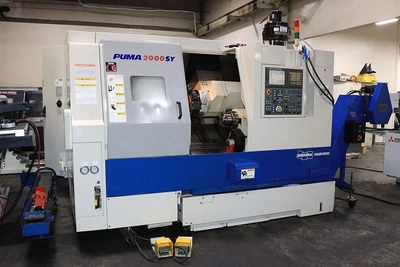

2006 DOOSAN DAEWOO PUMA 2000SY

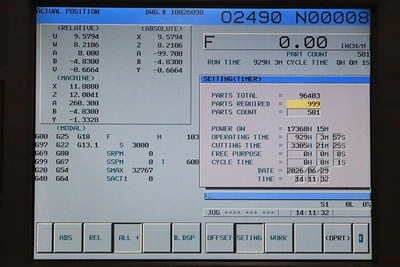

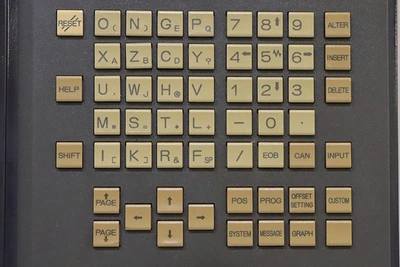

CNC Control: Fanuc 18i-TB
Capacity:
Swing Over Bed: 23.6"
Swing Over Carriage: 21.6"
Max. Bar Capacity: 2.6"
Max. Turning Diameter (main spindle): 13"
Max. Turning Length: 20.1"
Distance between main& sub-spindle: 33.8"

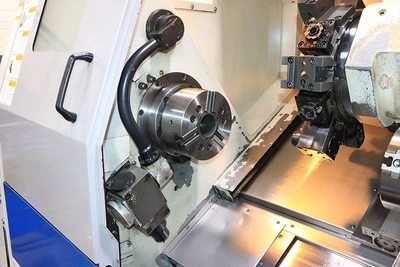

Main Spindle:
Spindle Speed: 4500 RPM
Spindle Nose: A2-6
Draw Tube ID: 2.6"
Spindle Bore Diameter: 2.99"
AC High Torque Spindle Motor: 20HP
Main Spindle C-Axis:
Min. Programmable Angle: .001 degrees
Y-Axis:
Travel: 3.94"
Rapid Traverse Rate: 295 IPM
Repeatability: .00012"
Bed,Saddle,Cross Slide:
Travel (X/Z-Axis): 9.8"/22.8"
Rapid Traverse Rate (X/Z-Axis): 788/945 IPM
Ball Screw Diameter (X/Z-Axis): 1.3"/1.3"
Turret:
# of Tools: 12
Turning Tool Shank Size: 1"
Boring Bar Diameter (main spindle): 1.5"
Boring Bar Diameter (sub-spindle): .75"
Turret Index Time (next station): 0.1 seconds
Tool Selection: Bi-Directional
Rotating Tools:
RPM: 6000 RPM
Spindle Motor (15 min ratings): 7.5 HP
Torque: 17.4 ft-lbs
Collet Type: ER25
Collet Capacity: 1/16" - 5/8"

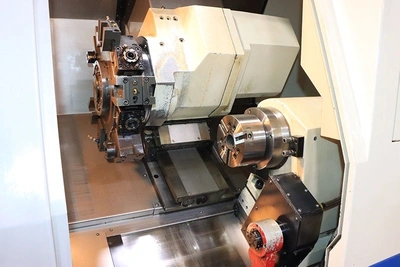

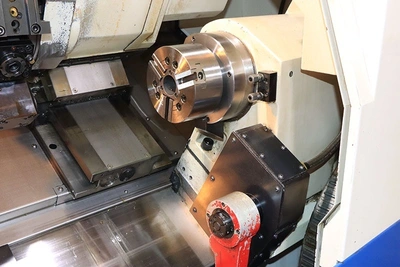

Sub-Spindle:
B-Axis Travel: 22.8"
Speed: 6,000 RPM
Motor: 10 HP
Spindle Nose: A2 #5
Spindle Bore: 1.77"
Draw Tube ID: 1.38"
Rapid Traverse Rate: 787 IPM
Min. Programmable Angle: .001 Degree (Full C-Axis)
Coolant System:
Pump Pressure: 65 PSI
Pump Motor: 1.2 HP
Tank Capacity: 39 Gallons
Hydraulic Tank Capacity: 2.6 Gallons
Dimensions (approx.): 123" x 67"
