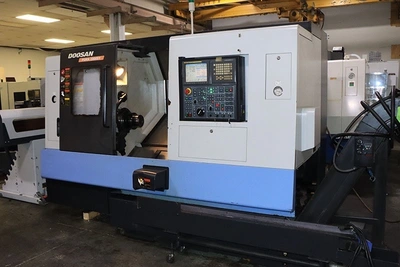

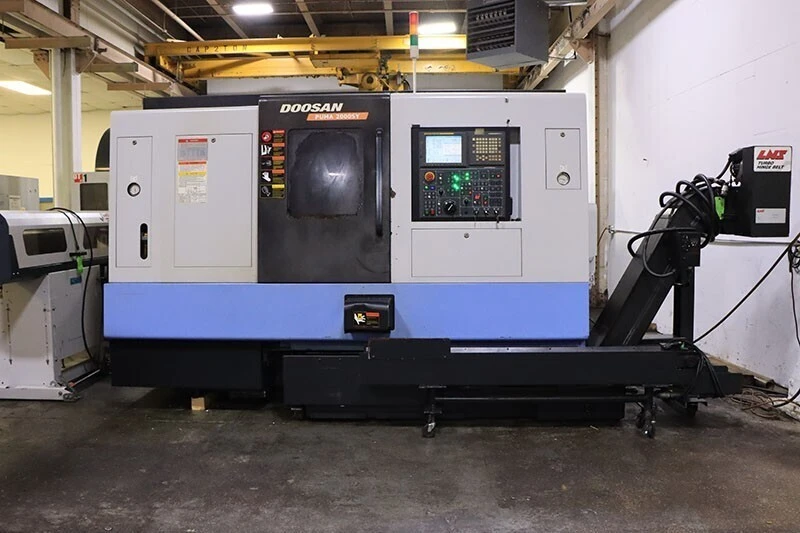

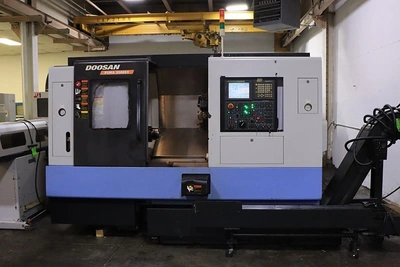

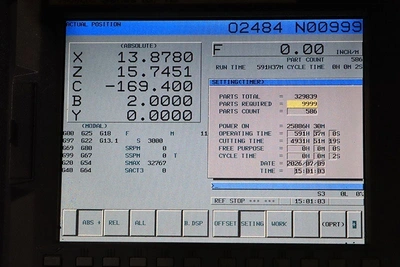

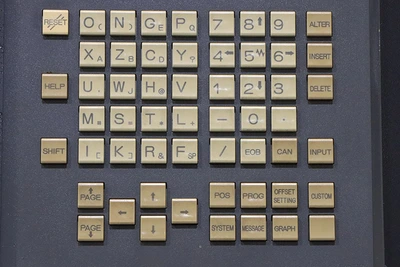

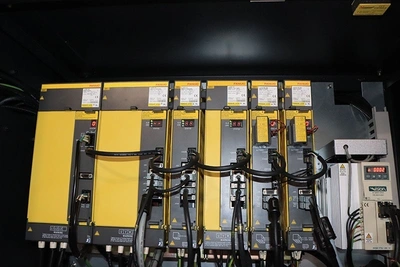

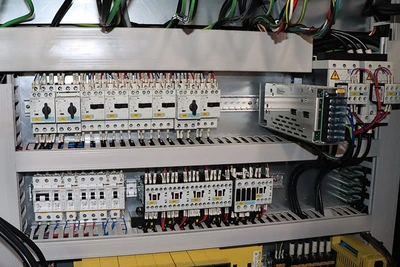

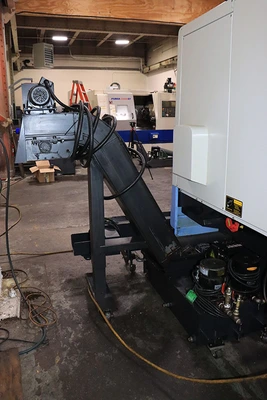

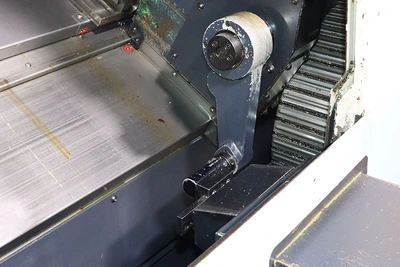

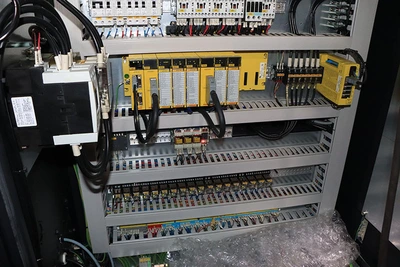

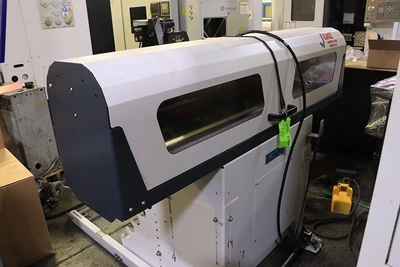

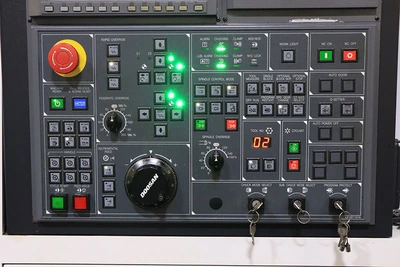

2008 DOOSAN PUMA 2000SY

CAPACITY:
Swing over bed 23.6"
Swing over carriage 21.6"
Maximum bar capacity 2.625”
Maximum turning diameter, main spindle 13.0"
Distance between main & subspindle face 33.8”
MAIN SPINDLE:
Spindle speed 45 - 5,000 RPM
Spindle nose ASA-A2-6
Draw tube I.D. 2.677"
Spindle bore diameter 2.99"
AC high torque spindle motor (20 min rating) 20 HP
Maximum spindle torque 351 ft-lbs
MAIN SPINDLE C-AXIS:
Minimum programmable angle (degrees) .001
Rapid traverse rate (RPM) 200
C-axis repeatability +/- .006 deg.
C-axis positioning accuracy .0167 deg.
Y-AXIS:
Y-axis travel 3.94”
Y-axis rapid traverse rate 295 IPM
Y-axis repeatability .00012”
BED, SADDLE, & CROSS SLIDE:
X axis travel 9.8”
Z axis travel 22.8”
Angle of slant bed 30 degrees
X axis guideway span 8.9”
Z axis guideway span 14.2”
X axis rapid traverse rate 790 IPM
Z axis rapid traverse rate 945 IPM
X axis ball screw diameter 1.3"
Z axis ball screw diameter 1.3”
Maximum X axis feed thrust 2,170 lbs.
Maximum Z axis feed thrust 2,170 lbs.
X axis repeatability + 0.00006"
Z axis repeatability + 0.00008"

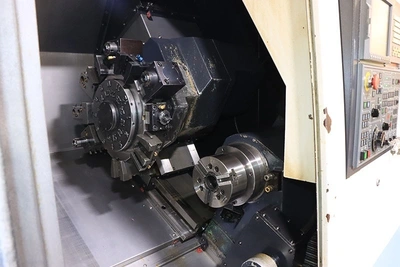

TURRET:
Number of tools 12
Tool holder type BMT 55
Turning tool shank size 1.0"
Boring bar diameter, main spindle 1.5"
Boring bar diameter, sub spindle 1.0”
Turret index time (next station swivel time) 0.1 sec.
Tool selection Bi-directional
Turret index repeatability + .0005 degree
ROTATING TOOLS:
Rotating tool RPM 50 - 5,000 RPM
Rotating tool spindle motor (15 min rating) 7.5 Hp
Rotating tool torque 34.7 ft-lbs
Rotating tool collet type ER25
Milling collet capacity 1/16” to 5/8"

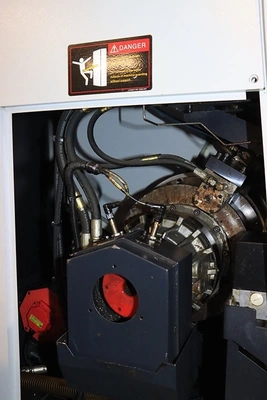

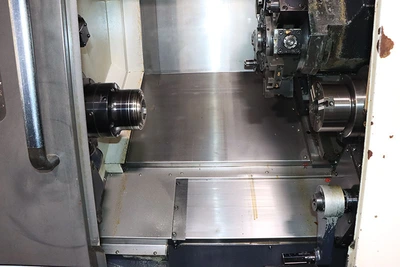

SUB-SPINDLE:
B axis travel (sub-spindle) 22.8”
Sub-spindle guideway span 9.8”
Spindle speed 60 – 6,000 RPM
Spindle motor 10 HP
Maximum torque 34.7 ft-lbs.
Spindle nose A2#5
Spindle bore 1.77”
Draw tube ID 1.38"
Rapid traverse rate 787 IPM
Minimum programmable angle .001 degree
COOLANT SYSTEM:
Coolant pump pressure 65 PSI
Coolant pump motor 1.2 HP
Coolant tank capacity 39 gallons
GENERAL:
Floor space (Length X Width) 123” x 67” (w/o Chip Conveyor)
Approximate Weight 10,670 lbs
Voltage required 205 - 235 volt / 3 phase
Power requirement: 51 KVA (134 amps at 220 volts)
