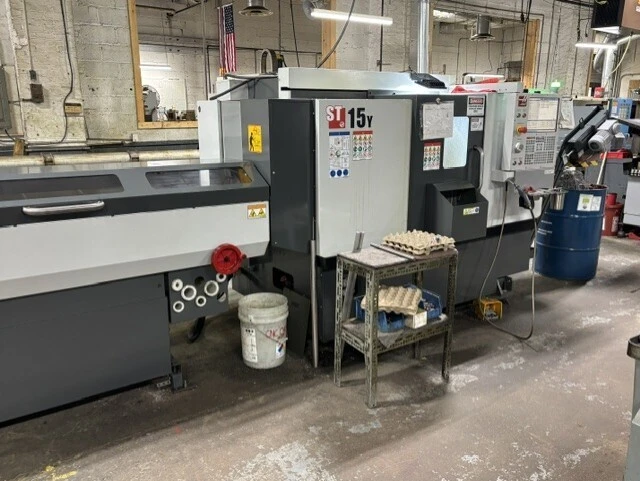

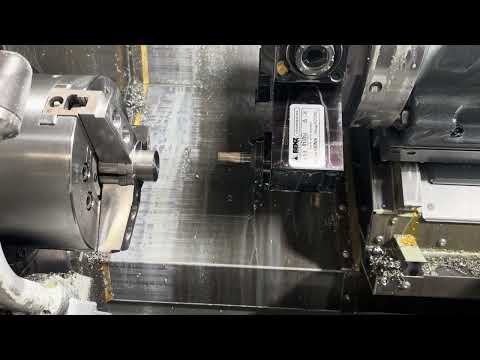

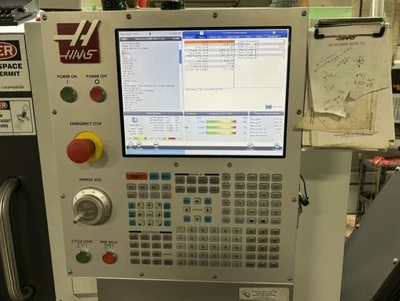

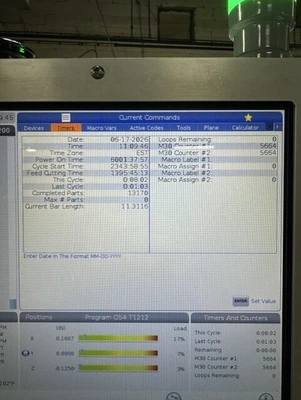

2023 HAAS ST-15Y

Capacities

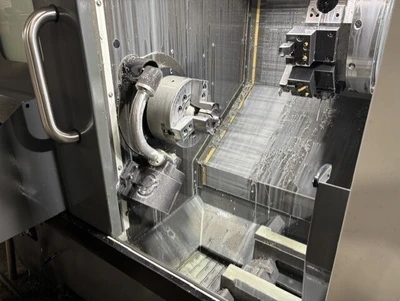

Chuck Size: 8.3 in
Max Part Swing: 16.5 in
Max Cutting Diameter (with BMT45 turret): 11.00 in
Max Cutting Length (varies with workholding): 16.0 in

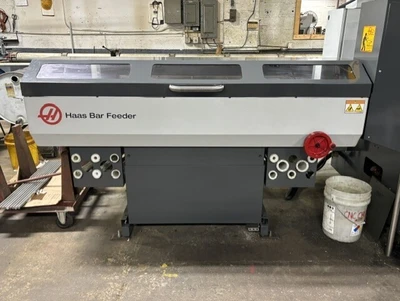

Bar Capacity 2.50 in 64 mm
Travels
X Axis 7.88 in
Y Axis ± 2.0 in
Z Axis 16.00 in
Feedrates
Rapids on X 472 ipm 12.0 m/min
Rapids on Y 472 ipm 12.0 m/min
Rapids on Z 1200 ipm 30.5 m/min
Axis Motors S.A.E METRIC
Max Thrust X 2400 lbf
Max Thrust Y 2300 lbf
Max Thrust Z 3700 lbf
Spindle S.A.E METRIC
Spindle Nose A2-6
Max Rating 20.0 hp 14.9 kW
Max Speed 4000 rpm
Max Torque 150.0 ft-lbf @ 500 rpm
Spindle Bore ø 3.50 in
Main Spindle C Axis
Max Rating 5.0 hp 3.7 kW
Max Speed 60 rpm
Positioning (±) 0.01 °
Brake Diameter 13.9 in
Brake Holding Torque 250 ft-lbf
Control Type Interpolated Motion and Positioning Interpolated Motion and Positioning

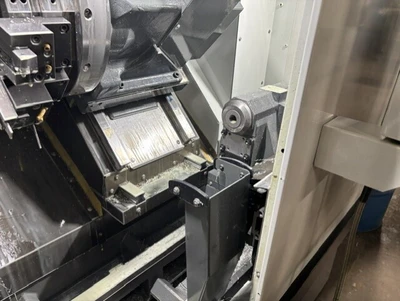

Tailstock
Taper MT3
Hydraulic Quill Travel 3.8 in
Manual Body Positioning 20.0 in
Max Thrust (Hyd. Quill Only) 1130 lbf
Min Thrust (Hyd. Quill Only) 140 lbf

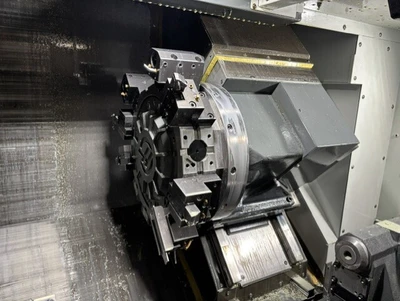

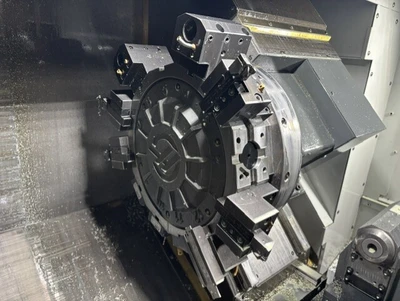

Turret
Number of Tools 12 Stations
Boring Bar Rear Clearance (from back of turret )3.80 in
Live Tooling
Max Speed 4000 rpm
Tooling BMT45
Spindle Power 20.0 hp 14.9 k
