2022 DN SOLUTIONS Puma 5100LC
Have one to sell?
ConditionUsed
1 available
Used CNC Lathe. It boasts a 24-3/4" spindle chuck, 26" max turning diameter, 82" turning length, and a 12-station turret. Equipped with Fanuc I Series Plus CNC Control and LNS Turbo HB Chip Conveyor.
Main Spindle Chuck: 24-3/4"
Max Turning Diameter: 26"
Max Turning Length: 82"
Spindle Bore: 3.23"
Spindle Speed: 1,000 RPM Max
Spindle Power: 50 HP
Spindle Torque: 3,294 ft-lbs
Spindle Bore: 10.5"
X-Axis Travel: 14.23"
Z-Axis Travel: 84.8"

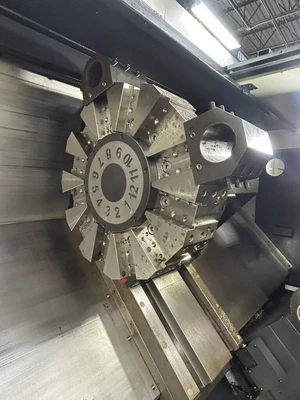

Turret: 12-Station
Rapid Traverse X / Z: 630 / 787 IPM
Electrical: 220V/3PH

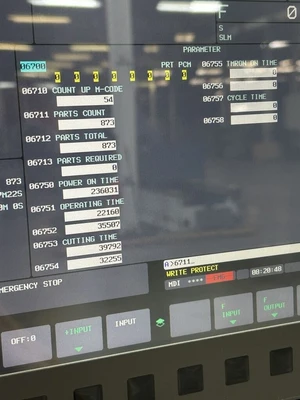

Power On Hours: 3,934
Cutting Hours: 663
Parts Count: 873

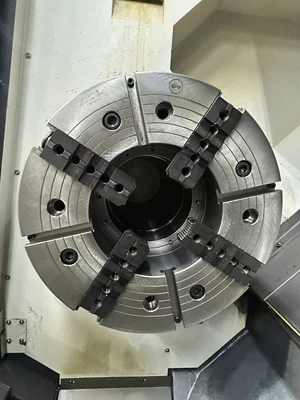

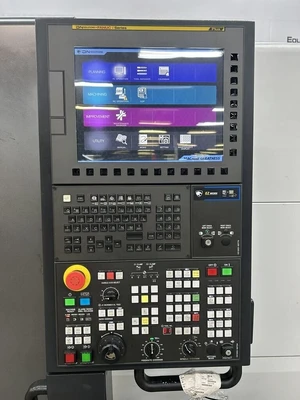

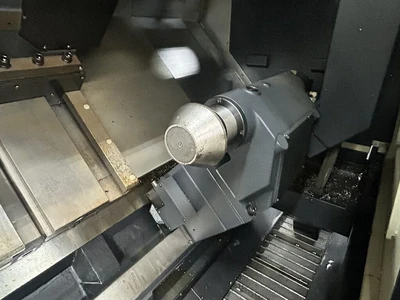

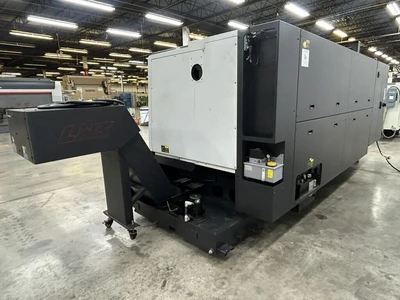

Fanuc I Series Plus CNC Control With Ez Work Interface, 12-Station Turret, 4-Jaw Bison Power Chuck (Made In Poland), Programmable Hydraulic Tailstock, 2-Speed Gearbox, Box Way Construction, Lns Turbo Hb Chip Conveyor (Model 57809096, S/N 13578000407), Full Enclosure With Dual-Door Front Access, Coolant System, Work Light, Foot Pedal
