SWING OVER BED 806.45 mm
MAX CUTTING DIAMETER 457.2 mm
MAX CUTTING LENGTH 584.2 mm
X-AXIS TRAVEL 317.5 mm
Y-AXIS
Y-AXIS TRAVEL +/- 2"
Z-AXIS TRAVEL 660.4 mm
C-AXIS INDEXING FULL C-AXIS
CHUCK SIZE 254 mm
BAR CAPACITY 76.2 mm
SPINDLE BORE 88.9 mm
SPINDLE NOSE A2-6
SPINDLE MOTOR 22.4 kW
SPINDLE SPEED 3,400 RPM

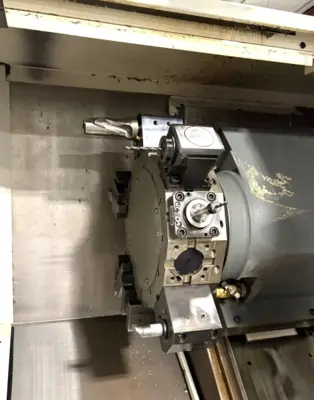

TURRET CAPACITY 24 POSITION
TURRET TYPE BMT65
LIVE MILLING
LIVE MILLING SPEED 4,000 RPM
2-SPEED GEARBOX
Y-AXIS
LIVE MILLING, FULL C-AXIS
10", 3-JAW HYDRAULIC CHUCK

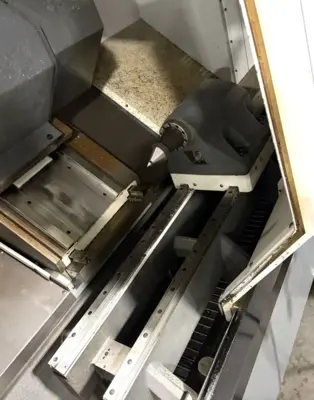

PROGRAMMABLE TAILSTOCK
TOOL PRESETTER
COOLANT TANK
CHIP CONVEYOR
HIGH-INTENSITY LIGHTING
SPINDLE ORIENTATION
RIGID TAPPING
QUICK CODE
ETHERNET
USB PORT
** LIVE TOOL HOLDERS INCLUDED
(1) AXIAL
(1) RADIAL

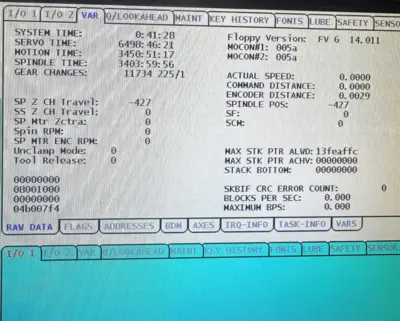

** AS OF JULY, 2026 - SPINDLE TIME: 3,403 HOURS
** MACHINE CUTTING: STAINLESS, CARBON, BRONZE, ALUMINUM
This equipment is currently unavailable. Similar equipment available now is shown below.
