2006 MAZAK NEXUS QUICK TURN 450-II
Have one to sell?
ConditionUsed
1 available

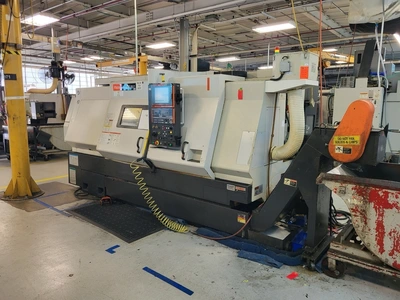

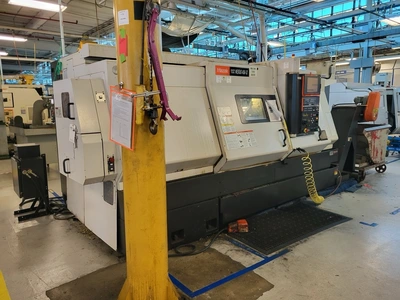

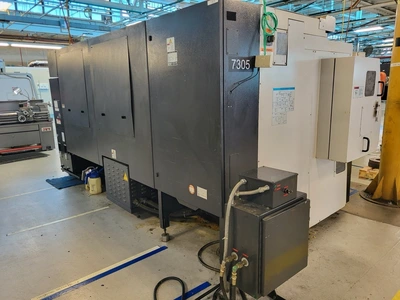

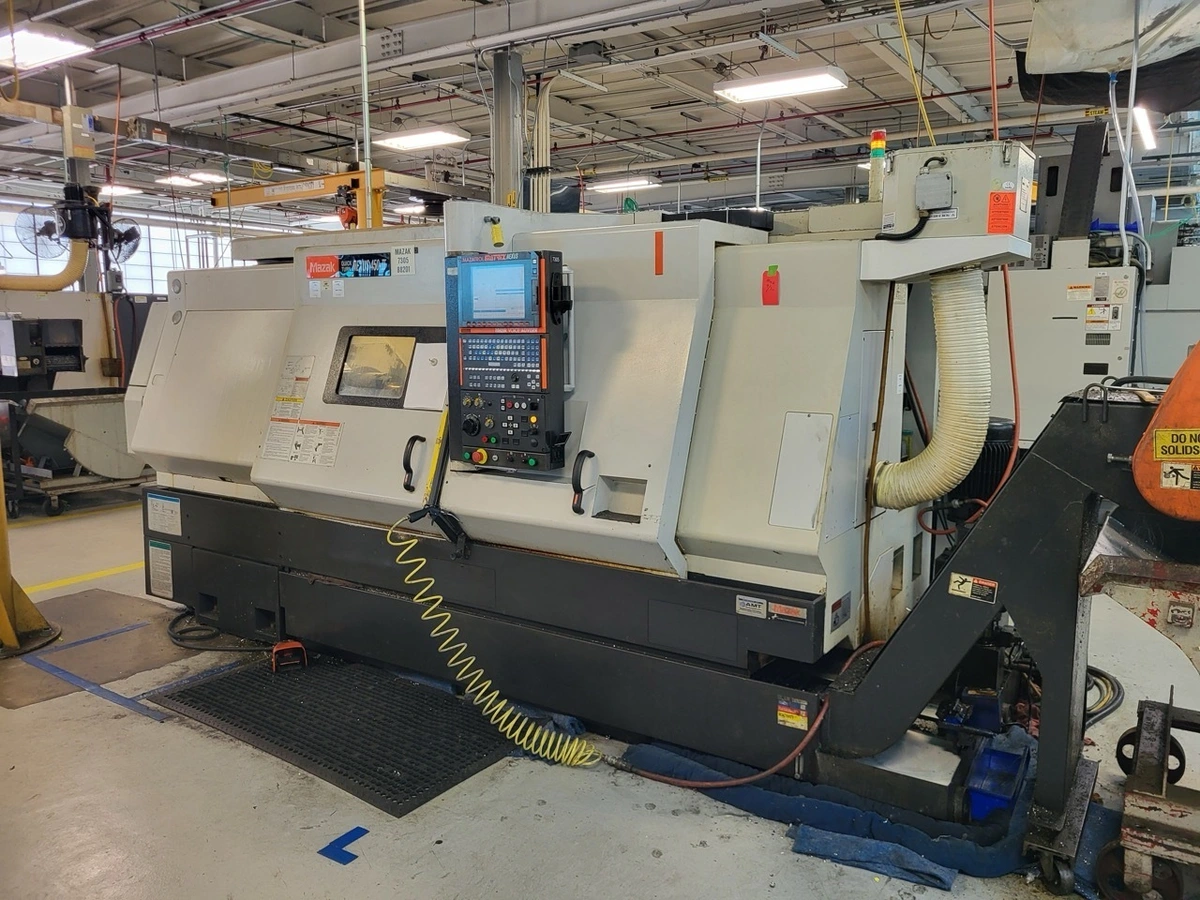

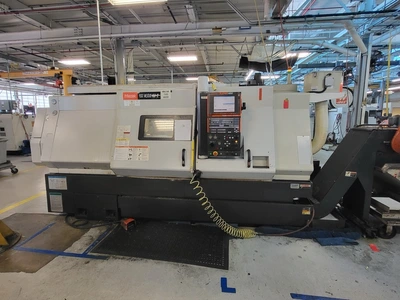

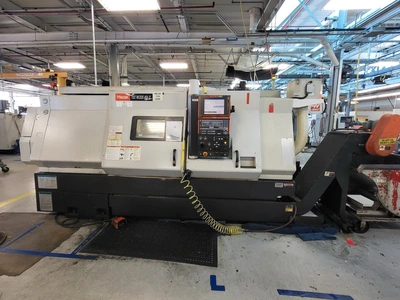

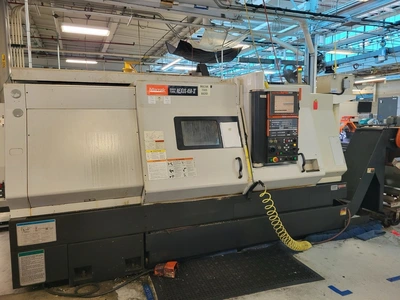

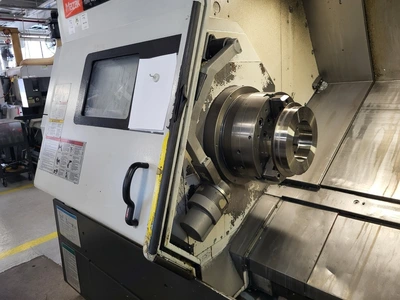

2006 MAZAK NEXUS QUICK TURN 450-II CNC lathe featuring a 19" chuck, 50 HP spindle motor, and 24-station turret. Key specs: 6.5" bar capacity, 2,000 RPM, 13.38" X-axis, 42.12" Z-axis travel. Includes Mazatrol Matrix CNC control and chip conveyor.
Bar Capacity: 6.5″

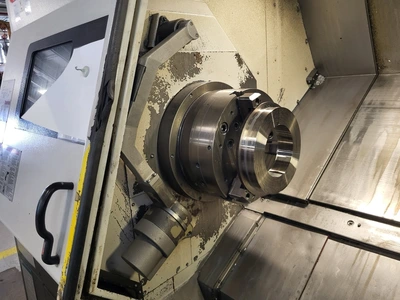

Chuck Size: 19″
Spindle Speed: 2,000 RPM
Spindle Motor: 50 HP
X Axis Travel: 13.38″
Z Axis Travel: 42.12″
Rapid Rate Z Axis: 1,181 IPM

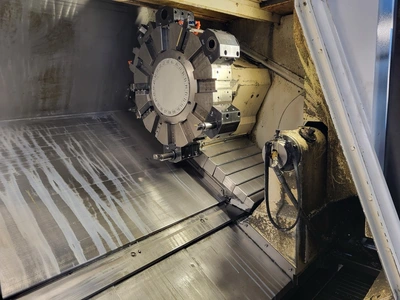

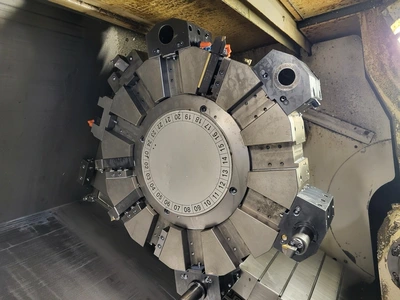

Turret Tools: 24 Station
Rapid Rate X Axis: 1,181 IPM
Max Turning Dia: 22.83″
Max Turning Length: 48″
Max Swing: 33.26″
Spindle Bore: 7″
Spindle Nose: A2-15
Maximum Diameter of Shaft Work: 18.25″
Maximum Distance Between Centers: 40″
Tailstock Center: MT#5
Tailstock Travel: 32.5″
Dimensions: 144″ x 90″ x 80″
Weight: 19,000 LBS

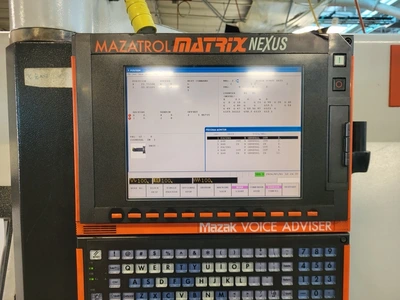

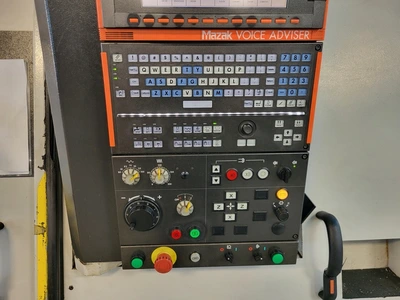

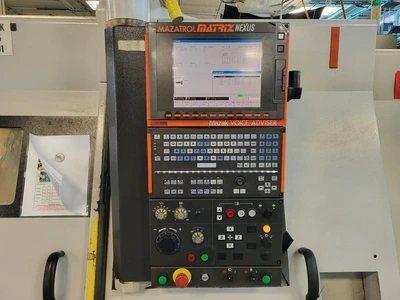

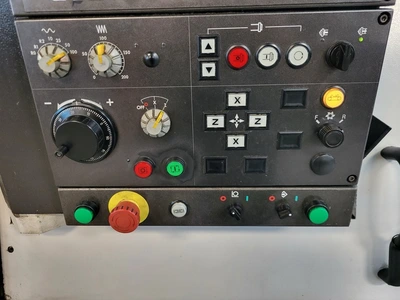

Mazatrol Matrix CNC Control

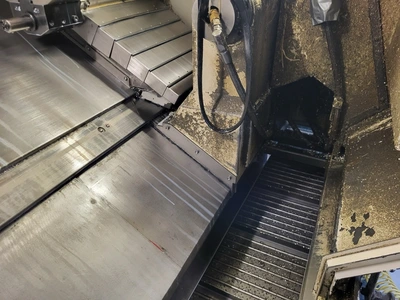

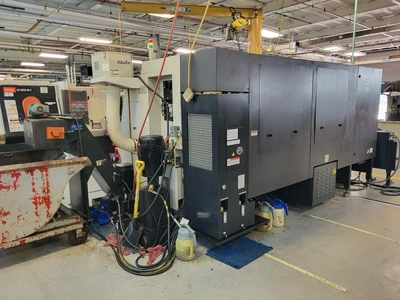

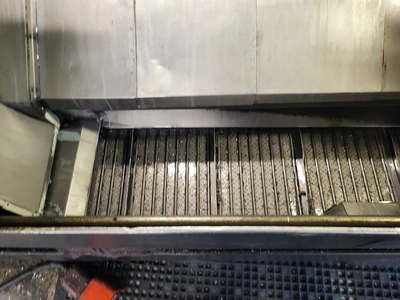

Chip Conveyor
Tailstock
Tool Setter

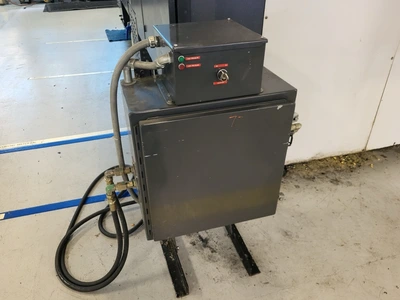

HP Coolant
