2007 SHARP SV-4020 Vertical Machining Centers | Toolquip, Inc.

Have one to sell?

Overview

Type:

Vertical Machining Centers

Manufacturer:

SHARP

Model:

SV-4020

Year:

2007

Stock #:

X4X4157

Status:

For Sale

Description

Vertical Machining Center, used. Features 40" x 20" x 20" travel, 20 hp, 10,000 RPM, 24-tool carousel ATC, CAT-40 spindle, and Fanuc 18I-Mb CNC. Equipped with spindle chiller, lubrication system, and complete enclosure.

ImperialMetric

X	40"	1,016 mm
Y	20"	508 mm
Z	20"	508 mm
Power	20 hp	14.9 kW
RPM	10,000 RPM	10,000 RPM
# ATC	24	24
Taper	CAT-40	CAT-40
Table-W	19.6"	497.84 mm
Table-L	45"	1,143 mm
# Axis	3	3
Control	CNC (Fanuc)	CNC (Fanuc)

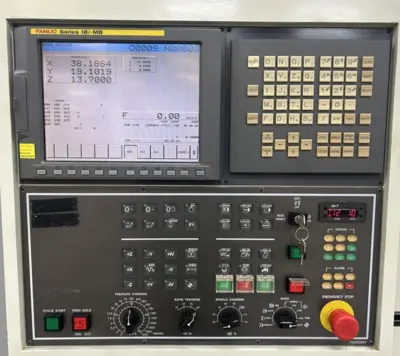

Fanuc 18I-Mb CNC Control, 10,000 RPM CAT-40 Spindle, 24-Tool Carousel ATC, Habor Hbo-250Ptsb3 Spindle Oil Chiller, Chen Ying Automatic Lubrication System, Dual Coolant Pumps, Chip Auger, MPG Handwheel, Work Light, Signal/Stack Light, Full Enclosure W/ Dual-Door Front Access.
