2007 HAAS TL-15B with live tooling
Have one to sell?
ConditionUsed
1 available

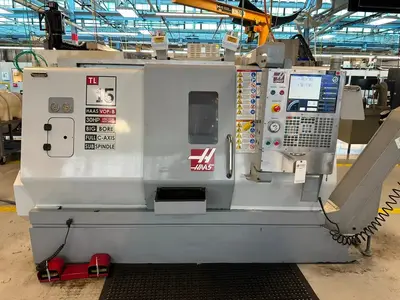

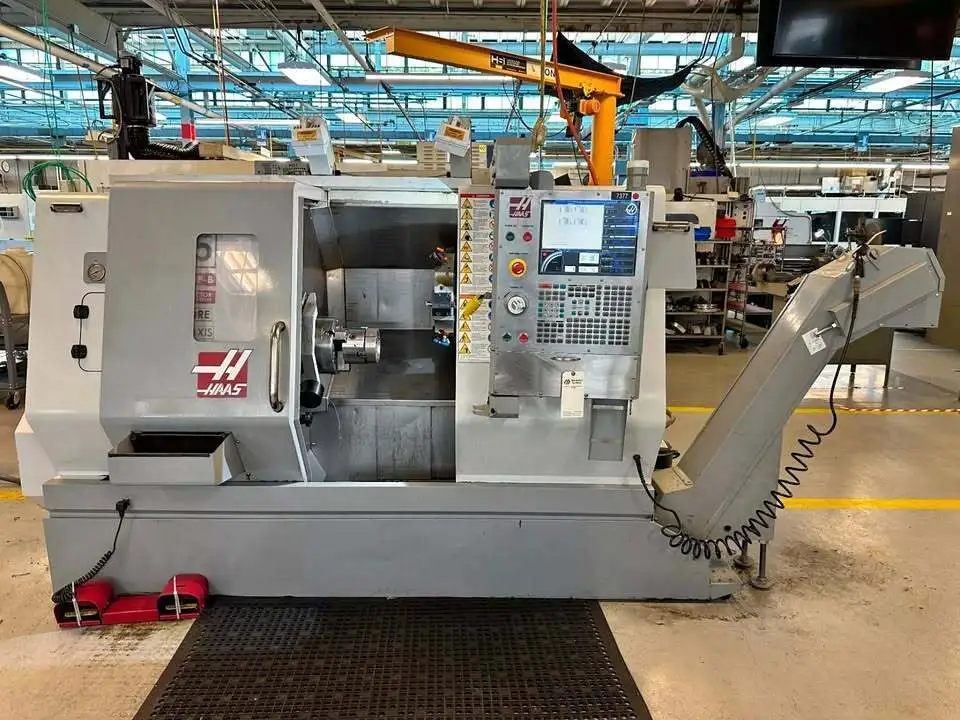

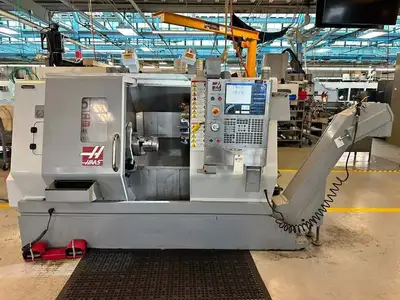

HAAS TL-15B CNC Lathe, used, featuring a HAAS automation control system, 30 HP spindle, max speed 3,400 RPM, 8-station turret with live tooling, and 3.0" bar capacity. Power on time: 11,895 hours. Equipped with Munk Power Chuck and hydraulic tailstock.
DATE OF MFG: 09 / 07
CONTROL TYPE: HAAS AUTOMATION CNC LATHE CONTROL SYSTEM
MAX SWING OVER SADDLE: 21.65" (550 MM)
MAX TURNING DIAMETER: 8.2" (208 MM)
MAX TURNING LENGTH: 17.5" (445 MM)
MAIN SPINDLE POWER: 30 HP VECTOR DUAL DRIVE SPINDLE SYSTEM
MAIN SPINDLE MAX SPEED: 3,400 RPM
MAIN SPINDLE NOSE: A2-6
BAR CAPACITY: 3.0" (76 MM) "BIG BORE" SPINDLE OPTION
TURRET TYPE: AXIAL INDEXING DISK TYPE

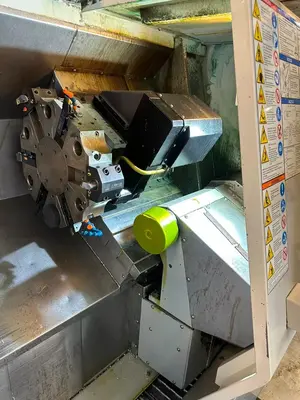

TURRET CAPACITY: 8 STATIONS (SUPPORTS TURNING AND LIVE MILLING DRIVEN TOOLS)
LIVE TOOLING SPEED RANGE: 30 - 3,000 RPM
LIVE TOOLING POWER: 5 HP (3.7 KW)
X-AXIS TRAVEL: 7.5" (191 MM)
Z-AXIS TRAVEL: 17.5" (445 MM)
TAILSTOCK CONFIGURATION: PROGRAMMABLE HYDRAULIC POSITIONING BASE WITH QUILL LIVE TAPER
RAPID TRAVERSE RATES: 710 IPM (18.0 M/MIN)
INPUT VOLTAGE REQUIREMENTS: 208 / 230 VAC
PHASE: 3-PHASE
FREQUENCY: 50 / 60 HZ
FULL LOAD AMPERAGE: 80 AMPS
LARGEST LOAD AMPERAGE: 70 AMPS
SHORT CIRCUIT INTERRUPTING CAPACITY: 10,000 AMPS
WIRING DIAGRAM NO: 93-0284
APPROXIMATE MACHINE WEIGHT: 11,000 LBS (4,990 KG)
MACHINE RUN HOURS:
POWER ON TIME: 11,895 HOURS, 00 MINUTES
CYCLE START TIME: 4,026 HOURS, 45 MINUTES
FEED CUTTING TIME: 2,415 HOURS, 06 MINUTES
M30 TOTAL CYCLE COUNT: 3,133 CYCLES
CONTROL PARAMETER BIT OPTIONS VERIFIED ACTIVE:
RIGID TAPPING (ACTIVE)
FULL C-AXIS DRIVE (ACTIVE)
LIVE TOOLING (ACTIVE)
HAAS VECTOR DRIVE CLOSED LOOP (ACTIVE)
ENABLE CHIP CONVEYOR PARAMETER (ACTIVE)
EQUIPPED WITH:
HAAS MAIN OPERATOR CONTROL CONSOLE WITH MANUAL PULSE GENERATOR JOG HANDLE WHEEL DIAL

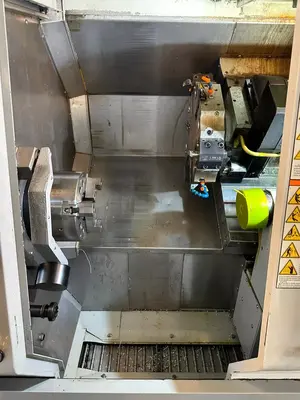

MUNK POWER CHUCK UNIT ASSEMBLY (MODEL: ZA6-10-75B-02G, SERIAL NO: 113952, CE CERTIFIED)
PROGRAMMABLE HYDRAULIC TAILSTOCK CASTING BED ALIGNMENT ARM
HENNIG MACHINE PROTECTION TELESCOPIC STEEL WAY COVERS (HENNIG JOB NO: 101569, DATE: 4/22)
HAAS CLOSED-LOOP VECTOR DUAL DRIVE 40 HP POWER AMPLIFIER MODULE UNIT
AUTOMATIC PARTS CATCHING TRAY RECEIVER DROP ARM MECHANISM ASSEMBLY
