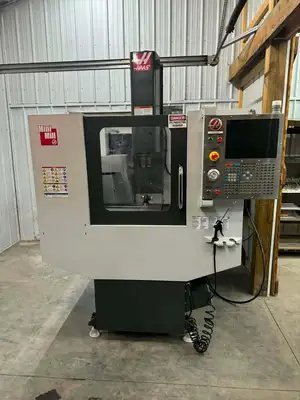

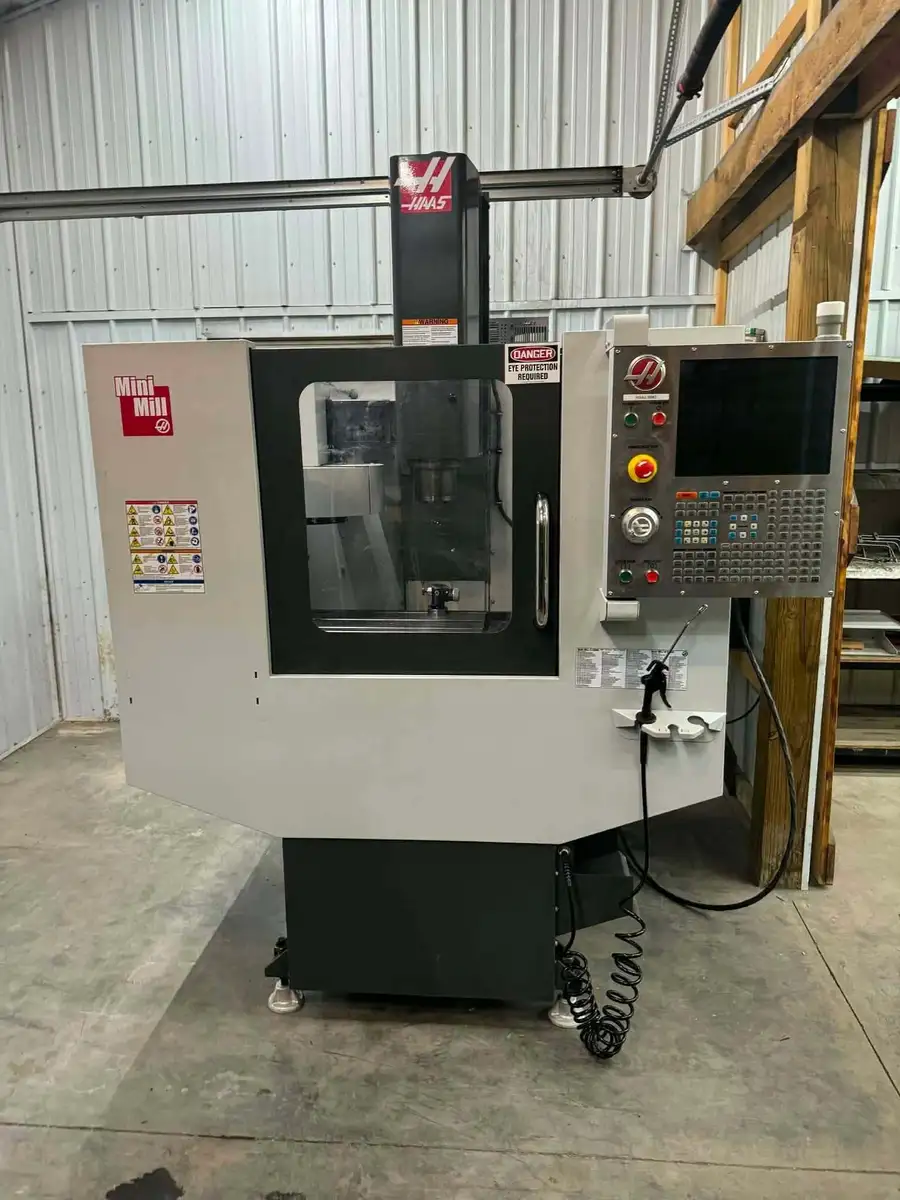

2013 HAAS MINI MILL
Have one to sell?
ConditionUsed
1 available
Used Vertical Machining Center, featuring a 16"x12"x10" XYZ capacity, 7.5 hp power, 6,000 RPM CAT-40 spindle, and 10-tool ATC. Equipped with USB Port, WIPS, and coolant pump.
Number of T slots- (3)
Maximum table weight- 500 Lbs.
Maximum spindle speed- 6,000 R.P.M.
Minimum / Maximum spindle nose to table- 4” / 19”
X,Y,Z Rapids- 800 I.P.M.
Tool changer capacity- 10
USB Port
Tool Changer
WIPS
Coolant Pump
Used Vertical Machining Center, featuring a 16"x12"x10" XYZ capacity, 7.5 hp power, 6,000 RPM CAT-40 spindle, and 10-tool ATC. Equipped with USB Port, WIPS, and coolant pump.
Imperial
| X | 16" |
| Y | 12" |
| Z | 10" |
| Power | 7.5 hp |
| RPM | 6,000 RPM |
| # ATC | 10 |
| Taper | CAT-40 |
| Table-W | 12" |
| Table-L | 36" |
| # Axis | 3 |
| Control | CNC (HAAS) |
Number of T slots- (3)
Maximum table weight- 500 Lbs.
Maximum spindle speed- 6,000 R.P.M.
Minimum / Maximum spindle nose to table- 4” / 19”
X,Y,Z Rapids- 800 I.P.M.
Tool changer capacity- 10
USB Port
Tool Changer
WIPS
Coolant Pump
