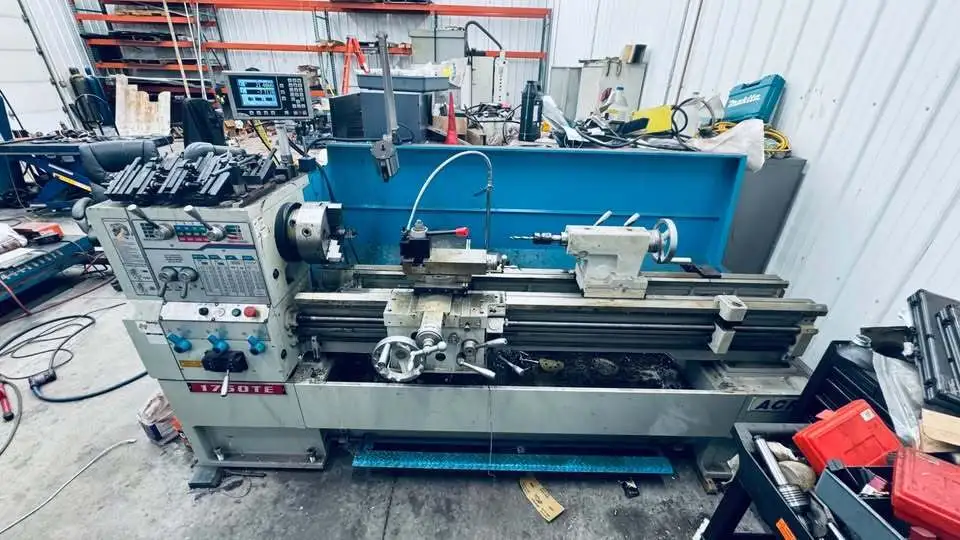

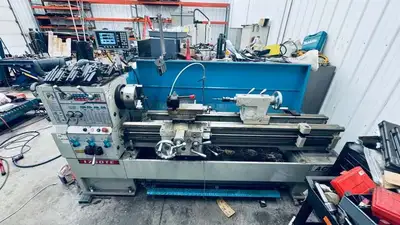

2022 ACRA 1760TE

Capacity
Capacity: 17"/24" × 60"
Swing Over Bed: 17"
Swing Over Cross Slide: 10-5/8"
Swing In Gap: 24-7/16"
Distance Between Centers: 60"
Center Height: 8-1/2"
Bed Width: 12-1/2"
Headstock
Spindle Nose: D1-6
Spindle Bore: 2-1/2"
Taper of Spindle: MT No. 5
Spindle Speeds (Steps): 12 Step
Spindle Speed Range: 36 – 1,800 RPM
Carriage
Cross Slide Travel: 9.84"
Compound Slide Travel: 5.9"
Threads & Feeds
Inch Threads: 2–72 TPI
Metric Threads: 0.2–14 mm
Longitudinal Feeds: 0.0015–0.04"/rev
Cross Feeds: 0.00075–0.02"/rev
Tailstock
Quill Diameter: 2.32"
Quill Travel: 5"
Quill Taper: MT No. 4
Power
Spindle Drive Motor: 7.5 HP
Voltage: 230V/460V AC / 3 PH
