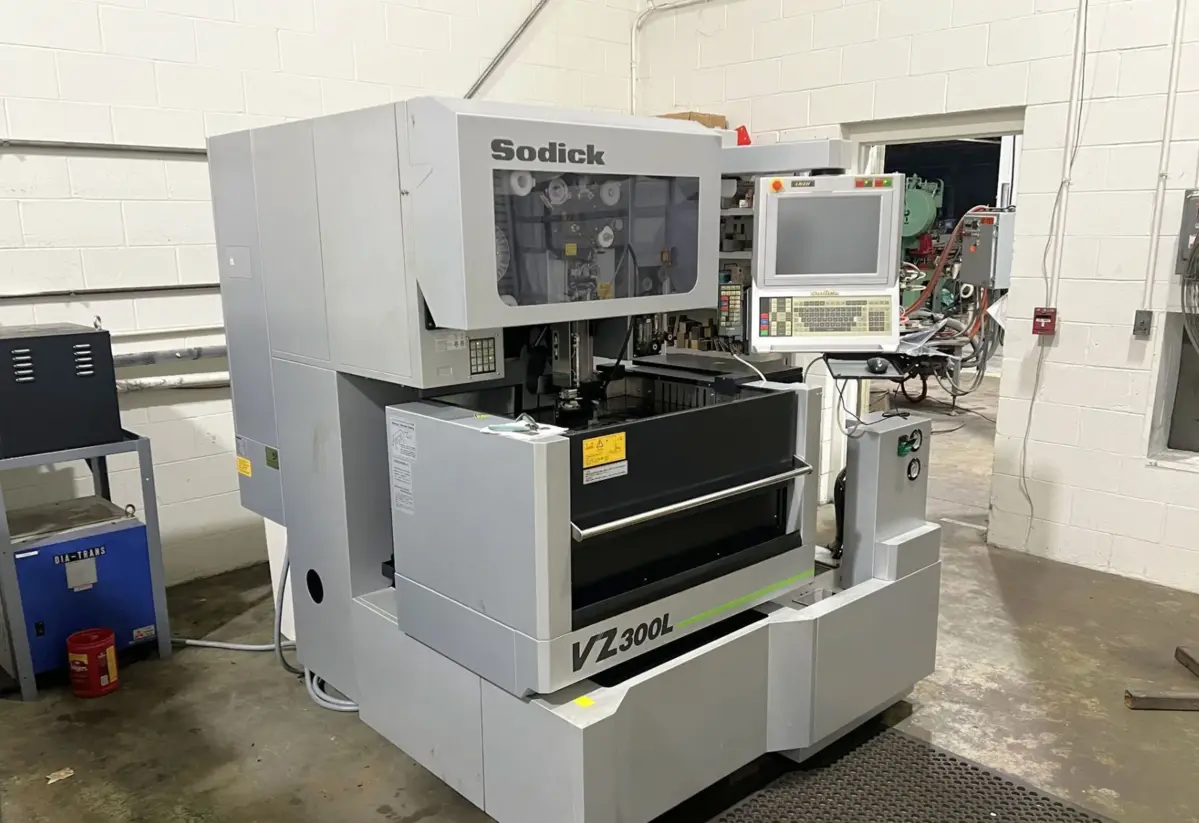

2015 SODICK VZ300L
Have one to sell?
ConditionUsed
1 available
Used Wire EDM with a spacious 31.88" x 25.59" tank, 13.77" X-axis travel, and heavyweight capacity of 1,200 lb. Equipped with linear motors, advanced control systems, and automatic wire threading. Dimensions: 27.95" x 81.49" x 70.86".

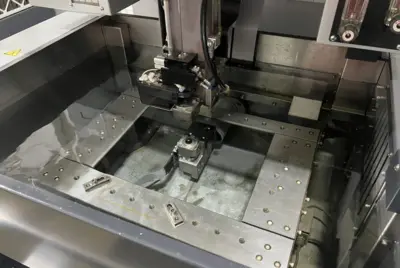

TANK SIZE 31.88" X 25.59"
MAX PART WEIGHT 1,200 lb
X-AXIS TRAVEL 13.77"
Y-AXIS TRAVEL 9.84"
Z-AXIS TRAVEL 8.66"
U & V AXIS TRAVEL 3.14
MAX TAPER ANGLE +/- 15 DEG
WIRE DIAMETER .0059 - .011"
Dimensions 27.95" X 81.49" X 70.86"
Weight 5,280 LBS
LINEAR MOTORS (X/Y/Z AXES)
ABSOLUTE LINEAR SCALE (X/Y/Z AXES)
CERAMIC COMPONENTS
LINEAR MOTOR COOLING UNIT
LN2W GENERATOR
SODICK FINE CORNER CONTROL
FTII (FINE PICK-UP FUNCTION)
SUPER JECT AWT (AUTOMATIC WIRE THREADER)
LAN INTERFACE
USB PORT
