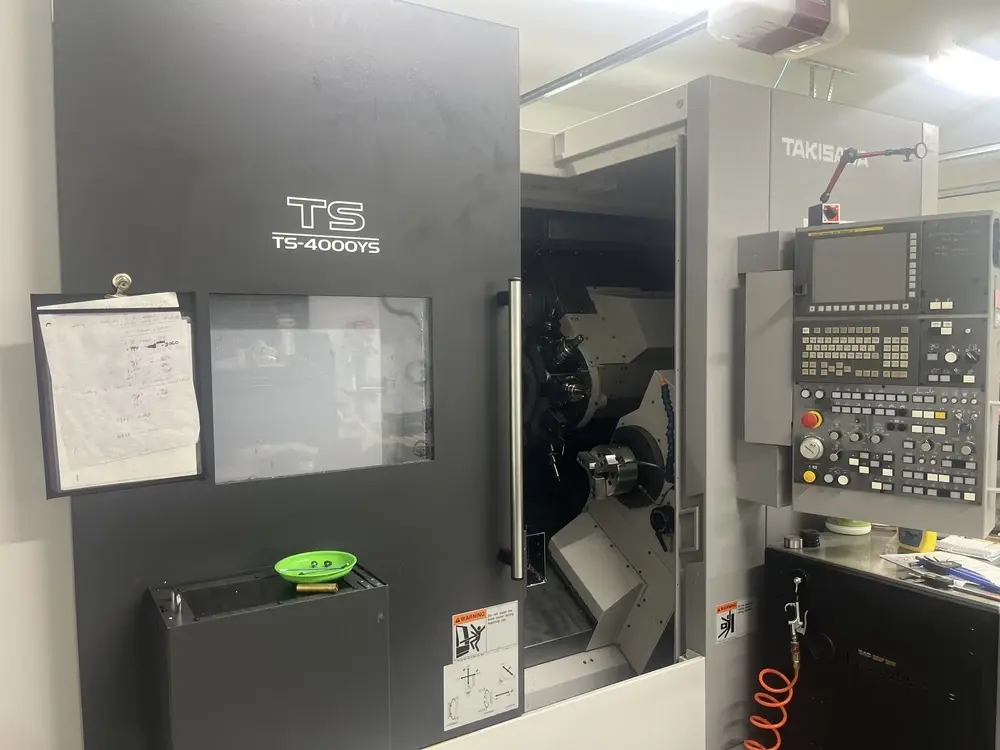

2019 TAKISAWA TS-4000YS
Have one to sell?
ConditionUsed
1 available
Used 5-Axis Lathe. Features: 10" chuck, 3" bar capacity, 23.62" swing, 14.57" turning diameter. Main spindle 4,200 RPM, sub spindle 6,000 RPM. Equipped with Fanuc control, auto tool presetter, chip conveyor.
Chuck Size 10"
Bar Capacity 3"
Swing 23.62"
Turning Diameter 14.57"
Spindle Speed 4,200 RPM
Distance Between Centers 29.53"
Turret 12 Station
Sub Spindle Speed 6,000 RPM
10″ 3-Jaw Kitagawa BB210 Chuck on Main Spindle
6″ 3-Jaw Kitagawa B206 Chuck on Sub Spindle

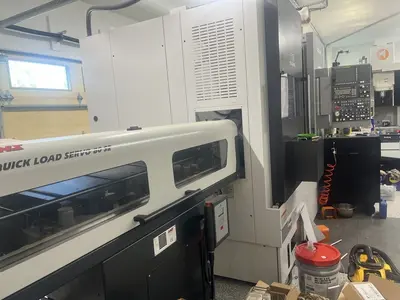

LNS Quick Load Servo 80 S2 Bar Feeder
Auto Tool Presetter
Sub Spindle
Control Fanuc
C-Axis Live Tooling, Y-Axis
Chip Conveyor
