2006 HAAS VF-2SS with 4th axis
Have one to sell?
ConditionUsed
1 available

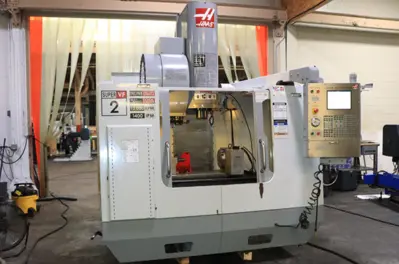

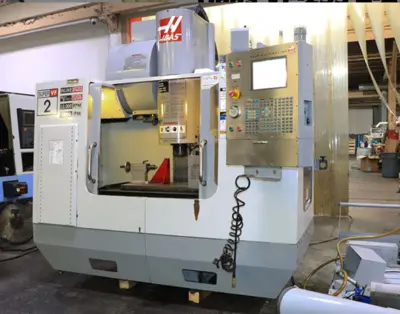

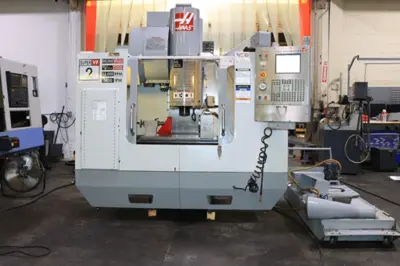

Used Vertical machining center with 30" x 16" x 20" axis travel, 12,000 RPM spindle speed, and 30 HP motor. Features include HAAS 4-axis control, rigid tapping, high-speed machining, and 24+1 tool changer. Comes with HRT 210H 4th axis.
X-AXIS TRAVEL .................... 30" 762mm
Y-AXIS TRAVEL .................... 16" 406mm
Z-AXIS TRAVEL .................... 20" 508mm
SPINDLE SPEED .................... 12,000 RPM
SPINDLE MOTOR .................... 30 HP
SPINDLE DRIVE .................... INLINE DIRECT DRIVE
SPINDLE TAPER .................... CT 40
TOOL MAGAZINE CAPACITY ........... 24 ATC
MAXIMUM TOOL DIAMETER/WEIGHT ..... 3.0" / 12 LBS
RAPID TRAVERSE RATES ............. 1400 IPM
TABLE SIZE ....................... 36" X 14"
TABLE LOAD CAPACITY .............. 1500 LBS
MACHINE DIMENSIONS: .............. 89" x 92" x 104"H
MACHINE WEIGHT: .................. 8,000 LBS
HAAS 4-AXIS CONTROL
RIGID TAPPING, QUICK CODE, ADV TOOL MANGEMENT
HIGH SPEED MACHINING, ENABLE DNC
4TH AXIS DRIVE & WIRING

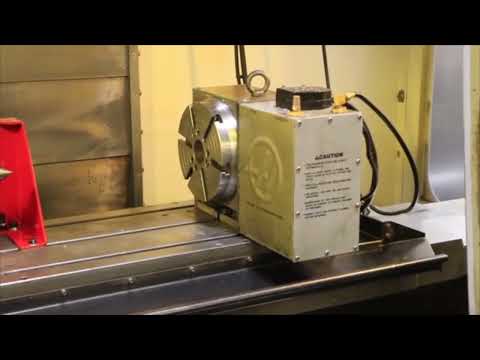

HAAS MODEL: HRT 210H 4TH AXIS ROTARY TABLE & TAILSTOCK
CHIP AUGER
PROGRAMMABLE COOLANT NOZZLE
COOLANT SYSTEM
24 + 1 TOOL SIDE-MOUNTED TOOL CHANGER
30 HORSE POWER SPINDLE MOTOR
