| X | 63" | 1,600.2 mm |
| Y | 31.5" | 800.1 mm |
| Z | 31.5" | 800.1 mm |
| Power | 35 hp | 26.1 kW |
| RPM | 6,000 RPM | 6,000 RPM |
| # ATC | 30 | 30 |
| Taper | CAT-50 | CAT-50 |
| Table-W | 31.5" | 800.1 mm |
| Table-L | 68.9" | 1,750.1 mm |
| # Axis | 3 | 3 |
| Control | CNC (Fanuc) | CNC (Fanuc) |
| Weight | 35200 lb | 35200 lb |
Table Capacity 4400 lb 1,995.80 kg

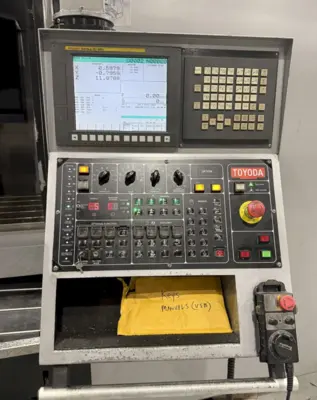

- Fanuc 0i-M CNC Control
- Data Server
- Ethernet Function
- USB Port
- Manual Guide i
- AI Contour Control
- (4) Y-Axis Box Ways
- 2-Speed Geared Head
- Spindle Chiller
- Coolant Thru Spindle
- Renishaw Probing
- Remote Hand Wheel
- Chip Conveyor

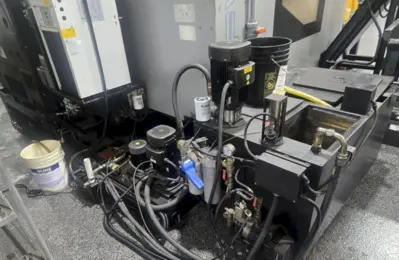

- High Pressure Coolant Unit
- Coolant Tank & Pump
-Coolant Thru Spindle
This equipment is currently unavailable. Similar equipment available now is shown below.
