2010 CITIZEN A20VII 2F7PL

Swiss Type Automatic Screw Machines
Manufacturer:
CITIZEN
Model:
A20VII 2F7PL
Year:
2010
Stock #:
X3X4099

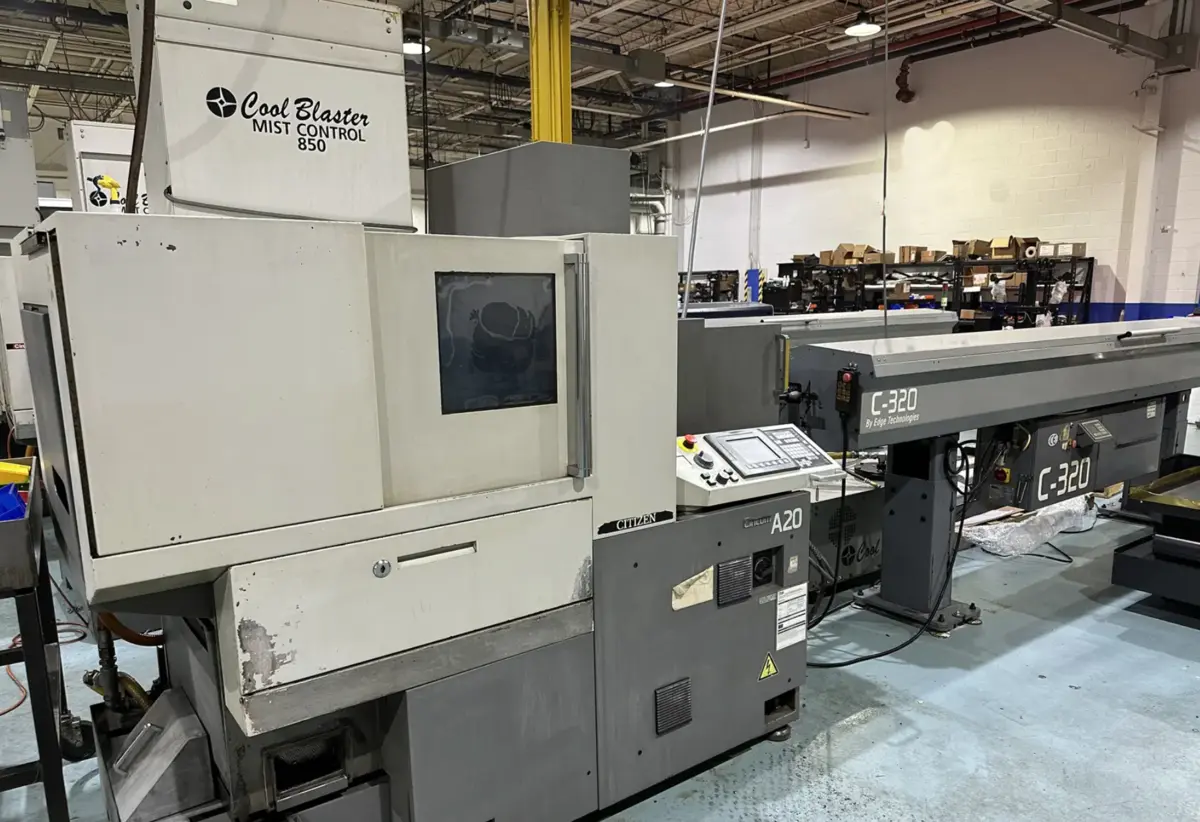

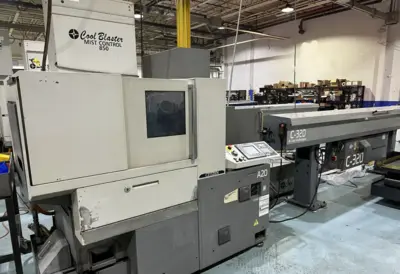

2010 CITIZEN A20VII 2F7PL available with a 1.2205" spindle hole, 5 hp, 8,000 RPM main spindle, and 5-axis capability. Equipped with Fanuc 32i CNC, Cool Blaster mist collector, and Edge Technologies bar feed. Compact at 8.5' x 5.8' x 6', 5,600 lbs.
Spindle Hole Dia1.2205"31.001 mm
Power5 hp3.7 kW
RPM8,000 RPM8,000 RPM
# Axis55
ControlCNC (Fanuc)CNC (Fanuc)
Dimensions8.5' x 5.8' x 6'8.5' x 5.8' x 6'
Weight5,600 lbs5,600 lbs

Machine Diameter: 3/4" (20 mm)
Machine Length: 6 1/2" (165 mm)
Front Drilling Diameter: 1/4" (10 mm)
Front Tapping Diameter: M8
Spindle Hole: 1 1/4" (31 mm)
Main Spindle Speed: 8,000 RPM
Live Tool RPM: 6,000 RPM
Chuck Dia (Back Spindle): 3/4" (20 mm)
Back Spindle Speed: 8,000 RPM
# of Tools Mounted: 21

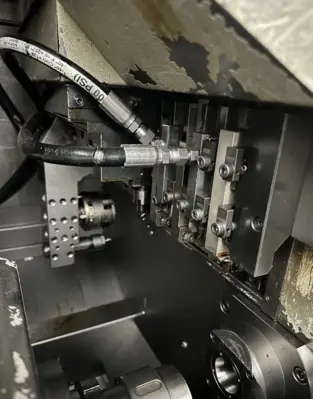

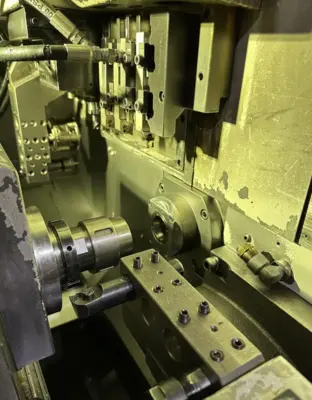

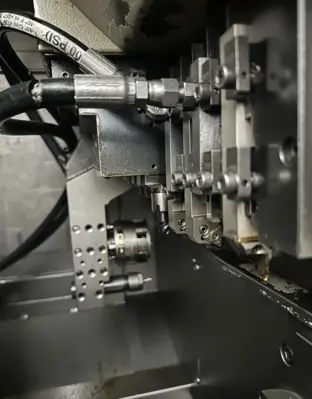

Turning Tools on the Gang Post: 5
Rotary Tools for Cross Machining: 4
Tools for Front Drilling: 4
Tools for Back Drilling: 8
Machine Dimensions: 8.5' x 5.8' x 6'
Machine Weight: 5,600 lbs

All specifications are approximate, provided for reference only, and not binding. Buyers are responsible for verifying all details. Inspection prior to purchase is welcome and encouraged.

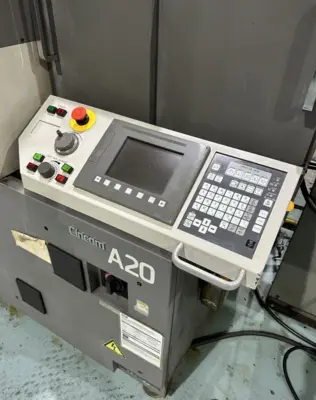

Fanuc 32i CNC Control

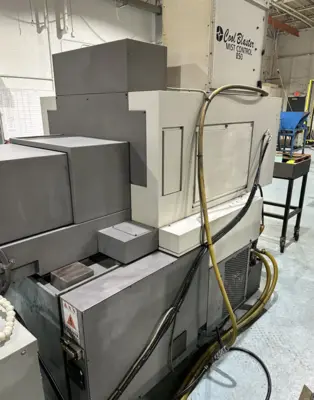

Cool Blaster 850 Mist Collector
Cool Blaster CB510 High Pressure Coolant System

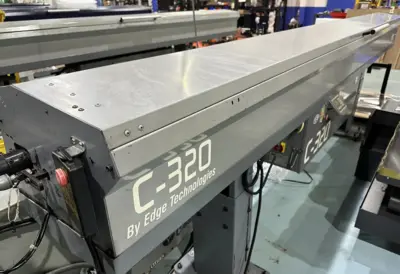

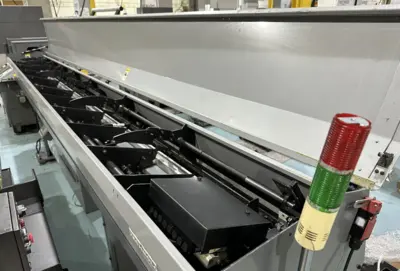

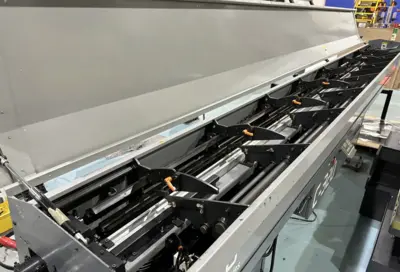

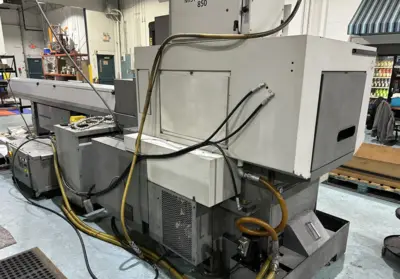

Edge Technologies C-320 Magazine Bar Feed (2010, s/n:C1200733072)
Lubrication System
(7) Tools
Ports
