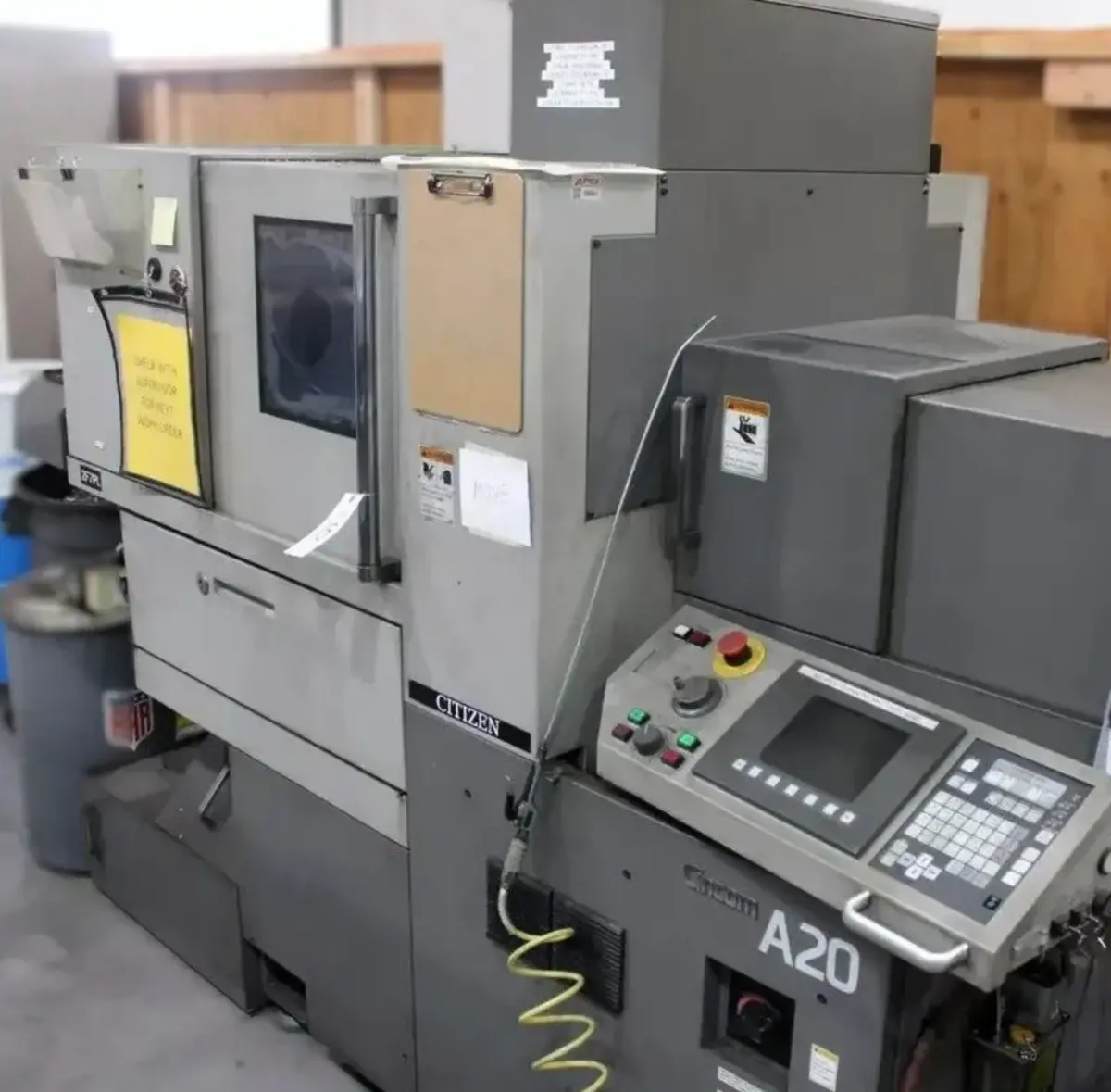

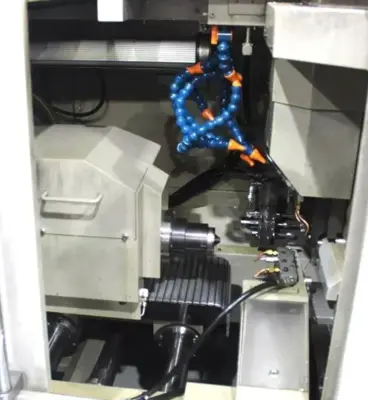

2009 CITIZEN A20VIIPL

Swiss Type Automatic Screw Machines
Manufacturer:
CITIZEN
Model:
A20VIIPL
Year:
2009
Stock #:
X3X4097
Used Swiss Type Automatic Screw Machine features 20 mm spindle hole, 8,000 RPM, Fanuc CNC Controls, live tools, sub-spindle, C-axis, and more. Equipped with a high-pressure coolant system, chip conveyor, and magazine bar feeder.
Spindle Hole Dia0.7874"20 mm
RPM8,000 RPM8,000 RPM
ControlCNC (Fanuc)CNC (Fanuc)

Max. Machining Diam. 20mm
Max. Machining Length 165mm/1 chucking
Main Spindle speeds 100-8000 RPM
Main Spindle Indexing Full C-axis (.001 Deg)
Back Spindle Speeds 100-8,000 RPM
Sub-Spindle Indexing Full C-Axis(.001 Deg)
Rotary Tool Speeds 6,000 Max. RPM
Back Spindle Max. Chucking Diam. 20mm
Turning Tools 5 Static on Main Slide
Rotary Live Tools 4 Live on Main Slide
Front Endworking Tools 4 Static
Back Endworking Tools 4 Static
Cutting Tool Shank/Sleeve Size 1/2" Square Shank
1" Diam. Sleeves
Rapid Traverse (X/Y/Z) 32mm/min X2, Y1,Z1
Z2 & 18 m/min on X1
Main Spindle Drive 5 HP/3 HP
Back Spindle Drive 2 HP
Rotary Tool Drive 1 HP

All specifications are approximate, provided for reference only, and not binding. Buyers are responsible for verifying all details. Inspection prior to purchase is welcome and encouraged.

Fanuc CNC Controls
(4) Live Cross Milling Spindles
Sub-Spindle
C-Axis on Main & Sub Spindles
Coolant System with Coolblaster high pressure pump
Parts Catcher
Synchronous Rotary Guide Bushing
Chip Conveyor
Mist collector
EDGE TECHNOLOGIES C-320 MAGAZINE FEED 12' BAR FEEDER

This equipment is currently unavailable. Similar equipment available now is shown below.
