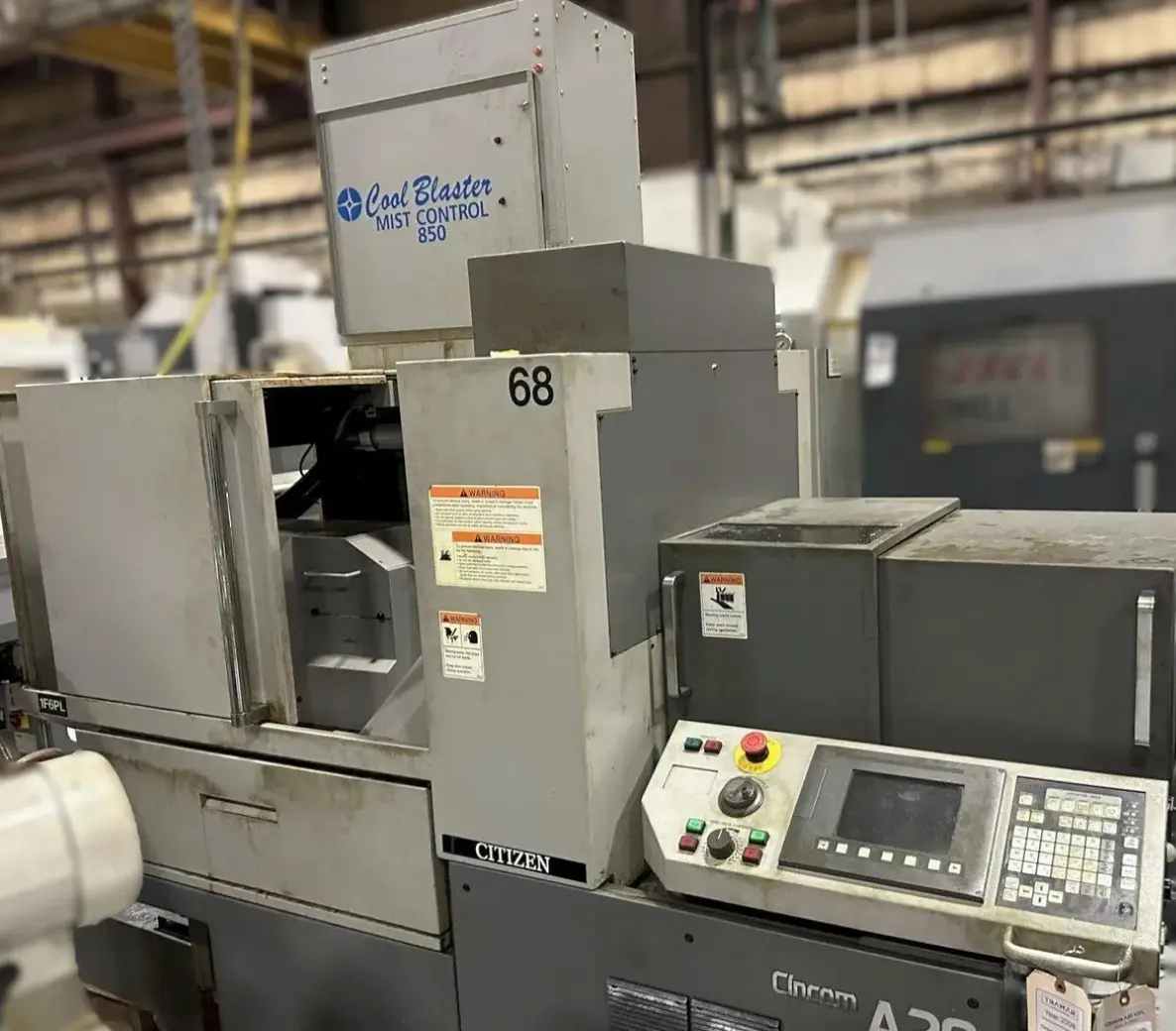

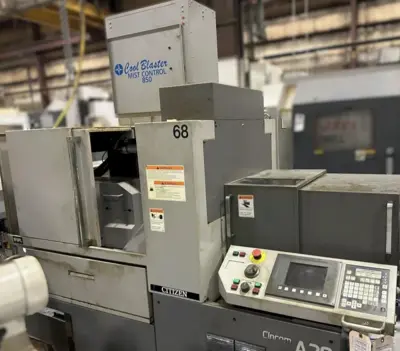

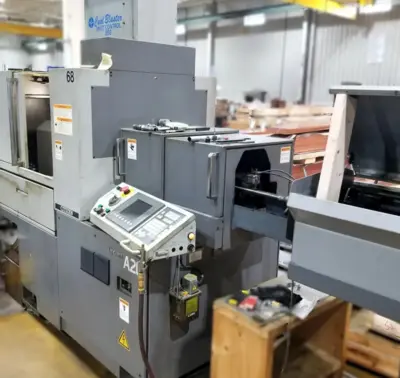

2006 CITIZEN A20VIPL
Have one to sell?
ConditionUsed
1 available
Swiss Type Automatic Screw Machine, used. Features 8,000 rpm spindle, 5 hp motor, live tooling, Y axis, and sub spindle. Includes Fanuc CNC, Edge Technologies C-320 bar feeder, LNS chip conveyor, coolant pump, and mist blaster.
Max Turning Length 6.49 in 164.85 mm
Turning Diameter 0.78 in 19.81 mm
Bar Capacity 1.22 in 30.99 mm
Spindle Speed 8,000 rpm 8,000 rpm
Main Motor 5 hp 5 hp
Live Tooling yes yes
Y Axis yes yes
Bar Feeder yes yes
Sub Spindle yes yes
Sub Spindle Speed 8,000 rpm 8,000 rpm
Max Frontal Drill Diameter 0.394" 0.394"
Max Drilling Diameter- Gang Rotary Tool 0.276" 0.276"
Number of Tools to be Mounted 21 21
'Turning Tools on Gang Tool Post 5 5
Cross Rotary Tools 4 4
Front Drilling Tools 4 4
Back Drilling Tools 8 8
Machine Weight 5500 lb 2,494.76 kg
- Fanuc CNC Control

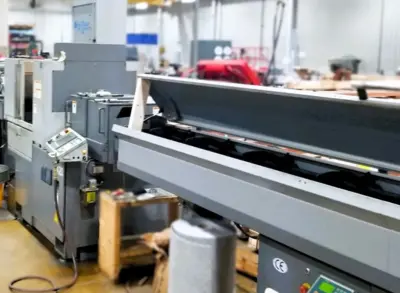

- Edge Technologies C-320 12ft Bar Feeder
- LNS Chip Conveyor
- Coolant Tank & Pump

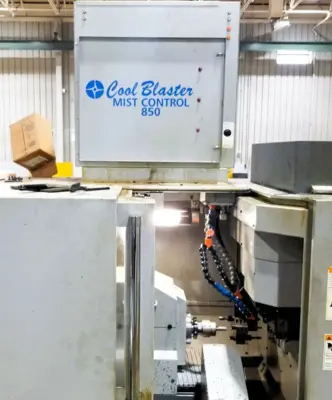

- Mist Blaster
