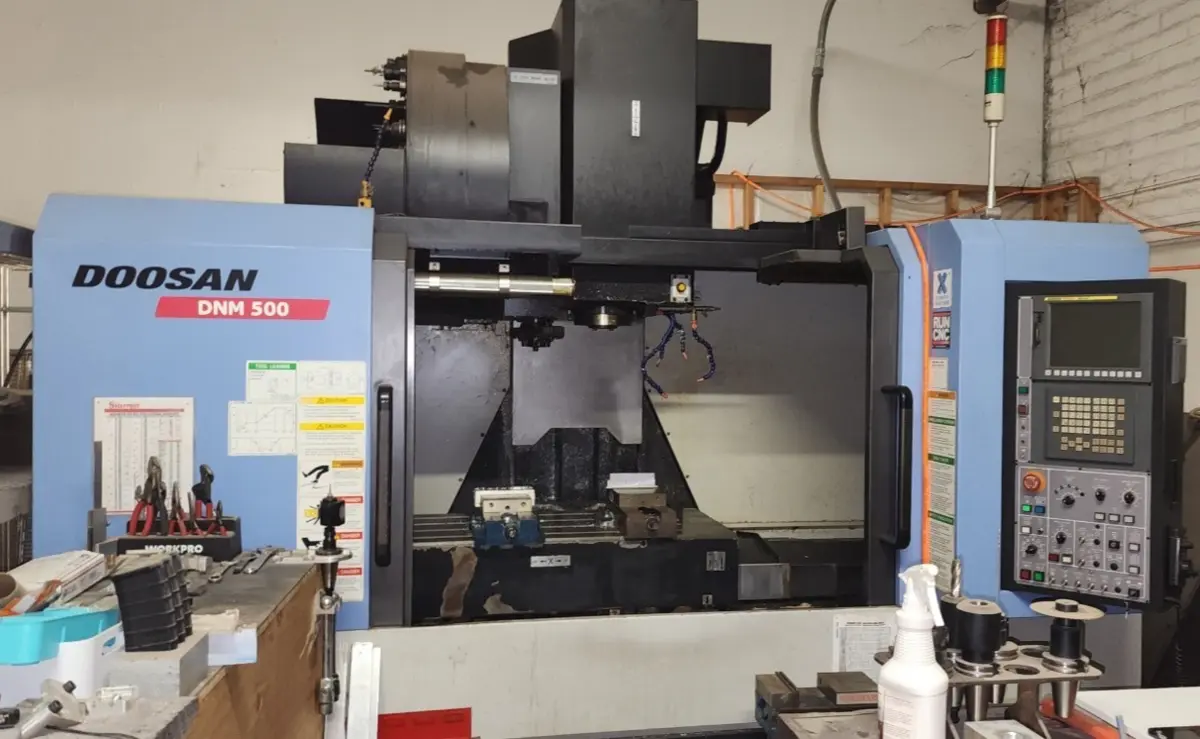

2012 DOOSAN DNM 500
Have one to sell?
ConditionUsed
1 available
X-Axis Travel 40" 1020mm
Y-Axis Travel 21.2" 540mm
Z-Axis Travel 20.1" 510mm

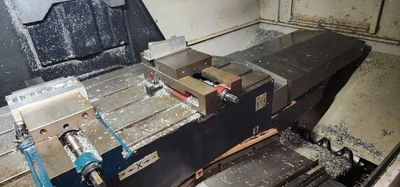

Table loading area 47.2" x 21.2" 1200 x 540mm
Table load capacity 1,764 lbs. 800 kg
SPINDLE
Spindle nose to table top 5.9" to 26" 150 to 660mm
Column to spindle center 23" 587mm
Spindle speed 8,000 rpm
AC Spindle motor (15 min) 20 HP 15 kW
Spindle torque (15 min) 154 ft-lbs 210 Nm
AUTOMATIC TOOL CHANGER
Number of Tools 30
Tool shank CAT-40
Max. Tool Dia. 3.15" 80mm
Max. Tool Length 11.8" 300mm
MOTION
X and Y axis rapid traverse rate 1,417 ipm 36m
Z axis rapid traverse rate 1,181 ipm 30m
Cutting feed rate .04 - 590 ipm 1 - 15,000mm
GENERAL POWER & SIZE
Power required 100 amp @ 220V 34 KVA
Voltage required - Fanuc 205-235 Volts 3 Phase
Coolant tank capacity 100 gal. 380 L
Machine height 104" 2630mm
Floor space required 134" x 89" 3400 x 2250mm
Machine weight 14,330 lbs. 6500 kg
Fanuc i Control
8,000 rpm spindle
Powerful 15 kW (20 hp) spindle Motor
Thru Spindle Coolant
30 Station ATC
CT-40 Taper
Color LCD display
Cartridge spindle design
High precision spindle with four angular contact bearings
Spindle orientation
Spindle speed override 10 – 150%
Rigid tapping
Custom Macro B (User Definable)
Fast 36m (1,417 IPM) Rapid Traverse rate
Metered piston distributor lubrication
Telescopic covers
Program and data protection key switch
Massive One-piece Meehanite cast iron
Large Linear Guides (Y, Z 45mm / X 35mm)
Servo motors mounted directly to the Oversized ball screws (X, Y and Z, 40mm)
Double Pre-tensioned ball screws
Flood coolant with large separate coolant tank
