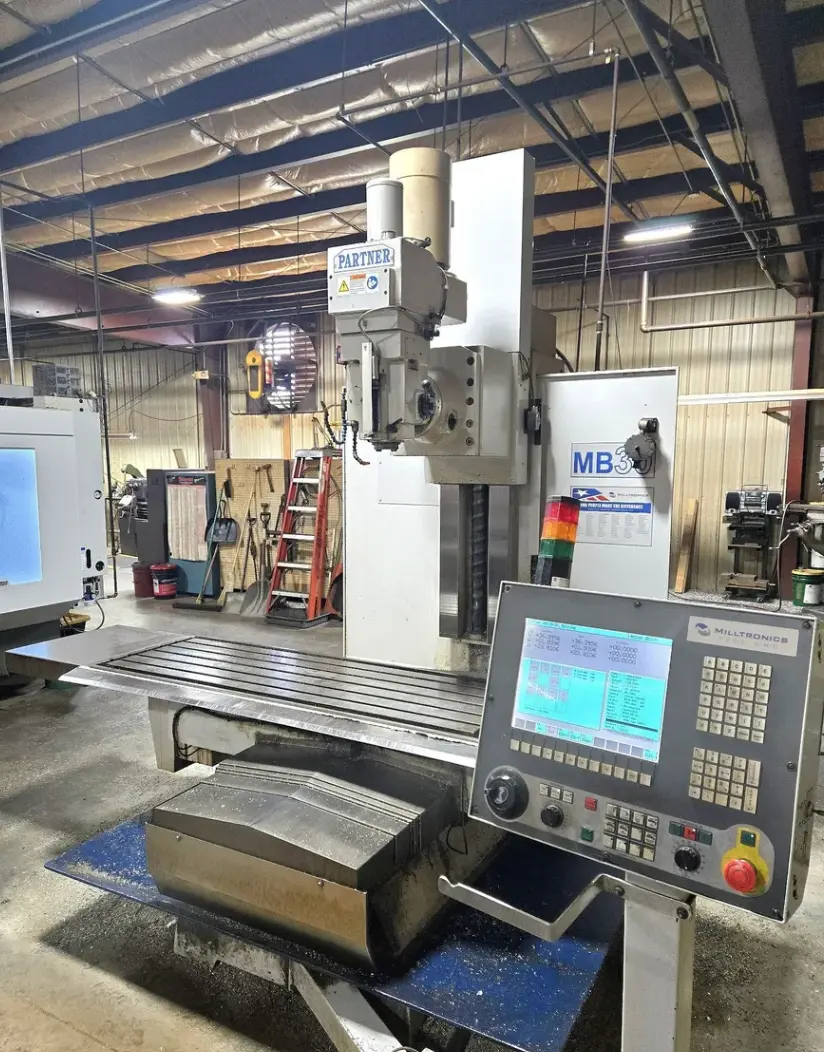

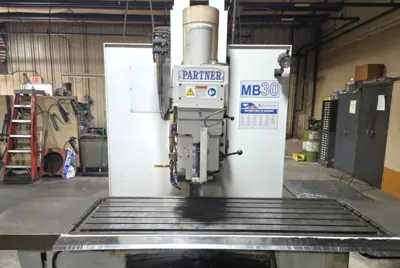

2018 MILLTRONICS MB-30
Have one to sell?
ConditionUsed
1 available

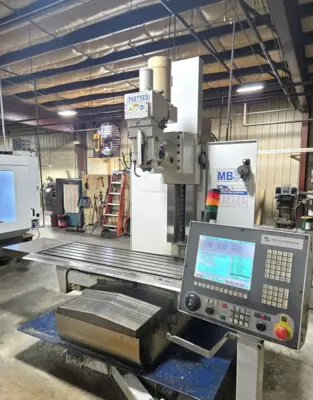

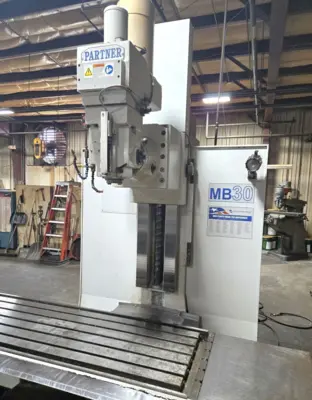

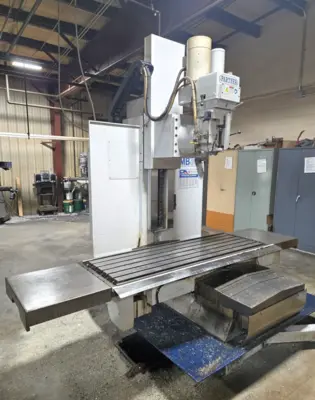

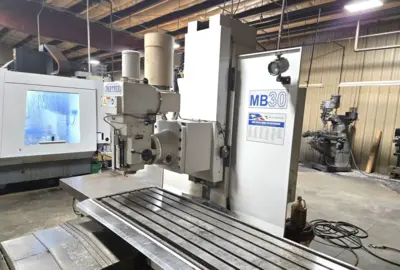

Vertical Machining Center, used, features a 73"x24" table, 4k RPM spindle, BT 40, and 1524x762x711 mm travel. Equipped with CENTURION 7200 CNC, manual quill, and auto lube. Comes with BT40 holders.
TABLE LENGTH 1,854.2 mm
TABLE WIDTH 609.6 mm
TABLE SIZE 73" x 24"
TABLE CAPACITY 1,587.6 kg
X-AXIS TRAVEL 1,524 mm
Y-AXIS TRAVEL 762 mm
Z-AXIS TRAVEL 711.2 mm
SPINDLE SPEED 4,000 RPM
SPINDLE MOTOR 11.2 kW
SPINDLE TAPER BT 40
RAPID TRAVERSE - X AXIS 12.7 m/min.
RAPID TRAVERSE - Y AXIS 12.7 m/min.
RAPID TRAVERSE - Z-AXIS 7.6 m/min.
APPROX MACHINE WEIGHT 4,535.9 kg
APPROX MACHINE DIMENSIONS 169" X 91"
Weight 10000 lbs
CENTURION 7200 CNC
6" MANUAL QUILL TRAVEL
BT 40 SPINDLE
LARGE ASSORTMENT OF MISC BT40 HOLDERS AND COLLETS
FULLY HARDENED & GROUND BOX WAYS WITH TURCITE
FULLY GROUND TABLE WITH PRECISION GROUND BALL SCREWS

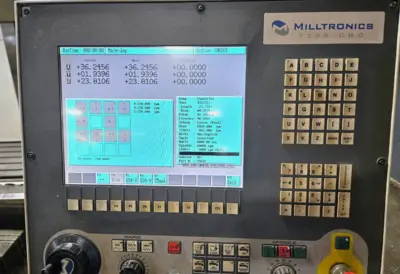

12" LCD ACTIVE MATRIX COLOUR DISPLAY C/W
TACTILE KEYS
OPERATES AS 3 AXES CNC, SIMPLE 2 AXIS OR
MANUAL MODE
DRIP PAN
SPINDLE FULLY PROGRAMMABLE TO 4000 RPM
METAL WAY COVERS IN FRONT & REAR SADDLE
AUTO LUBE SYSTEM

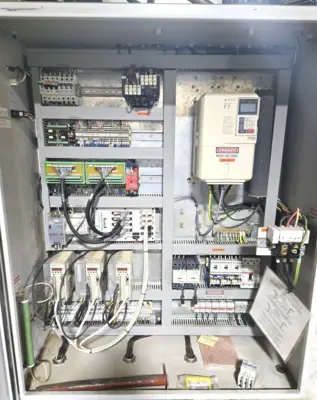

220/3/60 ELECTRICS (SINGLE PHASE AVAILABLE)

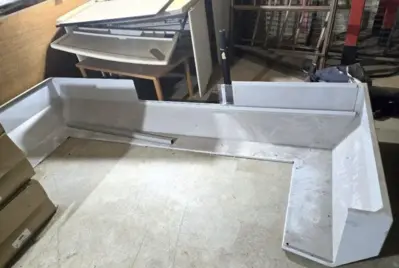

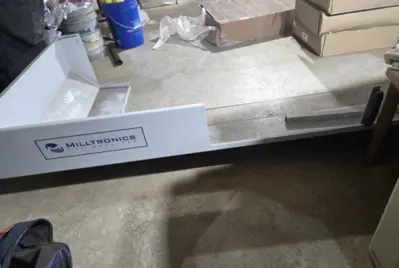

* COOLANT TRAY IS INCLUDED, NEVER INSTALLED (AS PICTURED)
