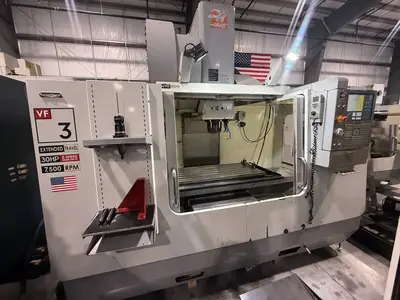

2007 HAAS VF-3YT/50
Have one to sell?
ConditionUsed
1 available

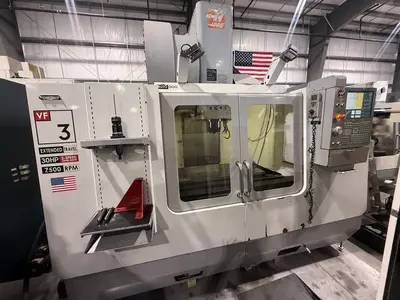

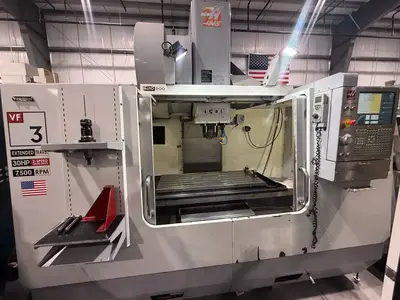

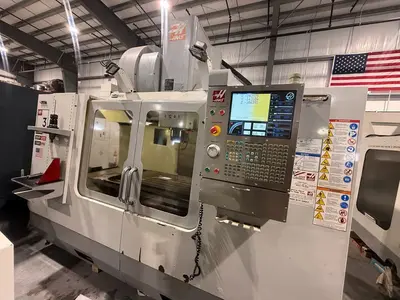

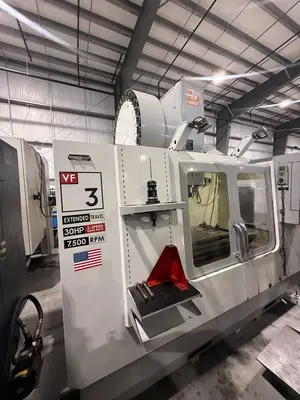

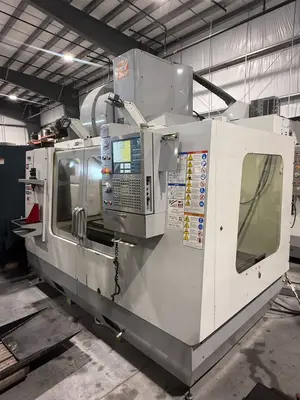

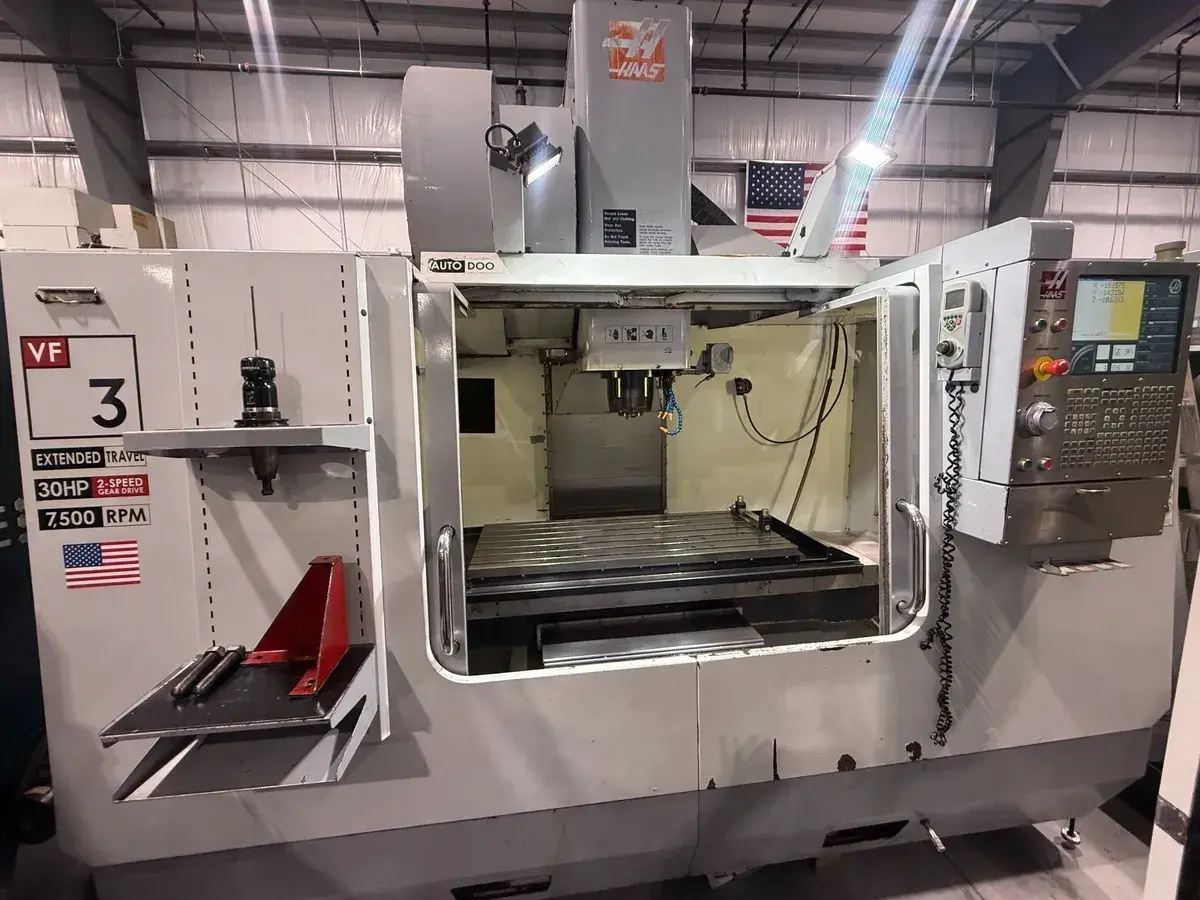

Used Vertical Machining Center with 30 hp, 7,500 RPM, and 40"x26"x25" XYZ. Features HSM, DNC, and Renishaw Probing. Equipped with four-axis CNC control, USB drive, and 30-tool capacity. Machine weight: 16,500 lbs. Dimensions: 124"x106"x109".

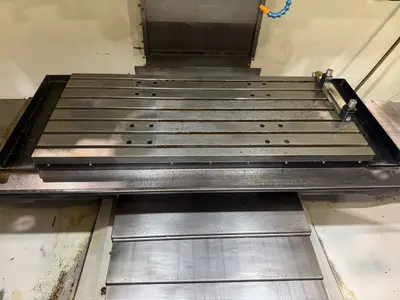

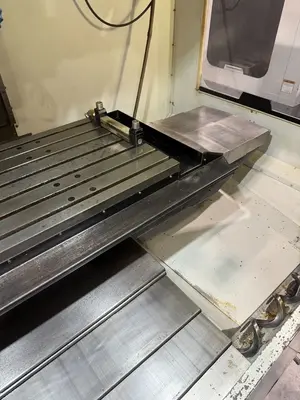

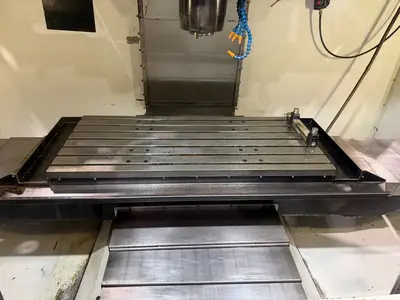

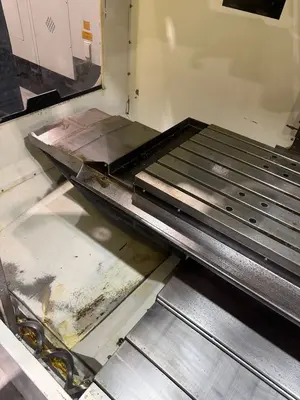

Table working surface- 23" x 52"
Maximum weight on table- 4,000 Lbs.
Minimum/Maximum distance, spindle nose to table- 7.9"/32.9"
Rapid traverse rate, all axes- 710 I.P.M.
Cutting feed rate, all axes- up to 500 I.P.M.
Maximum tool diameter- 4”
Maximum tool weight- 30 Lbs.

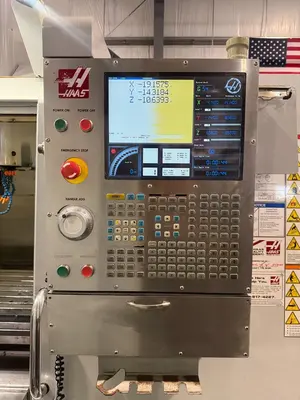

HAAS four-axis CNC control with manual pulse generator, USB drive (on pendant), RS-232 port
Control Options- HSM High Speed Machining, Rigid tapping, Rotation & Scaling, DNC, M19 Spindle Orient, Macros, Quick code, Pre-Orient Tap, Advanced tool management, Expanded memory

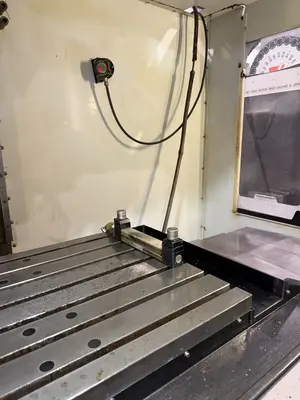

Renishaw Probing & Probe & Table Laser
2 Speed gear box option
All cast iron construction
Brushless servo amplifiers and servo motors on all axes
Prewired for the 4th axis

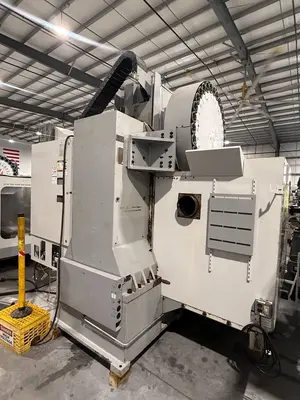

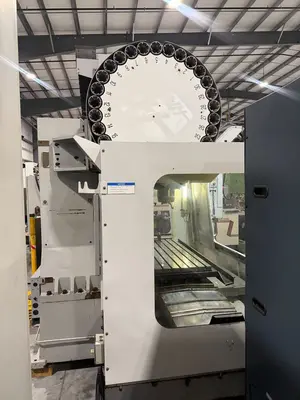

Side mount tool changer 30 tool capacity
Programmable coolant nozzle
Telescopic way covers
Auto Door option
High intensity lighting option
Automatic lubrication system

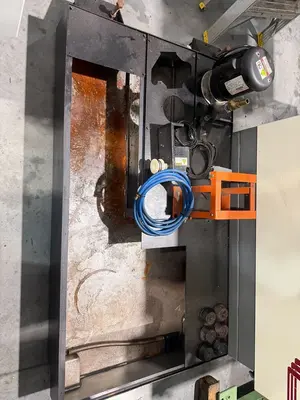

External coolant pump and tank
Chip auger

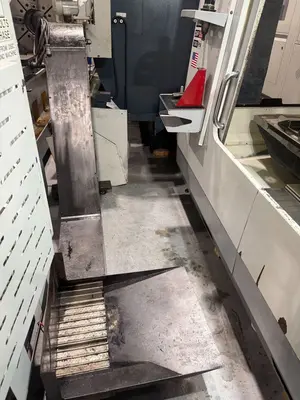

Chip conveyor
30 H.P. Vector spindle drive
Machine hours- Servo Time 2,708 Motion Time 21,775 Spindle Time 20,347
Machine is wired for 208 volt operation / 3 phase / 60 H.Z.
Machine weight- 16,500 Lbs.
Machine dimensions- 124” L x 106” W x 109’’ H
