2017 Mazak Integrex i-100 BARTAC-S 5-Axis CNC Lathe with Bar Feeder
Have one to sell?
ConditionUsed
1 available

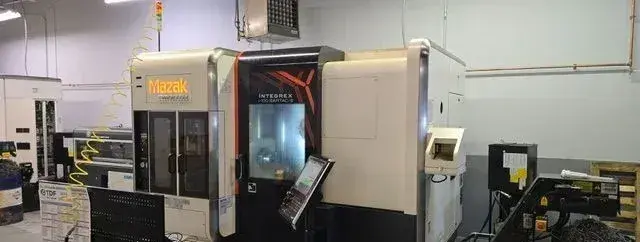

This 2017 Mazak Integrex i-100 BARTAC-S 5-axis CNC lathe pairs a 4" bar capacity and 4.4" spindle bore with an LNS Quickload S3 bar feeder, a 6" sub spindle, and a 72-station tool changer on a Mazatrol SmoothX control. It turns up to 19.67" in diameter over a 33.62" machining length, with an 8" main chuck at 2,000 RPM, a 12,000 RPM HSK 63 milling spindle, and 240° of B-axis travel.
X-Axis Travel: 17.72"
Y-Axis Travel: 8.27"
Z-Axis Travel: 35.59"
B-Axis Travel (Mill Spindle): 240°
Spindle Bore: 4.4"
Sub Spindle Chuck Size: 6"
Sub Spindle Max Speed: 6,000 RPM
Sub Spindle Motor: 15 HP (30 Minute Rating)
Milling Spindle Max Speed: 12,000 RPM
Milling Spindle Motor: 10 HP (20% ED Rating)
Voltage: 480V
6" Chuck Sub-Spindle

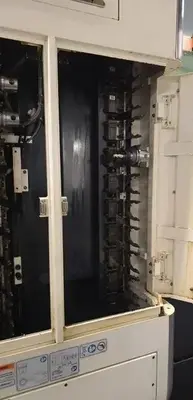

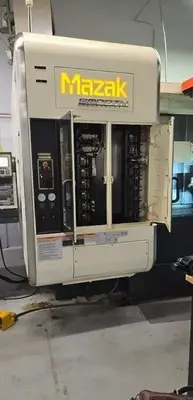

72 Station Tool Changer
HSK 63 Milling Spindle Tooling

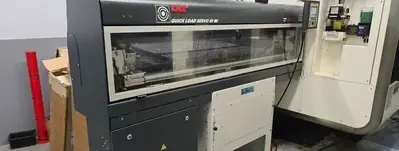

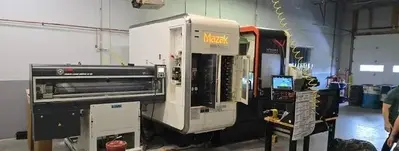

LNS Quickload S3 Magazine Barfeed
Renishaw Probing

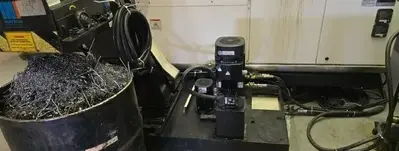

213 PSI High Pressure Coolant

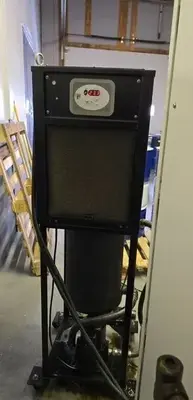

Coolant Tank and Pump

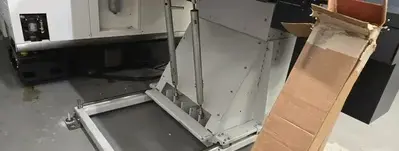

Parts Catcher

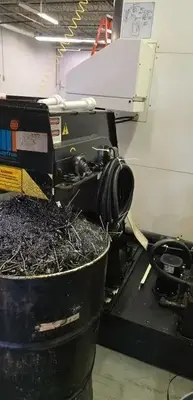

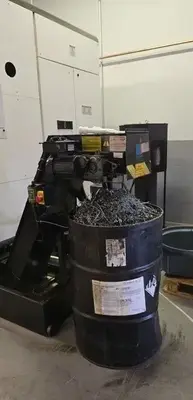

Chip Conveyor
Standard Type Turret Tool Holders and Blocks
This 2017 Mazak Integrex i-100 BARTAC-S 5-axis CNC lathe pairs a 4" bar capacity and 4.4" spindle bore with an LNS Quickload S3 bar feeder, a 6" sub spindle, and a 72-station tool changer on a Mazatrol SmoothX control. It turns up to 19.67" in diameter over a 33.62" machining length, with an 8" main chuck at 2,000 RPM, a 12,000 RPM HSK 63 milling spindle, and 240° of B-axis travel.
The Mazak Integrex i-100 BARTAC-S, also searched as Mazak Integrex i100 BARTAC-S, Integrex i-100 BARTAC S, Integrex i-100 Bartac, or Integrex i-100, is a 5-axis mill-turn center (multi-tasking lathe) with a B-axis milling head and a sub spindle.
It has 17.72" of X-axis, 8.27" of Y-axis, and 35.59" of Z-axis travel. The sub spindle reaches 6,000 RPM with 15 HP, and the milling spindle carries 10 HP. The machine comes equipped with Renishaw probing, 213 PSI high pressure coolant, a parts catcher, and a chip conveyor, and runs on 480V.
All specifications are approximate, provided by the seller, and subject to buyer verification.
Imperial
| Swing | 20.87" |
| Machining Length | 33.62" |
| Chuck Size | 8" |
| Bar Capacity | 4" |
| Power | 15 hp |
| Max RPM | 2,000 RPM |
| Turning Dia | 19.67" |
| Tailstock | No |
| Control | CNC (Mazatrol SmoothX) |
X-Axis Travel: 17.72"
Y-Axis Travel: 8.27"
Z-Axis Travel: 35.59"
B-Axis Travel (Mill Spindle): 240°
Spindle Bore: 4.4"
Sub Spindle Chuck Size: 6"
Sub Spindle Max Speed: 6,000 RPM
Sub Spindle Motor: 15 HP (30 Minute Rating)
Milling Spindle Max Speed: 12,000 RPM
Milling Spindle Motor: 10 HP (20% ED Rating)
Voltage: 480V
6" Chuck Sub-Spindle
72 Station Tool Changer
HSK 63 Milling Spindle Tooling
LNS Quickload S3 Magazine Barfeed
Renishaw Probing
213 PSI High Pressure Coolant
Coolant Tank and Pump
Parts Catcher
Chip Conveyor
Standard Type Turret Tool Holders and Blocks
