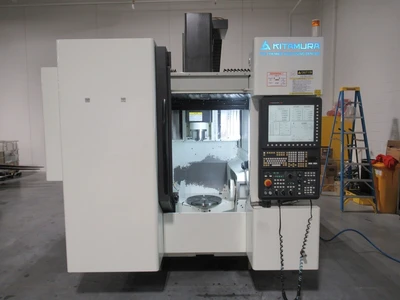

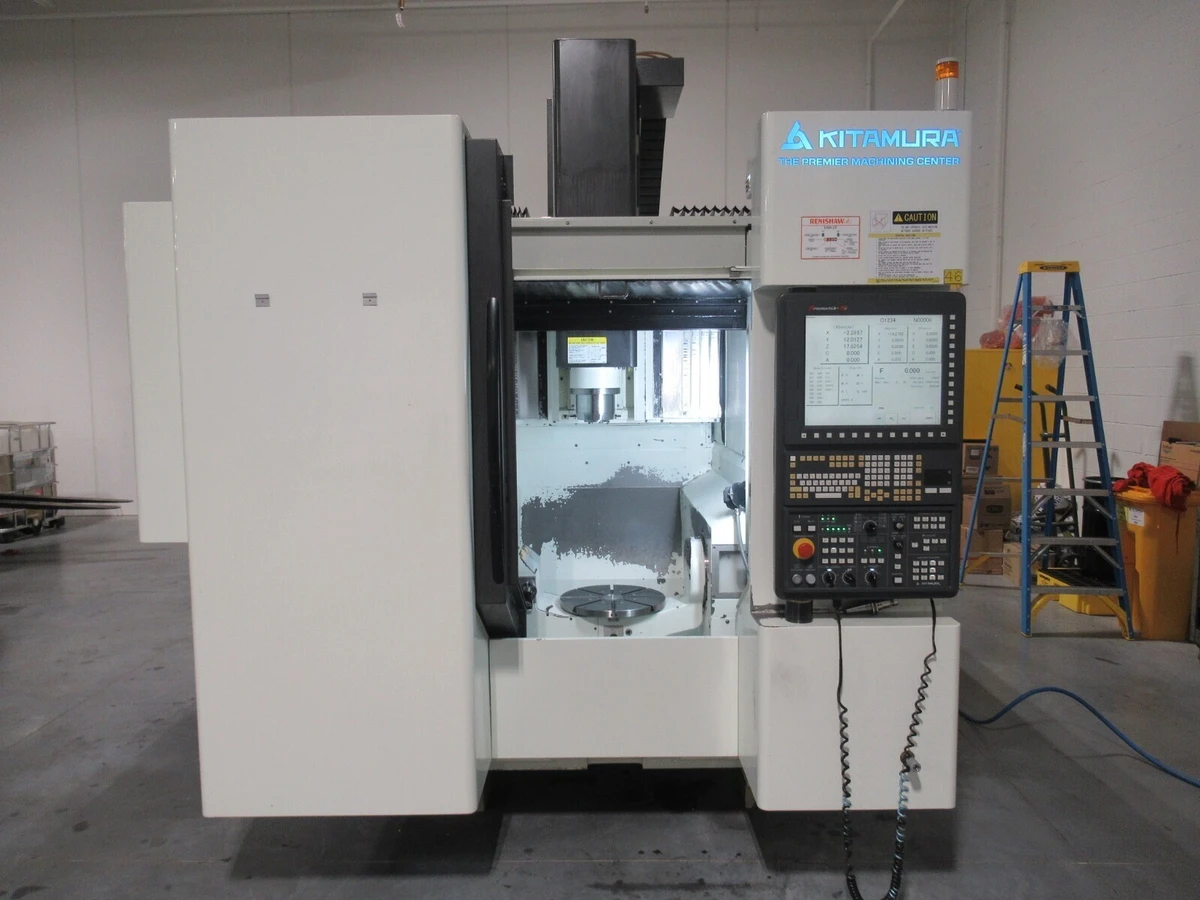

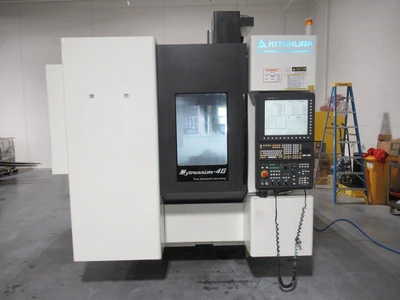

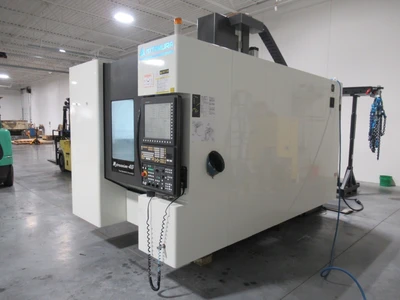

2016 KITAMURA MYTRUNNION-4G

5-Axis+ Vertical Machining Centers
Manufacturer:
KITAMURA
Model:
MYTRUNNION-4G
Year:
2016
Stock #:
X3X4055
Used 2016 KITAMURA MYTRUNNION-4G 5-Axis VMC: 24"x24"x19.6" travel, 15 hp, 15,000 RPM, 60 ATC, CAT 40 taper. Features Arumatik-Mi CNC, Renishaw probes, chiller, and thru spindle coolant with 441 lbs table capacity.
X24"609.6 mm
Y24"609.6 mm
Z19.6"497.84 mm
# Axis55
Power15 hp11.2 kW
RPM15,000 RPM15,000 RPM
# ATC6060
TaperCAT 40CAT 40
ControlCNC (Arumatik)CNC (Arumatik)

MACHINE TRAVELS X/Y/Z: X-AXIS - 24.02", Y-AXIS-24.02", Z-AXIS - 19.68"
A-AXIS 150°, C-AXIS - 360°
RAPID TRAVERSE X/Y/Z: (X&Y)-1968 IPM Z-984 IPM (A&C)-18,000 DEG/MIN

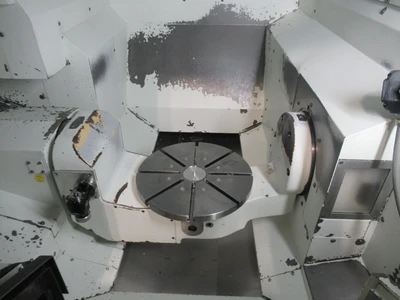

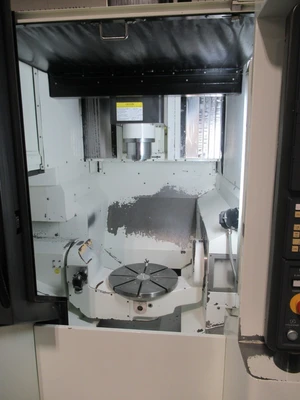

5-AXIS TABLE STYLE: TRUNNION
TABLE SIZE: 400MM

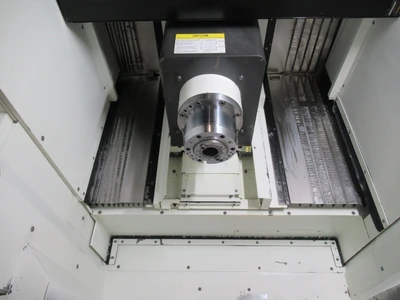

SPINDLE TAPER: CT40
SPINDLE SPEEDS: 40-15,000 RPM
SPINDLE DRIVE: AC 15 KW
TOOL CHANGER CAPACITY: 60 TOOLS
TOOL CHANGE TIME: 2.2 SEC
TABLE INDEXING: A,C AXIS .001°
TABLE CAPACITY: 441 LBS
DISTANCE FROM TABLE SURFACE TO SPINDLE NOSE A=0°: 5.91' - 25.6'

All specifications are approximate, provided for reference only, and not binding. Buyers are responsible for verifying all details. Inspection prior to purchase is welcome and encouraged.

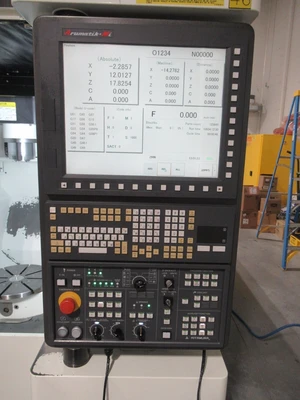

Arumatik-Mi CNC Control (Mitsubishi), 15,000 RPM Max Spindle Speed, Remote Jog Handle, 60 Station Automatic Tool Changer, Renishaw Tool and Parts Probes, Chip Conveyor, Built-In Daikin Chiller, Thru Spindle Coolant and Coolant System, Second Spindle, Machine Manuals, Keys, Manuals, Parameters.

This equipment is currently unavailable. Similar equipment available now is shown below.
