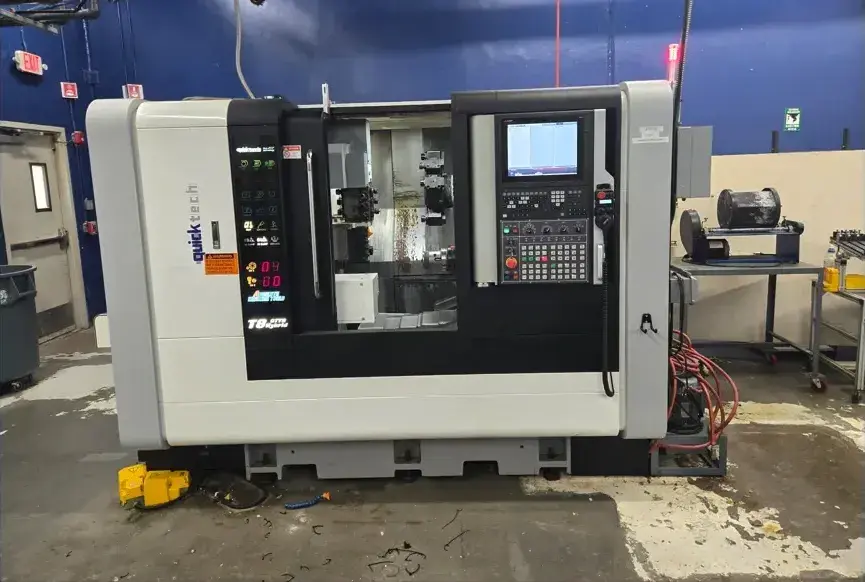

2022 Quick-Tech T8-HY 9-Axis CNC Lathe with B-Axis
Have one to sell?
ConditionUsed
1 available
This 2022 Quick-Tech T8-HY is a 9-axis twin spindle CNC lathe with C-axis on both spindles, pairing a 12-station BMT-55 power turret with 3.15" of Y-axis travel and a gang slide carrying 12 live tools on a 360° B-axis. The main spindle runs 14.75 HP up to 3,000 RPM with 2.56" bar capacity, 19.69" swing, and an 11.81" max turning diameter, while the sub spindle takes up to 1.65" bar.
Swing Over Cross Slide: 11.81"
Main Spindle Chuck: KK6-185E60B
Main Spindle Nose: A2-6
Main Spindle Bore: 2.60"
Sub Spindle Max Turning Diameter: 3.94"
Sub Spindle Bar Capacity: 1.65"
Sub Spindle Max Turning Length: 3.94"
Sub Spindle Chuck: KK5-173E42B
Sub Spindle Nose: A2-5
Sub Spindle Bore: 1.26"
Sub Spindle Max RPM: 4,000 RPM (6,000 RPM)
Sub Spindle Power: 4.96 HP (7.38 HP)
Slant Bed Angle: 75°
X1 / Z1 Travel: 5.91" / 14.96"
Y1 Travel: 3.15" (±1.57")
X2 / Y2 / Z2 Travel: 18.50" / 14.96" / 11.02"
Rapid Traverse: 1,181.10 IPM
Ball Screws: 1.26" Diameter x 0.39" Pitch
Linear Guideways: 1.38" (Y2 Axis: 0.98")
Turret Tool Holders: 0.98" Square / 0.98" Round / 1.26" Round
Gantry Tool Holders: 0.79" Square / 0.79" Round
X1 / Y1 / Z1 Servo Motors: 2.95 / 2.01 / 2.01 HP
X2 / Y2 / Z2 Servo Motors: 2.01 / 2.01 / 2.01 HP

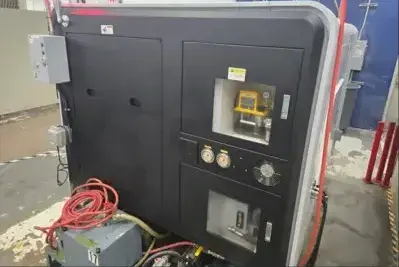

Hydraulic Pump: 1 HP, 10.57 Gallon Capacity
Hydraulic Pressure / Flow: 426.70 PSI / 3.17 GPM
Lubrication Pump: 25 W, 0.53 Gallon Capacity, 213.35 PSI Max
Coolant Pump: TPH4T5K, 72.52 PSI, 19.81 GPM
Coolant Tank Capacity: 63.40 Gallons

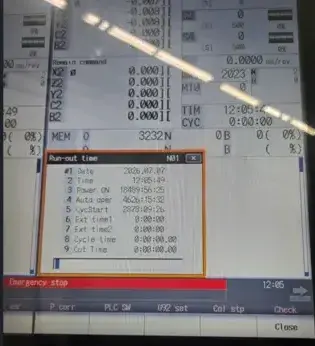

Approximately 18,489 Power On Hours
Approximately 2,878 Cycle Hours
Approximate Dimensions: 110.04" x 80.75" x 85.83" (Length With Chip Conveyor: 162.13")
Approximate Weight: 13,448.20 lbs
Y-Axis
Live Tooling
Sub Spindle

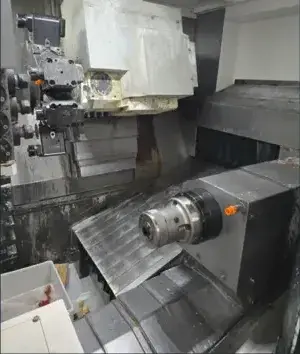

BMT-55 Power Turret (12 Stations)
Gantry Tool System (5 OD / 9 ID / 12 Live Tools)
High Pressure Coolant Pump (SF-30C, 362.59 PSI, 7.93 GPM)
