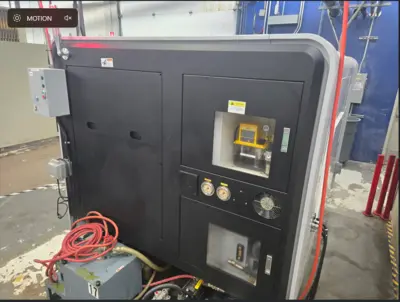

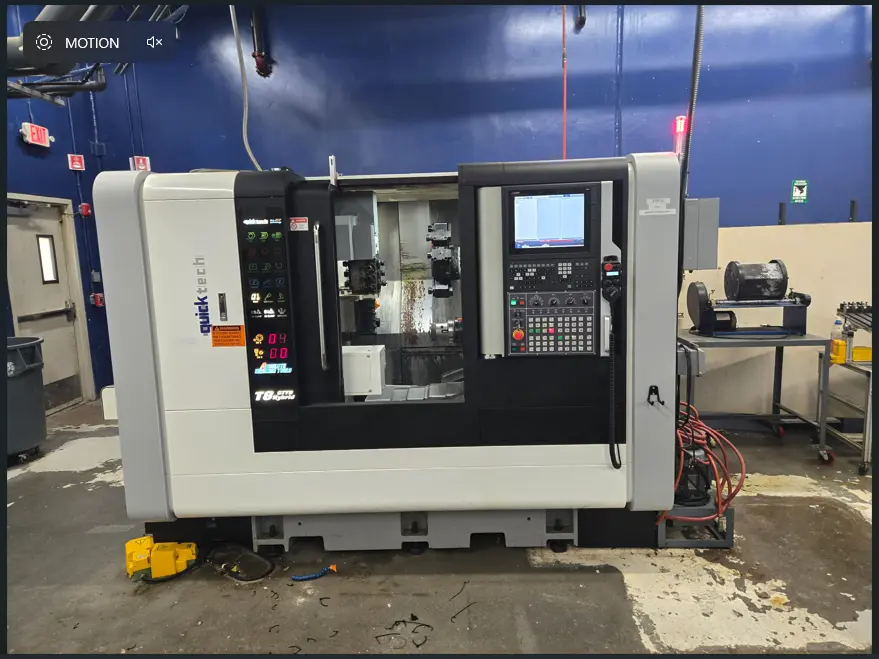

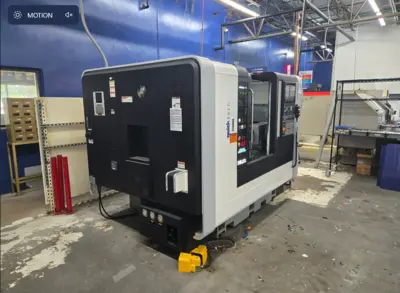

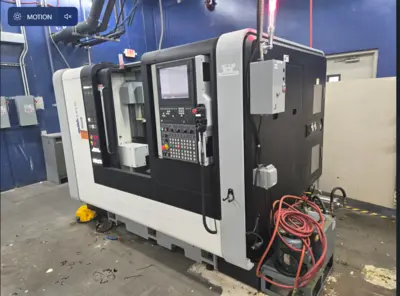

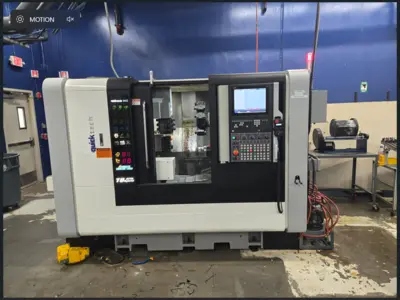

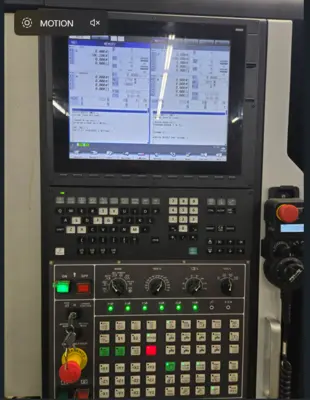

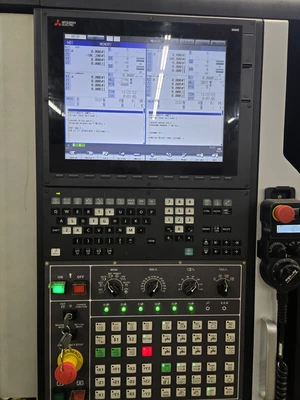

Used 2022 QUICK-TECH T8-HY | 5-Axis Lathes

Machine Type T8 Hybrid-Y

Main Spindle Capacity
Swing over Bed 500mm
Swing over cross slide 300mm
Max. Turning Dia. 300mm
Max. Bar Working Dia. 65mm
Max. Turning Length 200mm
Chuck Size KK6-185E60B
Main Spindle Nose A2-6
Main Spindle Bore 66mm
Max. RPM. 3000rpm

Sub-Spindle Capacity
Max. Turning Dia. 100mm
Max. Bar Working Dia. 42mm
Max. Turning Length 100mm
Chuck Size KK5-173E42B
Sub- Spindle Nose A2-5
Sub- Spindle Bore 32mm
Max. RPM.
4000rpm (6000rpm)

Tavel & Feed
Slant Bed Degree 75°
X1/Z1 Axis Travel 150mm / 380mm
Y1 Axis Travel 80mm = ±40mm
X2/Y2/Z2 Axis Travel
470mm / 380mm / 280mm

Axes
Ball screw Ø32 x P10
Linear Guide Way 35mm
Y2 Axis Linear Guide Way 25mm
Rapid Feed 30m/min

ATC System

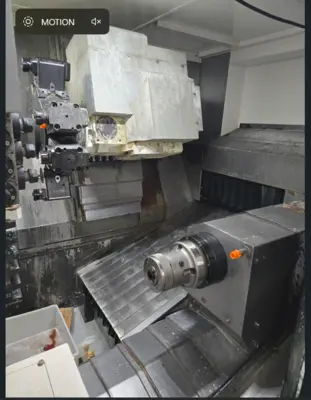

System 1 BMT-55 Power Turret
No of Tools 12
Tool Holder □25mm /  ○ 25mm / ○ 32mm
System 2 Gantry
No of Tools OD*5 / ID*9 / LiveTool*12
Tool Holder □20mm ○ 20mm

Motor
Main Spindle Servo Spindle 11kw
Sub Spindle Servo Spindle 3.7kw (5.5kw)
X1/Y1/Z1 Axis AC Servo 2.2 / 1.5 / 1.5kw
X2/Y2/Z2 Axis AC Servo 1.5 / 1.5 / 1.5kw

Hydraulic System
Pump Spec/Capacity 1HP / 40L
Hydraulic Pressure/ Flow 30 kg/cm² / 12L/min
Lubrication Pump Spce/Capacity 25W / 2L
Max. Pressure 15 kg/cm²

Coolant System
Pump Spec TPH4T5K, 5Bar, 75 L/min
High Pressure Pump Spec SF-30C, 25Bar, 30L/min
Coolant Tank Capacity 240L

Machine Size
Length without/with Chip Coveyor 2795mm/4118mm
Machine Width/Height 2051mm/2180mm
Machine Weight 6100 kg
