2025 HAAS ST-30 WITH HAAS V2 BARFEEDER
Have one to sell?
ConditionUsed
1 available

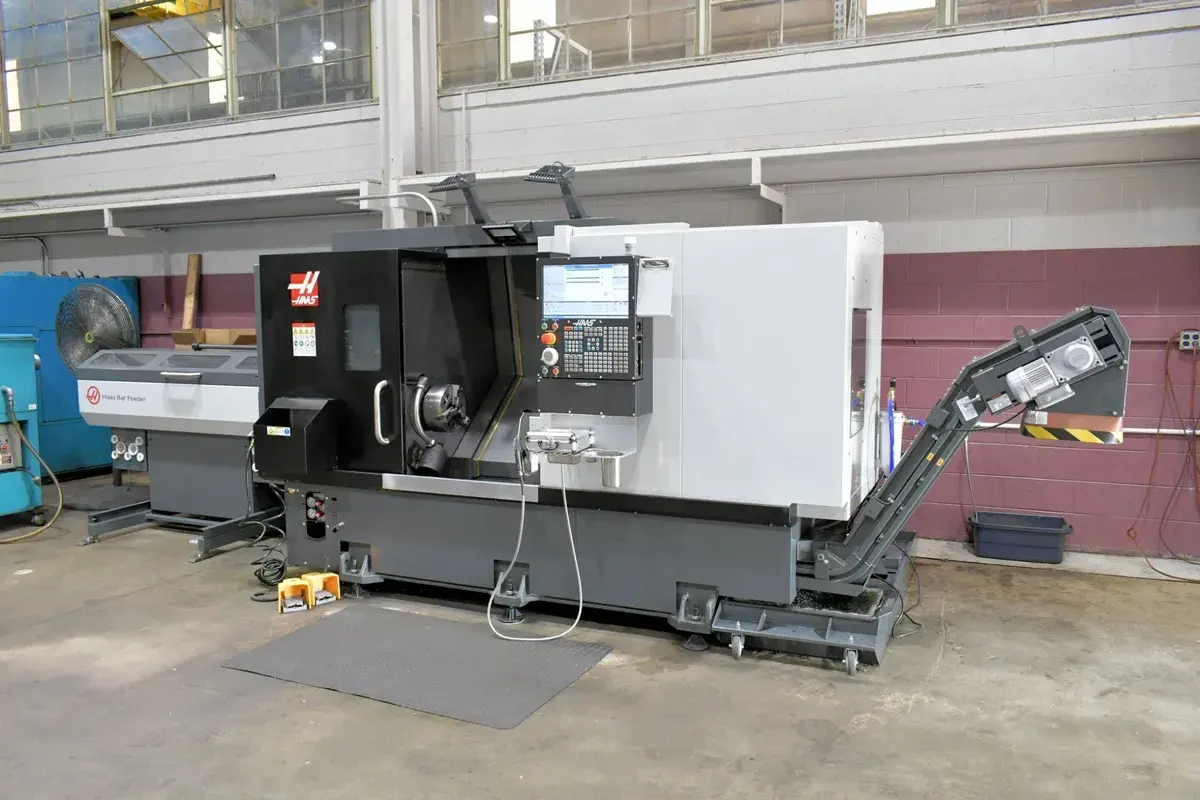

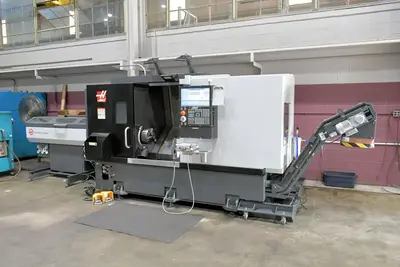

Used CNC Lathe with HAAS V2 Barfeeder. 31.75" swing, 26" machining length, 3" bar capacity, and 30 hp. Equipped with a 12-station turret, coolant system, tool presetter, and Ethernet interface for remote monitoring.
Chuck size: 10" hydraulic
Max. part swing: 21"
Max. cutting diameter: 15"
Max. cutting length: 32.5" (varies with workholding)
Bar capacity: 3"
X-axis travel: 9.4"
Z-axis travel: 32.5"
Rapid feed rates X & Z: 945 IPM
Max. thrust X: 4,100 LBF
Max. thrust Z: 5,100 LBF
Spindle nose: A2-6
Max speed: 3,400 RPM
Max torque: 300 FT-LBF @ 500 RPM
Spindle bore: 3.5"
Number of tools: 12
Boring bar rear clearance: 4"
Coolant capacity: 55 gallons
Air requirements: 100 PSI
Drive system: Direct speed, belt drive
Main motor: 30 H.P.
Voltage: 220 volt 3 phase
Dimensions: 171" x 90" x 98"
Weight: 10,900 LBS.
12 station BOT turret

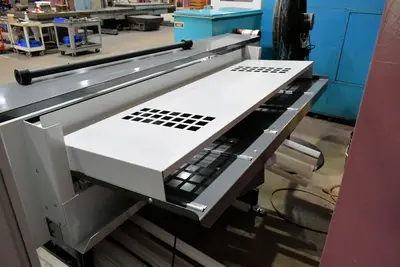

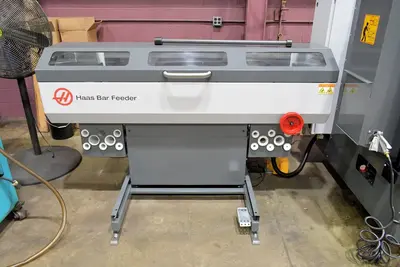

Haas V2 automatic barfeeder 0.375" to 3" bar capacity, 48" max bar length, 10" minimum bar length, (30) 1" bar tray capacity
Programmable Hydraulic Tailstock

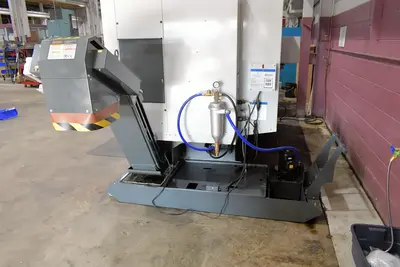

Key arrow belt type motorized discharge chip conveyor
Haas coolant sanitizer
55-Gallon coolant tank capacity
Single stage coolant pump
Automatic tool presetter
Rigid tapping
Parts catcher
CNC control cabinet cooler
24V high intensity lighting
1GB standard program memory
Visual part programming system
User-definable macros
Early power failure detection module
Ethernet interface
Haas Connect: remote monitoring
HaasDrop
Media display M-code; M-130
Phone charging stand
Safe run
Power surge protection
