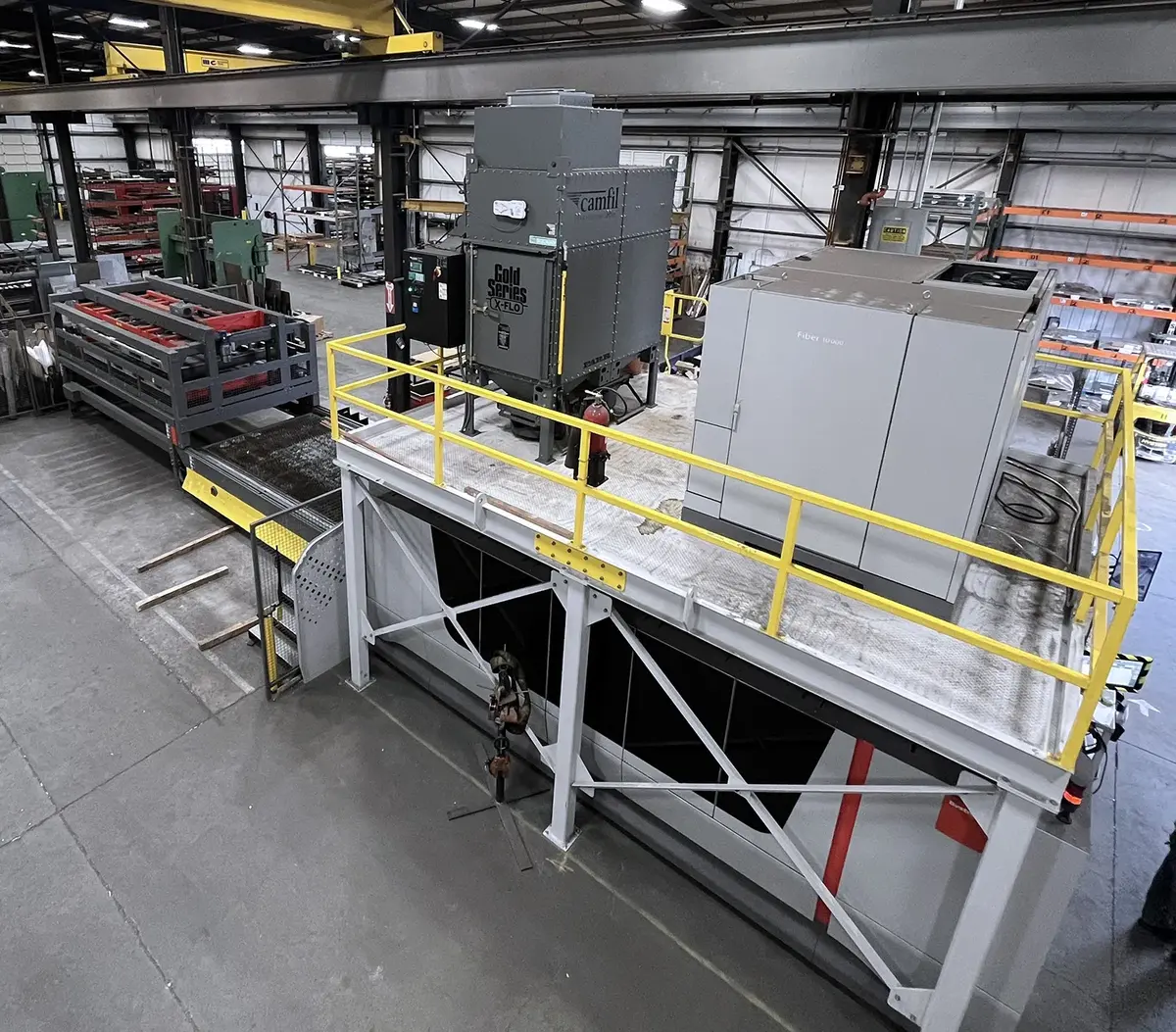

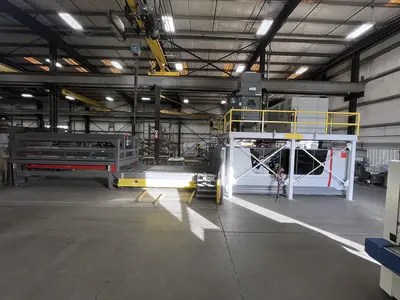

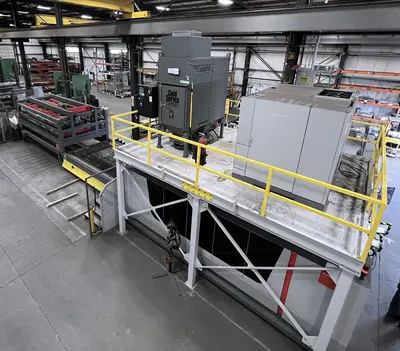

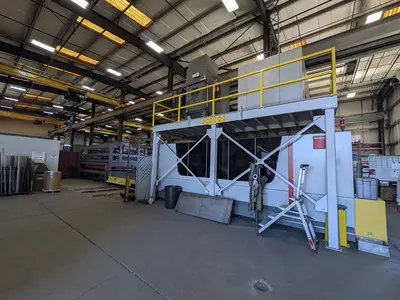

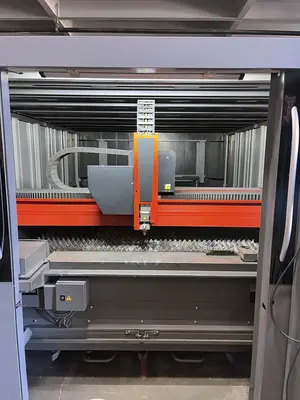

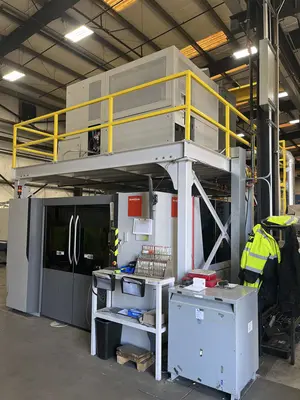

2021 BYSTRONIC BySmart Fiber 4020

Working Area: 13.1' X 6.6'
Laser Source Power: 10 KW
Wavelength:1060-1080 Nm
Model:ByTrans 4020 Extended

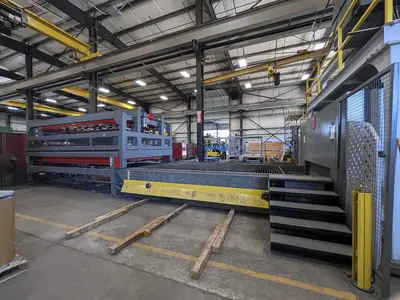

Function:Automatic Sheet Loading/Unloading
Mild Steel:1" (25 Mm)
Stainless Steel:1.5" (40 Mm)
Aluminum:1.25" (30 Mm)
Brass:0.63" (16 Mm)
Cooper:0.5" (12 Mm)
Sheet Capacity:157" X 79" (4000 X 2000 Mm)
Bed Size:13.1' X 6.6'
Max Sheet Weight:3300 Lbs (1500 Kg)
Max Load Height (ByTrans):
Approximately 10-12" Stack
Maximum Positioning Speed:Up To 5,500 IPM
Table Change Time:Approx. 27 Seconds
Z Axis Travel:3.9"
Motion System:
Simultaneous Positioning Speed:Up To 554 In/Min (140 M/Min)
Axis Acceleration:Up To 1.5 G
Positioning Accuracy:±0.004" (±0.1 Mm)
Repeatability:±0.0016" (±0.04 Mm)
Source Type:Fiber Laser
Power:10000 Watts
Efficiency:40–50% Wall-Plug Efficiency
Cooling:Integrated Chiller
