2016 OKUMA LB3000EXII-MYW
Have one to sell?
ConditionUsed
1 available

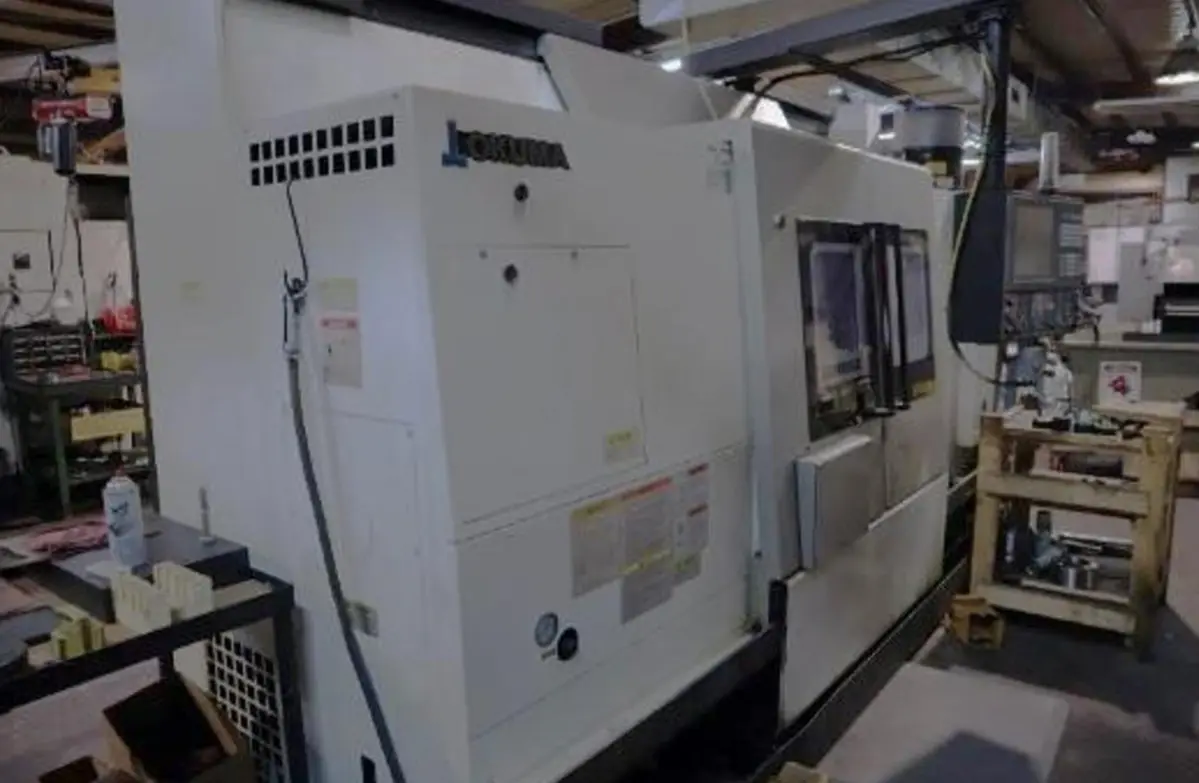

5-axis lathe with live milling, full C-axis rotation, Y-axis capability, and Okuma OSP P300LA control. Features 12 position turret, 40 HP main spindle motor, and high-pressure coolant. Equipped with a chip conveyor.
Chuck Sizes Main / Subspindle 10" / 6" Hydraulic Chucks
Maximum Swing 22.83"
Maximum Turning Diameter 13.39"
Maximum Cutting Length 31.5"
Center distance 42.72"
Maximum Bar Capacity 3.18"
X-Axis Travel 10.24"
Y-Axis Travel 4.53" (+2.76" / -1.77")
Z-Axis Travel 39.76"
C-Axis Rotation .001 Degrees Full C
Main Spindle Nose / Bore A2-8" / 3.59"
Subspindle Bore 2.44"
Main Spindle Motor 40 HP
Subspindle Motor 15 HP
Main & Subspindle Speeds 4,200 RPM / 6,000 RPM
Milling Spindle Motor 15 HP
Milling Spindle Speed 6,000 RPM
Number of Turret Positions 12 Position Turret
Live Milling/Drilling Capability
Full C-Axis Spindle Rotation
Y-Axis Capability
Chip Conveyor
Tool Pre Setter
10" 3 Jaw Hydraulic Chuck on Main Spindle
6" 3 Jaw Hydraulic Chuck on Sub Spindle
Big Bore Spindle with 3.59" Bore and 3.18" Bar Capacity
High Pressure Coolant
C Axis Synchronization
Off Center Turning Function
Rapid Traverse Override Switch
Thread Start Point Offset
Helical Cutting for MY
Machine Control Okuma OSP P300LA Control
