2014 MIKRON HEM-500U
Have one to sell?
ConditionUsed
1 available

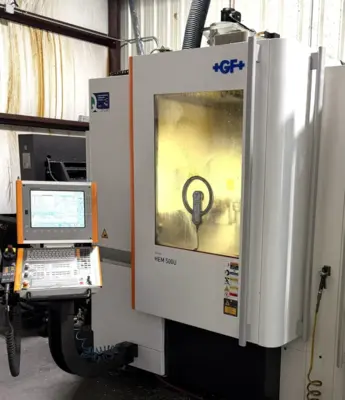

2014 MIKRON HEM-500U, equipped with HEIDENHAIN iTNC 530 FS CNC, 5-axis, and HEM rotary tilting table. 20,000 RPM spindle, 40-tool ATC, 300 PSI coolant, RENISHAW probing, BLUM laser tool setter, used for cutting 416 stainless steel, 10,911 hours.

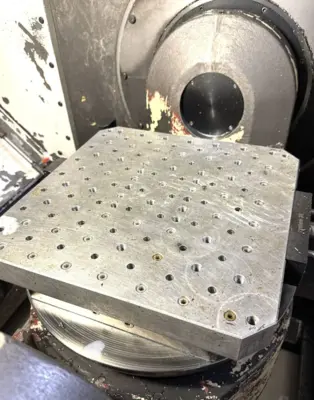

PLATTER DIAMETER 500.13 mm
TABLE LOAD CAPACITY 299.8 kg
NUMBER OF PALLETS 5
X-AXIS TRAVEL 500.13 mm
Y-AXIS TRAVEL 449.83 mm
Z-AXIS TRAVEL 400.05 mm
A-AXIS (TILT) TRAVEL –65° / +110°
C-AXIS (ROTATION) TRAVEL 360°
SPINDLE SPEED 20,000 RPM
SPINDLE MOTOR 22.4 kW
SPINDLE TAPER CAT 40
TOOL CAPACITY (ATC) 30
RAPID TRAVERSE RATE
Dimensions 105" x 128" x 123"
Weight 14,330 lbs

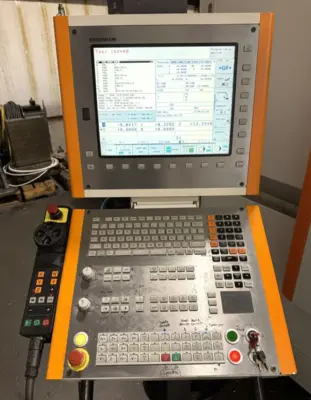

HEIDENHAIN iTNC 530 FS CNC CONTROL
5-AXIS (3+2)

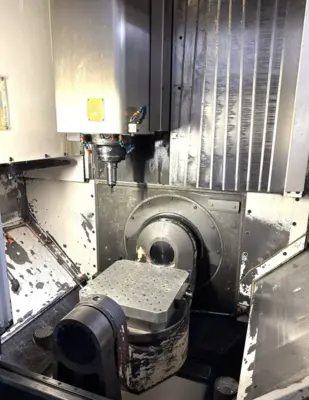

HEM ROTARY TILTING TABLE

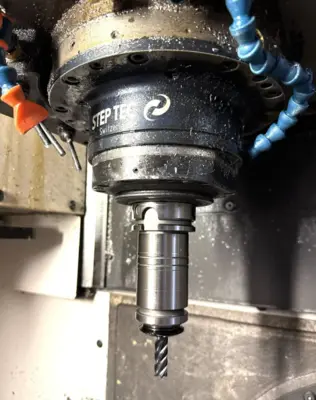

20,000 RPM SPINDLE
40 POSITION AUTOMATIC TOOL CHANGER
THROUGH SPINDLE COOLANT (300 PSI)
RENISHAW WIRELESS INTUITIVE PROBING SYSTEM
BLUM LASER TOOL SETTER
OIL MIST SPRAY
MPG HANDWHEEL CONTROL
SPINDLE CHILLER
AUTOMATIC LUBRICATION SYSTEM
COOLANT TANK
COOLANT FILTRATION SYSTEM

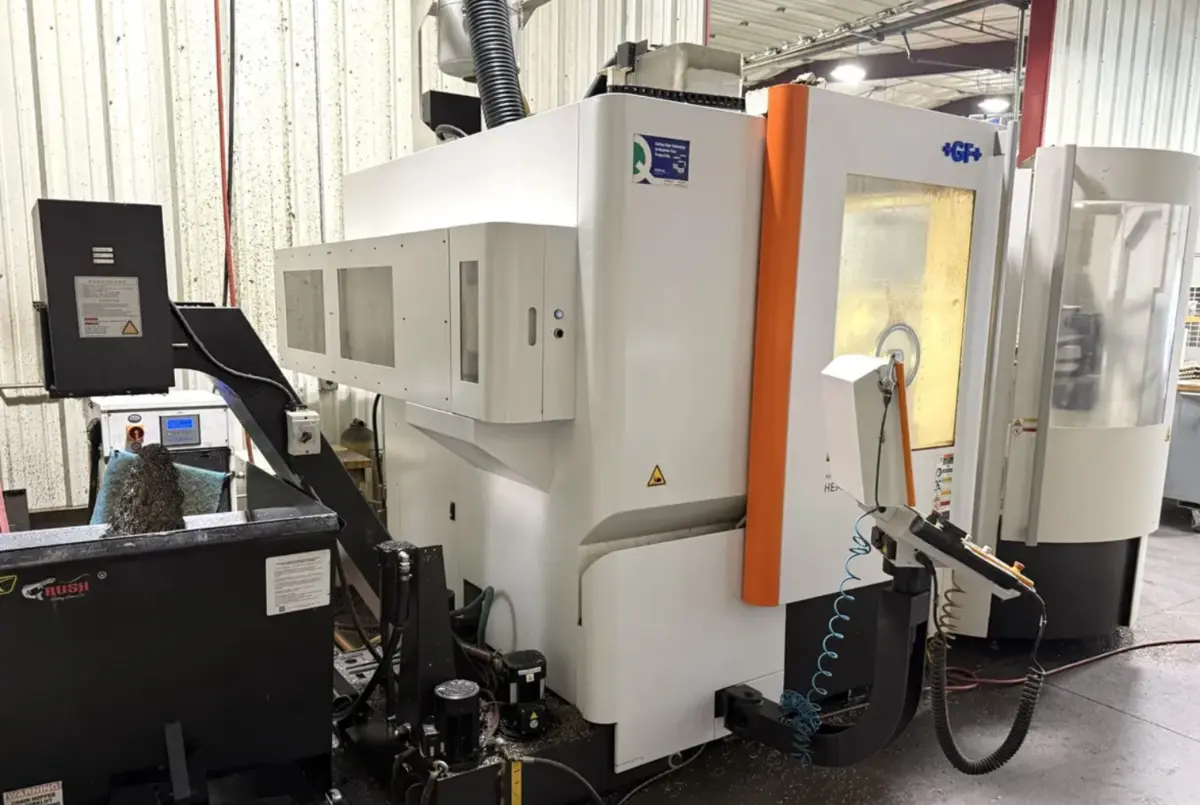

CHIP CONVEYOR
** MACHINE CUTTING PRIMARILY 416 STAINLESS STEEL
** AS OF JUNE 3, 2026 - TOTAL UTILIZATION TIME: 10,911 HOURS
