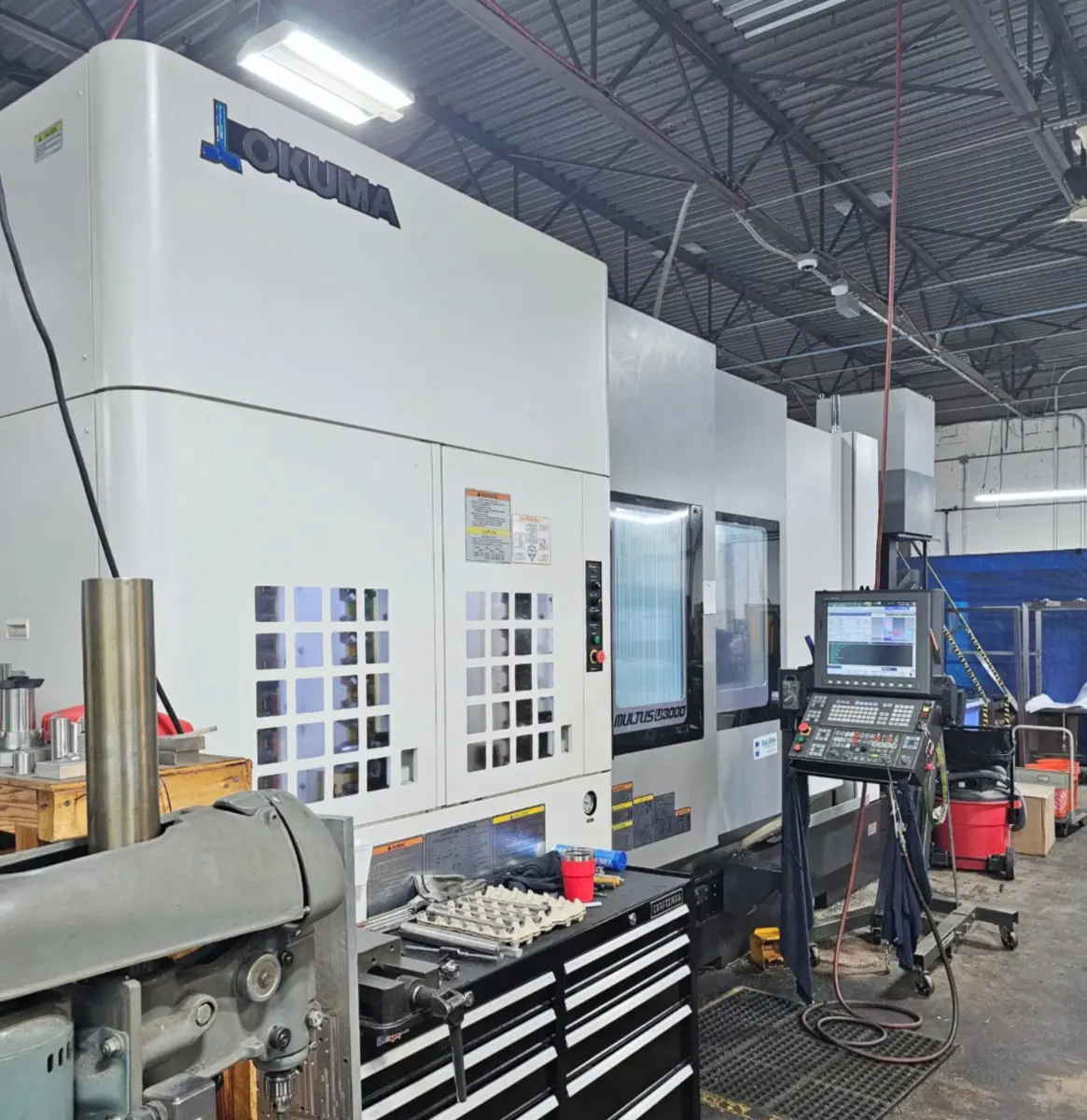

2021 OKUMA MULTUS U3000 2SW /1500
Have one to sell?
ConditionUsed
1 available
Used 5-Axis Lathe. Swing over bed 649.99 mm, max cutting length 1500.1 mm, 22.4 kW spindle motor. Features include THINC control, 12,000 RPM B-axis, chip conveyor, mist collector, advanced gauging, and coolant system. Cutting time: 1,876 hrs.
SWING OVER BED 649.99 mm
MAX CUTTING DIAMETER 649.99 mm
MAX CUTTING LENGTH 1,500.1 mm
X-AXIS TRAVEL 644.91 mm
Y-AXIS Yes
Y-AXIS TRAVEL 9.84" (+/- 4.92")
Z-AXIS TRAVEL 1,599.9 mm
BAR CAPACITY 78.74 mm
SPINDLE NOSE A2-8
SPINDLE MOTOR 22.4 kW
SPINDLE SPEED 4,200 RPM
RAPID TRAVERSE RATE - X-AXIS 50 m/min.
RAPID TRAVERSE RATE - Y-AXIS 40 m/min.
RAPID TRAVERSE RATE - Z-AXIS 50 m/min.
SUB SPINDLE Yes
SUB SPINDLE - SPINDLE NOSE A2-6
SUB SPINDLE - SPINDLE MOTOR 22.4 kW
SUB SPINDLE - SPINDLE SPEED 5,000 RPM
SUB SPINDLE / W-AXIS TRAVEL 1,583.9 mm
B-AXIS SPINDLE MOTOR 22.4 kW
B-AXIS MILLING SPEED 12,000 RPM
B-AXIS SPINDLE TAPER CAPTO C6
B-AXIS TOOL POSITIONS 80
B-AXIS ROTATION 240 DEGREES (+210/ -30)
TURRET 2 CAPACITY 12
TURRET 2 - X-AXIS TRAVEL 234.95 mm
TURRET 2 - Z-AXIS TRAVEL 1,583.9 mm

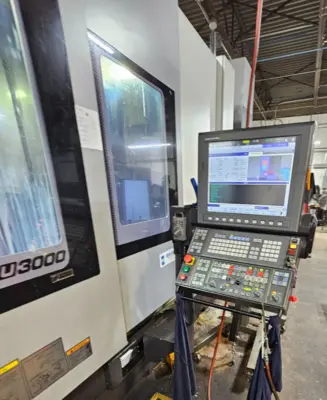

OKUMA OSP-P300SA-L THINC CONTROL

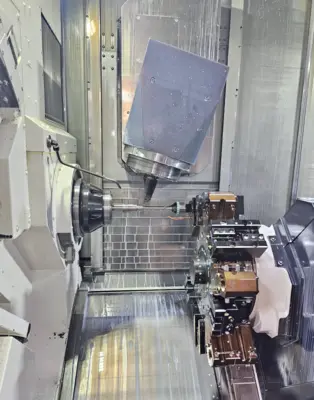

FULL 5-AXIS, CONTOURING B-AXIS MILLING SPINDLE (12,000 RPM, CAPTO C6)
Y-AXIS
SUB SPINDLE
LOWER TURRET (STATIC)
BIG BORE (3.1” BAR CAPACITY – MAIN SPINDLE)
2-SPEED GEARBOX
ROYAL QG-80 COLLET CHUCK (MAIN)
ROYAL QG-65 COLLET CHUCK (SUB)
C-AXIS SYNC (BOTH SPINDLES)

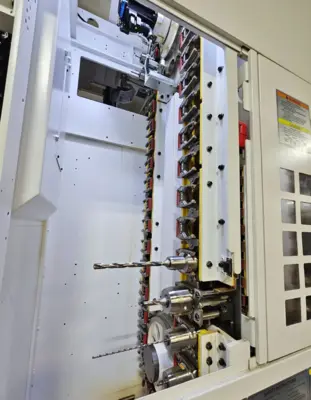

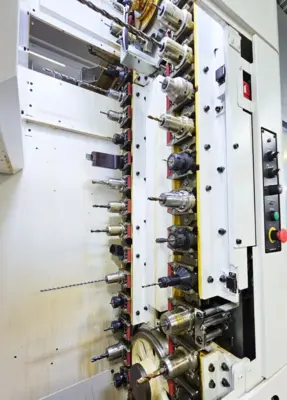

80-TOOL POSITIONS (CAPTO C6)
60”/1500MM BED LENGTH
RENISHAW RMP600 AUTO-GAUGING PROBE
AUTOMATIC TOOL PRESETTER

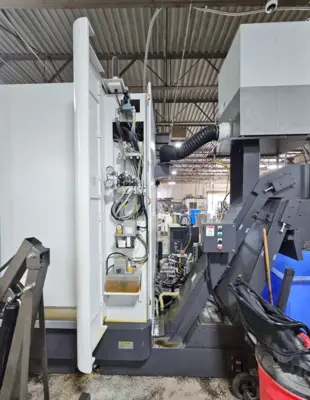

CHIP CONVEYOR

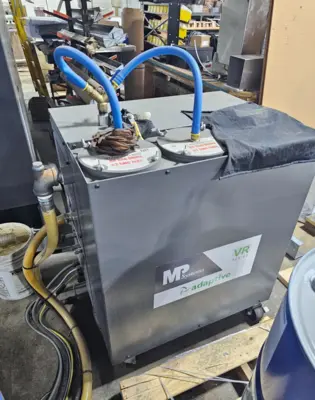

MP SYSTEMS (VF-8) HIGH-PRESSURE COOLANT UNIT
NIAGARA SHOWER COOLANT

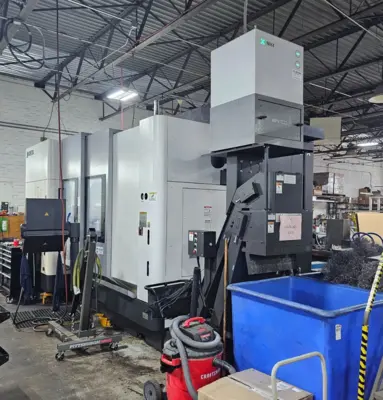

EXO-MIST MIST COLLECTOR
Y-AXIS GAUGING WITH SLOPE GAUGING
C-AXIS AUTO ZERO OFFSET FUNCTION (BOTH SPINDLES)
Z-AXIS AUTO ZERO OFFSET FUNCTION (BOTH SPINDLES)
SUPER NURBS (X+, Y+, Z+, C+, B)
ADVANCED ONE-TOUGH IGF
MULTI-EDGE LATHE TOOL INDEX FUNCTION
THERMO FRIENDLY CONCEPT (SPINDLES & CASTING)
NEGATIVE TOOL RADIUS COMPENSATION
GEOMETRUC ERROR COMPENSATION
GEOMETRIC ERROR GAUGING
TOOL CENTER POINT CONTROL II
STRIAGHTNESS COMPENSATION
COLLISION AVOIDANCE SYSTEM
(8) SETS OF SPARE M-CODES
SPINDLE FLUCTUATE
FIXTURE TRACKING
SYNCHRO TAPPING
SPINDLE SYNC TAP
ARC THREAD CUT
3D ANIMATION
ANIMATION
HI-CUT PRO
MAC MAN
(50) CAPTO C6 TOOL HOLDERS
MORE OSP OPTIONS THAN LISTED (OSP DATA CARD AVAILABLE, UPON REQUEST)
** AS OF JUNE 2026, CUTTING TIME – 1,876 HOURS
