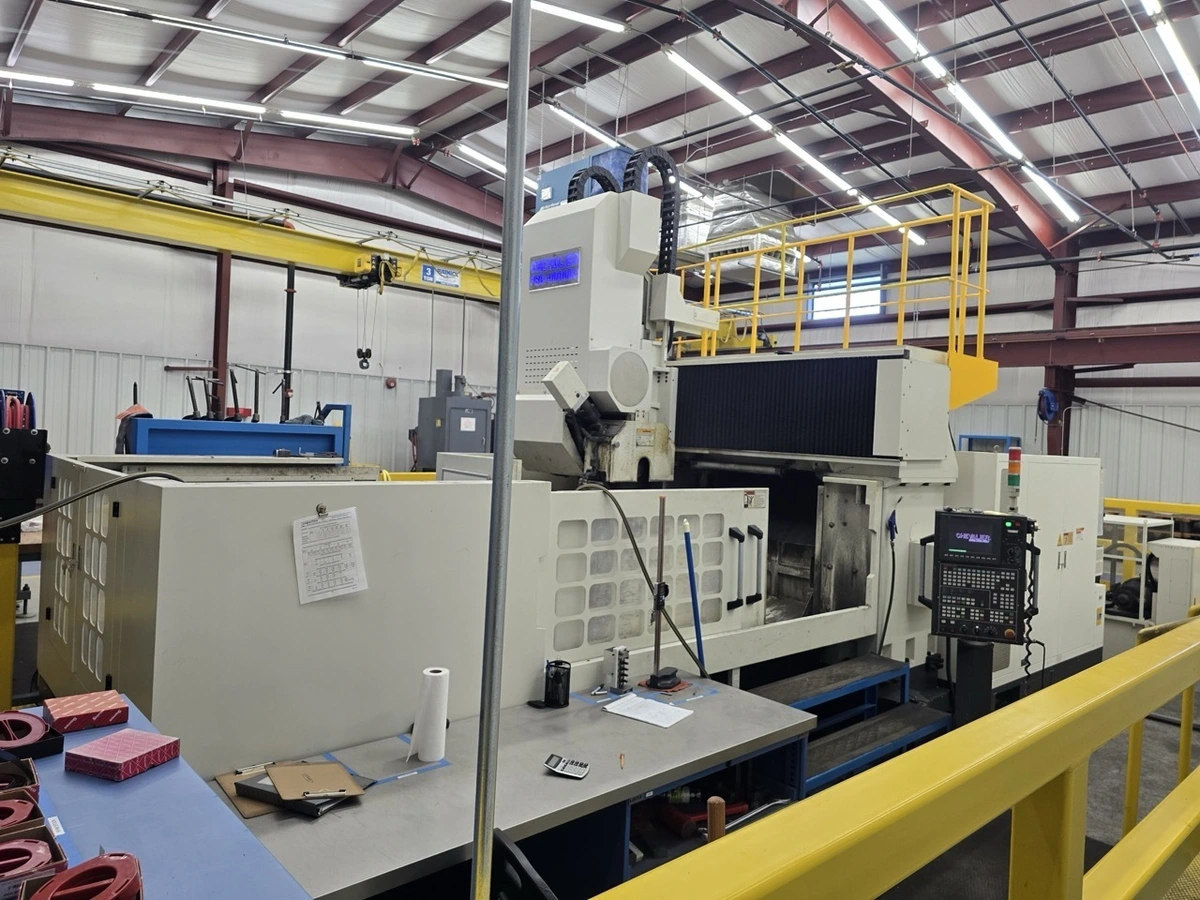

2017 CHEVALIER FSG-4080DC

Capacity Grinding length- 59.1″
Grinding width- 39.4″
Horizontal head – distance between table to spindle centerline- 35.4” (opt. vertical head 45.3″)
Max. table load- 3,500 lbs.
Table
Table size- 39.4” x 59.1” 1,000 x 1,500 mm
Distance between columns- 55″ 1,400 mm
Table speed (variable) – 16.4~82 fpm 5~25 m/min
Max. table travel – 66.9″ 1,700 mm
Transverse movement
Max. travel – 49.2″ 1,250 mm
Feed speed – 0~16.4 fpm 0~5,000 mm/min
Wheelhead elevation
Horizontal head – Max. travel 27.6″
Feed speed – 0~3.2 fpm
Spindle
Horizontal head – 500~2,000 rpm
Grinding wheel
Wheel Dimension – Ø 20” x 4” x Ø 5”
Motors
Horizontal spindle motor – 25 HP
Dimension/Weight Floor space (W x D x H) 200.8” x 413.4”x 171.3”
Net weight – 39,000 lbs.
