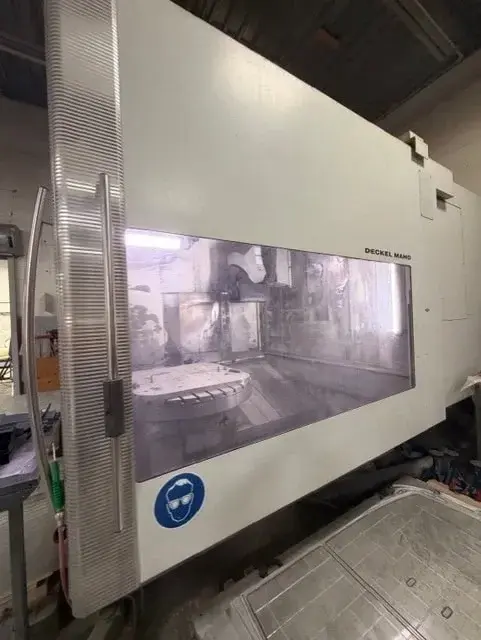

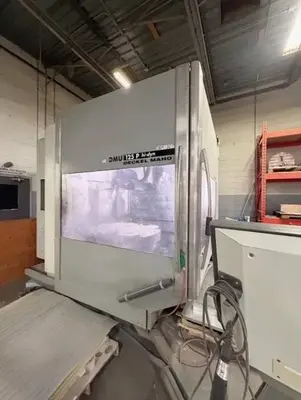

2004 Deckel Maho DMU 125P hi-dyn 5-Axis Vertical Machining Center with 120 ATC
Have one to sell?
ConditionUsed
1 available
This 2004 Deckel Maho DMU 125P hi-dyn 5-axis vertical machining center runs simultaneous 5-axis on an NC swivel rotary table, with a Heidenhain TNC 530 control, a 120-tool dual arm magazine, and a 12,000 RPM, 37.5 HP SK-40 spindle. Travels are 49.2" in X, 34.6" in Y, and 31.5" in Z, and the 39.4" rotary table is rated for 3,307 lbs.
Rotary Table Diameter: 39.4"
Table Load Capacity: 3,307 lbs
Max Workpiece Diameter: 43.3"
Max Workpiece Height: 19.7"
A-Axis Travel: +45° / -30°
C-Axis Travel: 360°
Approximate Weight: 26,235 lbs
Approximate Dimensions: 283.2" x 240" x 122.4"

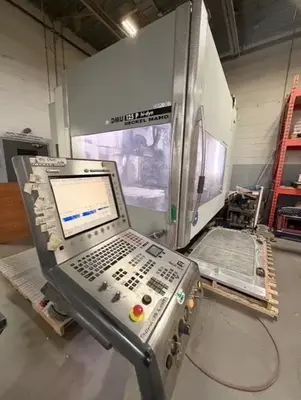

Heidenhain TNC 530 Control
Simultaneous 5-Axis Machining

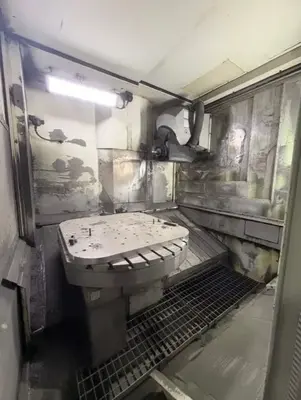

NC Swivel Rotary Table

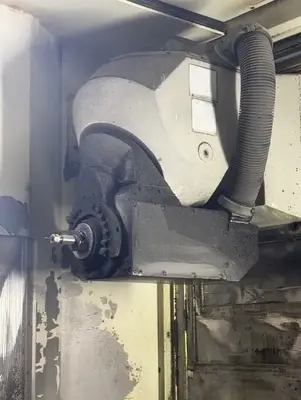

Horizontal Vertical Milling Head
Dual Arm Tool Changer
This 2004 Deckel Maho DMU 125P hi-dyn 5-axis vertical machining center runs simultaneous 5-axis on an NC swivel rotary table, with a Heidenhain TNC 530 control, a 120-tool dual arm magazine, and a 12,000 RPM, 37.5 HP SK-40 spindle. Travels are 49.2" in X, 34.6" in Y, and 31.5" in Z, and the 39.4" rotary table is rated for 3,307 lbs.
The Deckel Maho DMU 125P hi-dyn, also searched as DMG DMU 125P, DMG Mori DMU 125P, DMU-125P, DMU125P, DMU 125 P, and DMU 125, is a 5-axis vertical machining center (5-axis VMC).
This machine has an A-axis travel of +45° / -30° and a full 360° C-axis, with a horizontal vertical milling head and capacity for workpieces up to 43.3" in diameter and 19.7" high. Approximate dimensions are 283.2" x 240" x 122.4", with an approximate weight of 26,235 lbs.
All specifications are approximate, provided by the seller, and subject to buyer verification.
Rotary Table Diameter: 39.4"
Table Load Capacity: 3,307 lbs
Max Workpiece Diameter: 43.3"
Max Workpiece Height: 19.7"
A-Axis Travel: +45° / -30°
C-Axis Travel: 360°
Approximate Weight: 26,235 lbs
Approximate Dimensions: 283.2" x 240" x 122.4"
Heidenhain TNC 530 Control
Simultaneous 5-Axis Machining
NC Swivel Rotary Table
Horizontal Vertical Milling Head
Dual Arm Tool Changer
