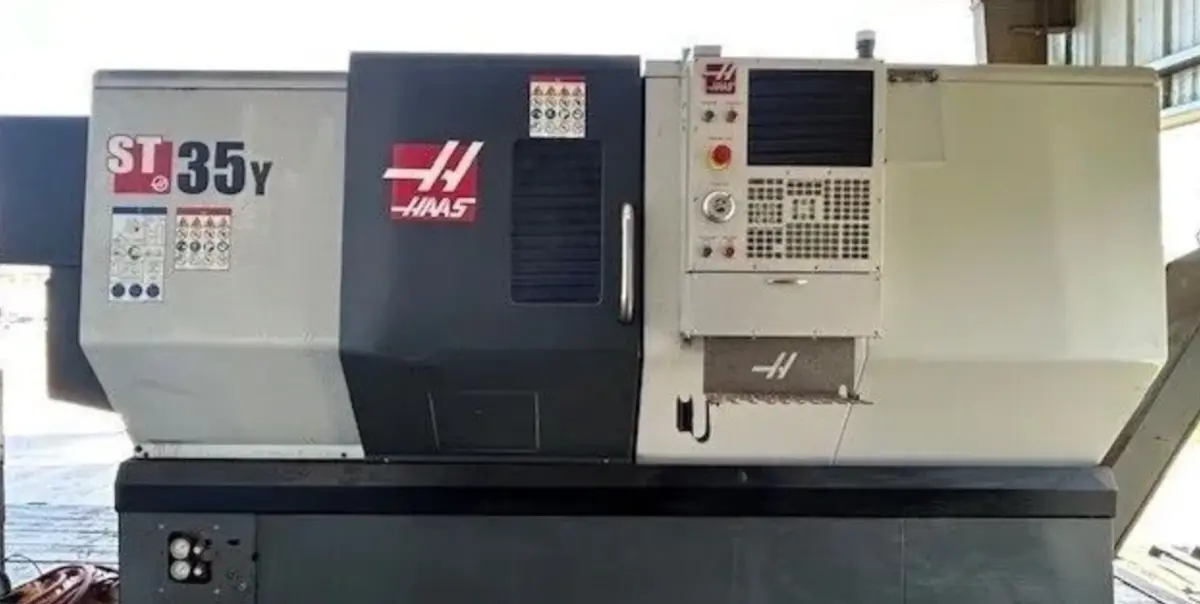

2020 HAAS ST-35Y

Have one to sell?
513.486.0291
sales@ToolquipUSA.com
ConditionUsed
1 available
Request Financing
Have one to sell?

Overview

Type:
CNC Lathes
Manufacturer:
HAAS
Model:
ST-35Y
Year:
2020
Stock #:
X3X3900
Status:
For Sale

Description

Used CNC Lathe: 31.75" swing, 23" machining length, 4-axis, 12" chuck, 40 hp, 3,200 RPM, live tooling, tailstock. Includes HAAS CNC control, 4 live tool holders, remote monitoring, intuitive probing, automatic tool presetter.

Swing31.75"806.45 mm
Machining Length23"584.2 mm
# Axis44
Chuck Size12"304.8 mm
Bar Capacity4"101.6 mm
Power40 hp29.8 kW
Max RPM3,200 RPM3,200 RPM
Turning Dia18"457.2 mm
TailstockYesYes
Live ToolingYesYes
ControlCNC (HAAS)CNC (HAAS)

HAAS CNC CONTROL
*** 4 LIVE TOOL HOLDERS INCLUDED AS WELL AS OTHER TOOL HOLDERS. $40,000 PACKAGE***
1GB MEMORY
VISUAL PART PROGRAMMING SYSTEM
USER DEFINABLE MACROS
12" HYDRAULIC CHUCK, A2-8
EARY POWER FAILURE DETECTION MODULE
ETHERNET INTERFACE
HAAS CONNECT REMOTE MONITORING
4000RPM LIVE TOOLING WITH C AXIS 12 STATION BMT TURRET
MEDIA DISPLAY CODE: M130
RIGID TAPPING
SPINDLE ORIENTATION
2400 RPM SPINDLE
AUTOMATIC TOOL PRESETTER
BELT TYPE CHIP CONVEYOR
PROGRAMMABLE HYDRAULIC TAILSTOCK
WIRELESS INTUITIVE PROBING SYSTEM FOR LATHE
