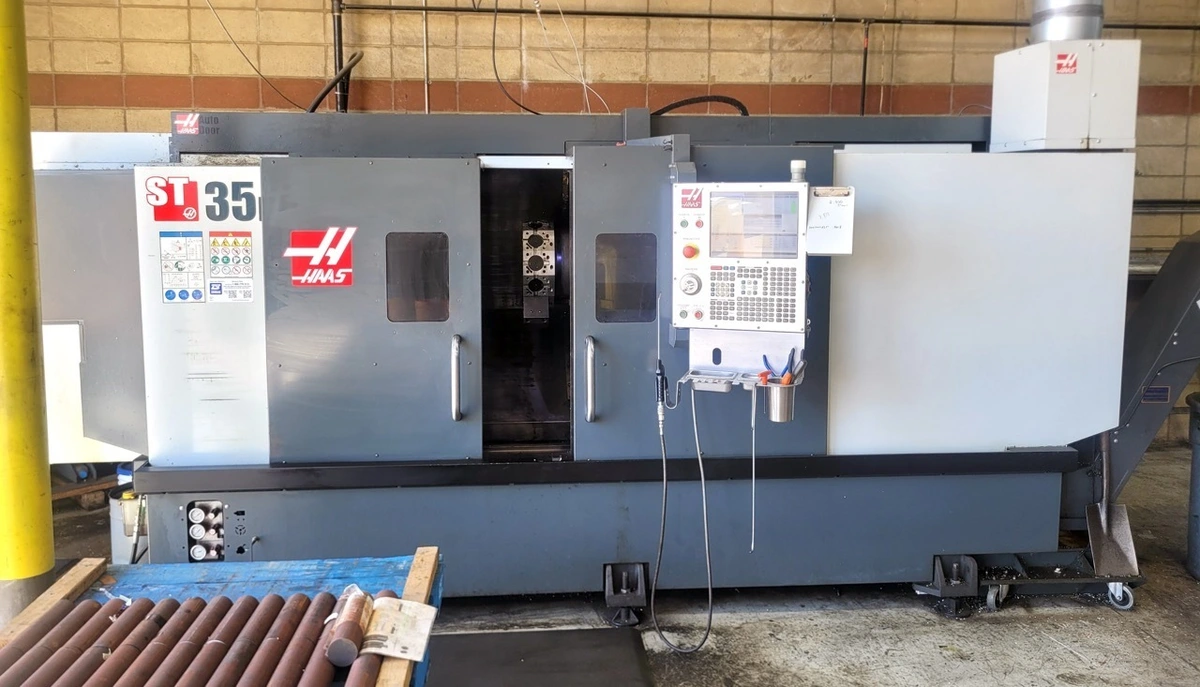

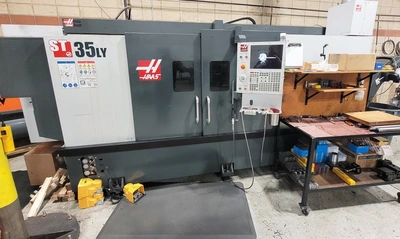

2020 HAAS ST-35LY
Have one to sell?
ConditionUsed
1 available

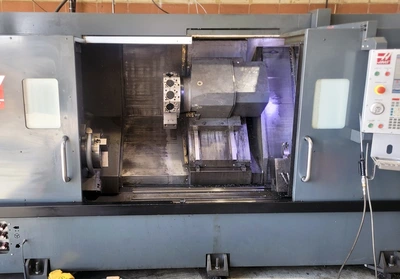

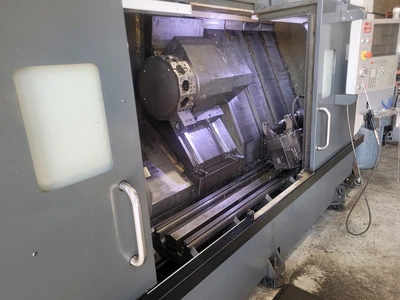

CNC Lathe, used, features a 12" chuck, 4" bar capacity, 62.5" max cutting length, and 472 IPM rapids on X and Y. Equipped with Haas CNC control, 6,000 RPM live tooling, 24-station turret, auto tool presetter, and more. 6,374 hrs power on.
Swing over Front Apron: 20.5″
Swing over Cross Slide: 20.5″
Swing over Tailstock: 20.5″

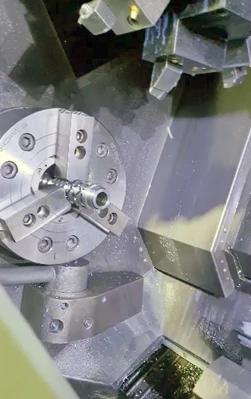

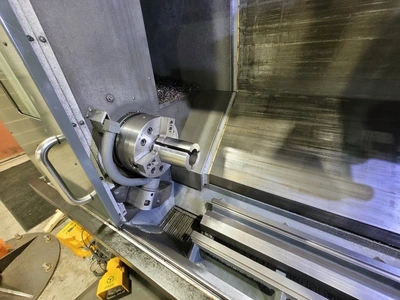

Chuck Size: 12″
Bar Capacity: 4″
Max Cutting Diameter with BMT Turret: 12″
Maximum Cutting Length (varies with workholding): 62.5”
X Axis Travel: 9.4″
Y Axis Travel: ±2.0”
Z Axis Travel: 62.5″
Rapids on X: 472 IPM
Rapids on Y: 472 IPM
Rapids on Z: 945 IPM
Optional Spindle Max Rating: 40 HP
Spindle Speed: 2,400 RPM
Spindle Nose: A2-8
Spindle Bore: Ø4.62″
Bar Capacity: Ø4.0″
Main Spindle C Axis Max Rating: 5 HP
C Axis Rotational Accuracy: ±0.01°
Live Tooling Max Speed: 6,000 RPM
Tooling: BMT65

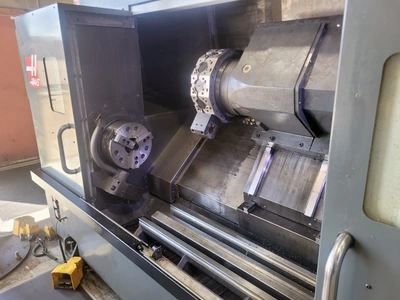

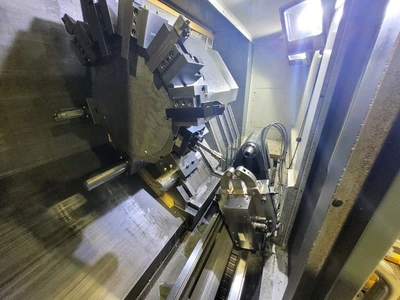

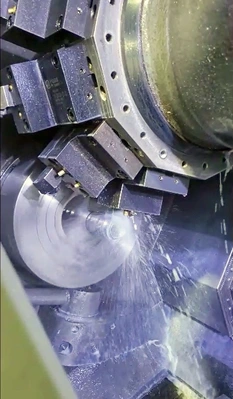

Turret: 24 Stations
Electrics: 220 V; 3 Ph; 50/60 Hz

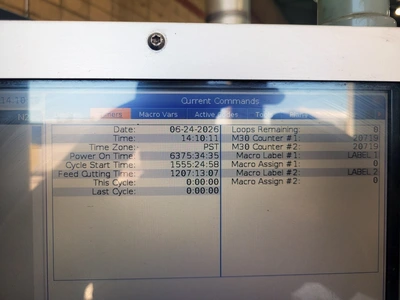

Power On Time: 6,374 Hours
Feed Cutting Time: 1,207 Hours
Haas CNC Control
2-Speed Gearbox
6,000 RPM Live Tooling Speed Upgrade
Y Axis
24-Station (Half-Index) Turret
Automatic Tool Presetter
Programmable Hydraulic Tailstock
Belt-Type Chip Conveyor

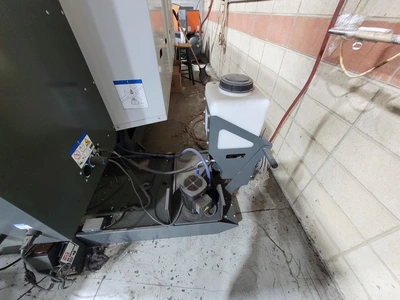

Automatic Coolant Refill System
Enclosure Exhaust System
Coolant Oil Tank Skimmer
Auto Door
Tool Load Monitoring
Rigid Tapping
