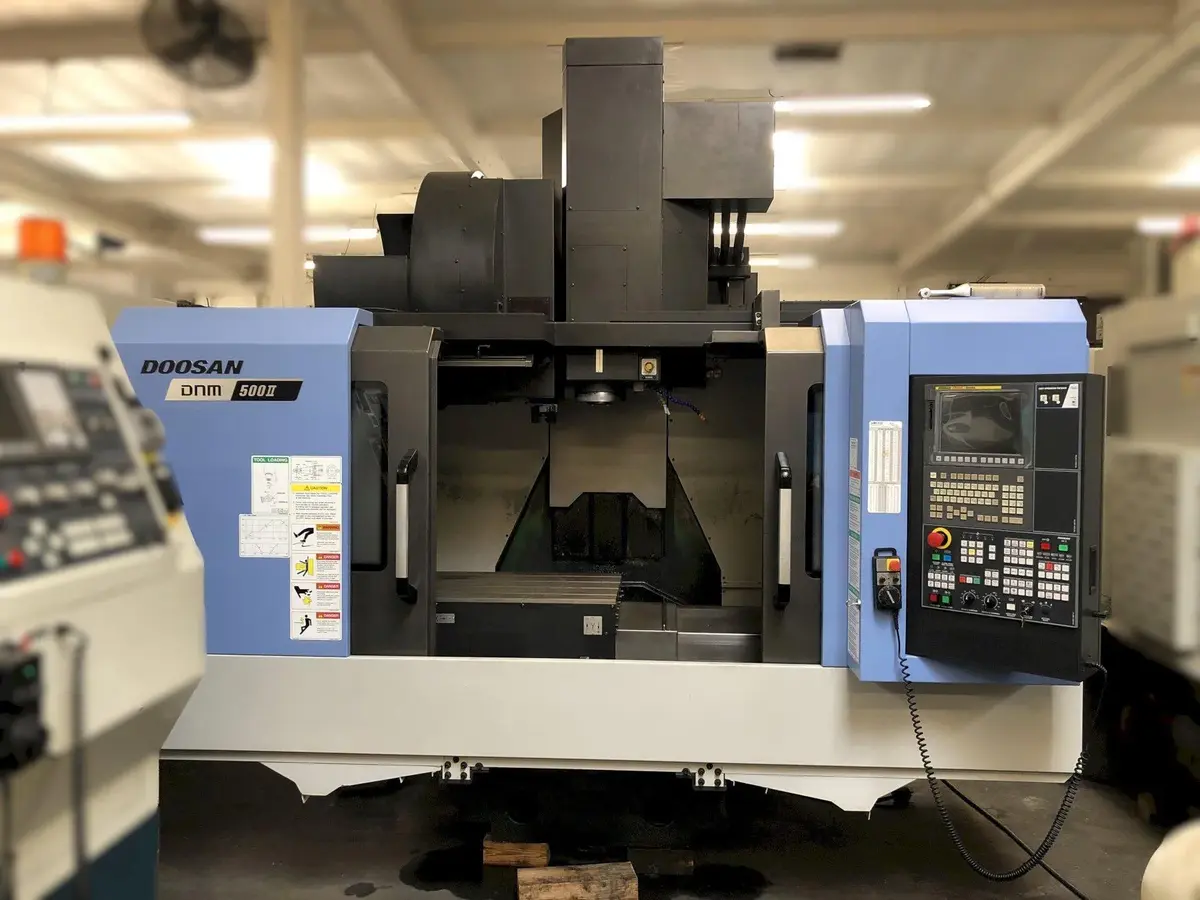

2015 DOOSAN DNM 500II
Have one to sell?
ConditionUsed
1 available
Used Vertical Machining Center for sale. Features X/Y/Z travel of 40/21/20 inches, table size 47.2x21.3 inches, spindle speed 12,000 rpm, and a 30-tool capacity.
X-Axis Travel 40 inches
Y-Axis Travel 21 inches
Z-Axis Travel 20 inches
X-Axis Rapid Traverse Rate 1417 ipm
Y-Axis Rapid Traverse Rate 1417 ipm
Z-Axis Rapid Traverse Rate 1181 ipm
Maximum Table Load 1764 pounds
Tool Capacity 30
Max Tool Diameter 3.149 inches
Max Tool Length 11.8 inches
Table Size (LxW) 47.2 inches x 21.3 inches
Spindle Speed 12,000 rpm
Main Motor 20 HP
Dimensions (LxWxH) 116.5" x 96.2" x 110.8"
Weight 14330 pounds
