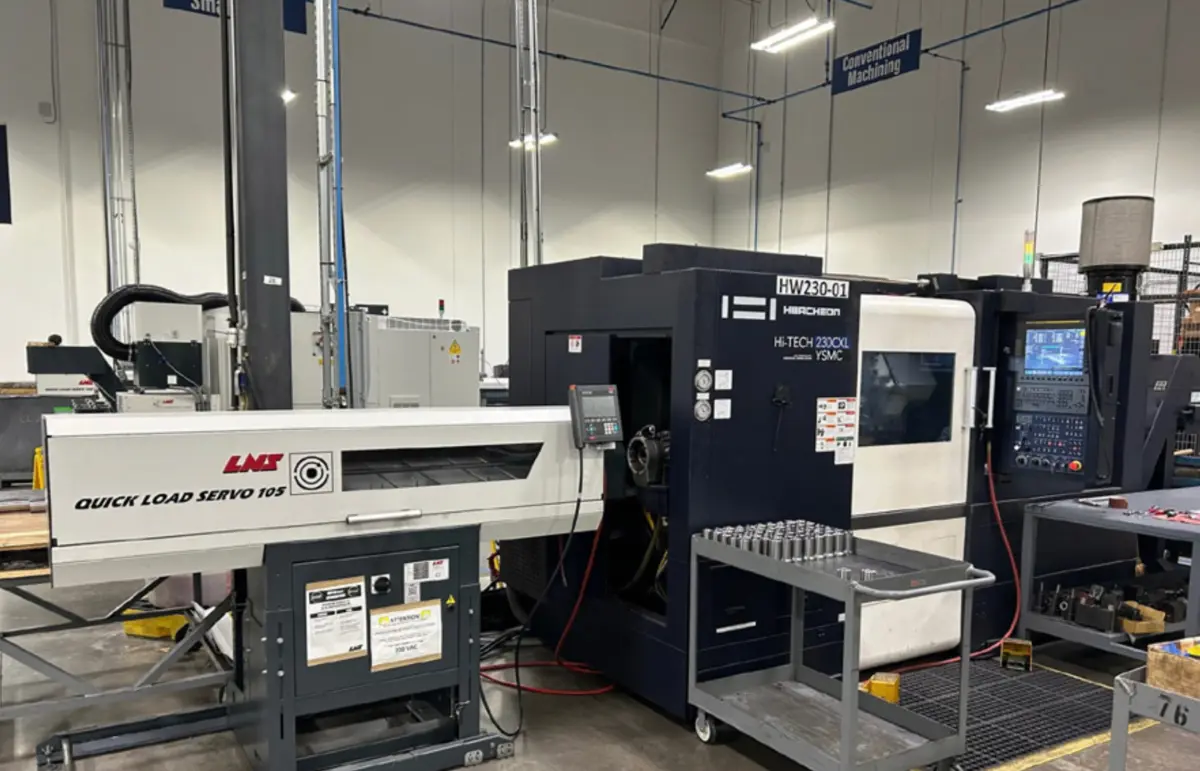

2023 HWACHEON HI-TECH 230CXL YSMC
Have one to sell?
ConditionUsed
1 available
Used multi-axis CNC lathe with advanced features: Fanuc i Series-Plus, tool presetter, sub spindle, Y-axis, milling, and chip conveyor. Max spindle speed: 3500 RPM. Includes barfeed and mist collector.
Swing Over Bed: 29.53”
Swing Over Saddle: 21.26”
Max Cutting Dia. : 15.75”
Standard Cutting Dia: 10.91”
Max Cutting Length: 41.73”
Type of Spindle Nose: A2-8 / Sub: A2-5
Max Spindle Speed: 3500 RPM / Sub: 5000 RPM
Through Spindle Holse Dia. : 3.58” / Sub: 2.44”
Max Bar Size: 3.19” / Sub: 2.0”
Hwacheon Fanuc i Series-Plus
Tool Presetter
Sub Spindle
Y-Axis
Milling
Chip Conveyor
LNS Quick Load Servo 105 Barfeed
LNS Chip Blaster V-Series 1000 PSI
Royal Mist Collector
10” and 6” Hydraulic Chucks
