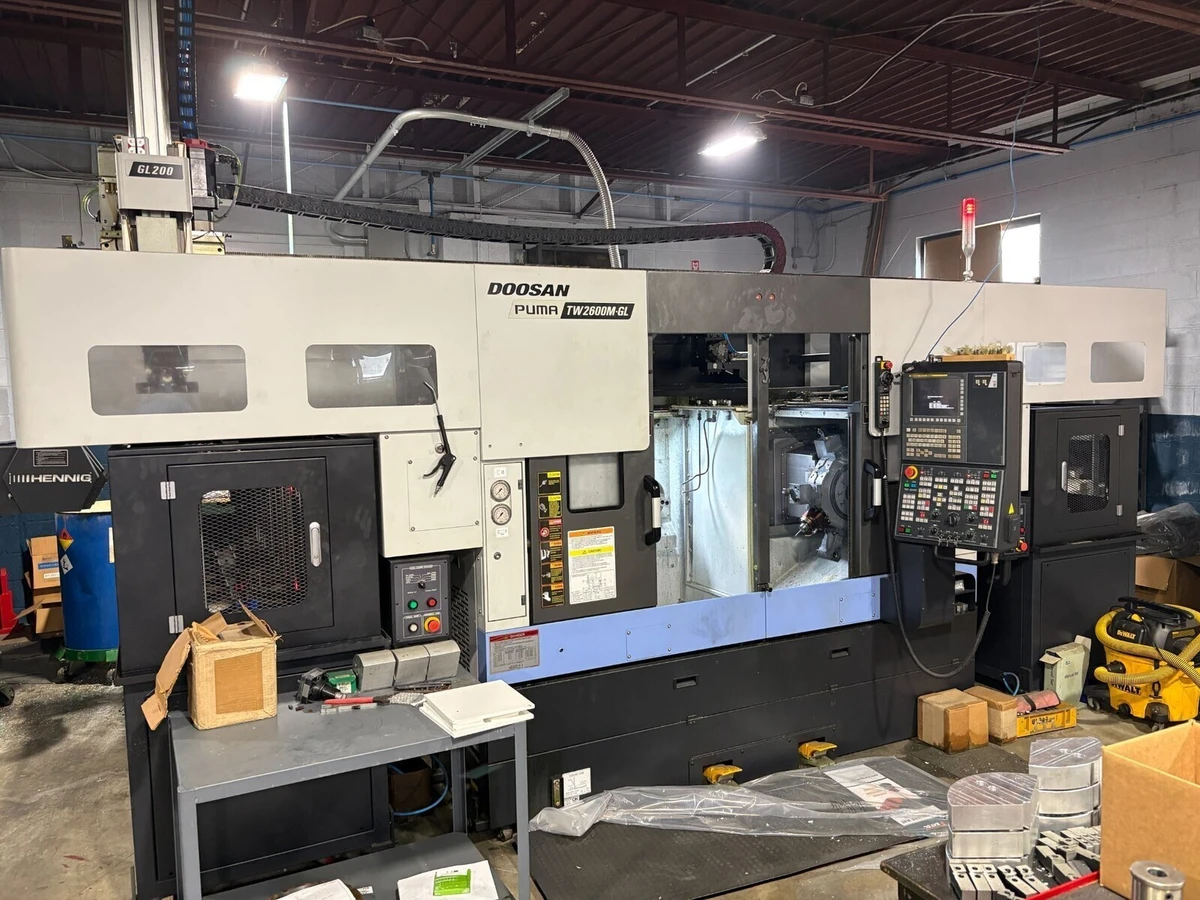

2019 DOOSAN PUMA TW2600M GL
Have one to sell?
ConditionUsed
1 available
Used CNC lathe with 17.71" swing, 14.17" turning diameter, and 25 hp power. Equipped with Fanuc i Plus CNC, dual 8" chucks, dual 10-station turrets, Gantry Loader, and coolant system. Only 578 cutting hours.
# Axis 6
Max Swing Over Bed 17.71"
Main Spindle Chuck Size 8.25"
Max Turning Diameter 14.17"
Max Turning Length 6.69"
Center Distance 18.11"
Max Part Weight 13 lb
# Turrets 2
X-Axis (Cross Travel: Turret)7.5"
Z-Axis (Longitudinal Travel: Turret)7.1"
X2-Axis (Cross Travel of Lower Turret)7.5"
Z2-Axis (Longitud. Travel: Lower Turret)7.1"
Max Bar Capacity 2"
Spindle Through Hole 2.4"
Spindle Nose A2-6
Spindle Power 25 hp
Max Spindle Speed 3,500 RPM
X-Axis Upper Turret Rapid Traverse Rate 945 in/min.
Z-Axis Upper Turret Traverse Rate 945 in/min.
X2-Axis Lower Turret Rapid Traverse Rate 945 in/min.
Z2-Axis Lower Turret Traverse Rate 945 in/min.
Live Tooling Yes
Max Live Tooling Speed 5,000 RPM
Upper Turret Live Tooling Power 10 hp
Upper Turret Positions 10
Lower Turret Positions 10
Lower Turret Live Tooling Power 10 hp
Machine Cutting Hours 578
Fanuc i Plus CNC Control, (2) 8" 3-Jaw Chucks, (2) BMT 55 Turrets w/ 10 Stations & Live Tooling, GL200 Gantry Loader w/ Part Flippers, (2) Part Stackers, Chip Conveyor & Coolant System.
Only 578 Cutting Hours
