2012 MITSUBISHI EA12D
Have one to sell?
ConditionUsed
1 available

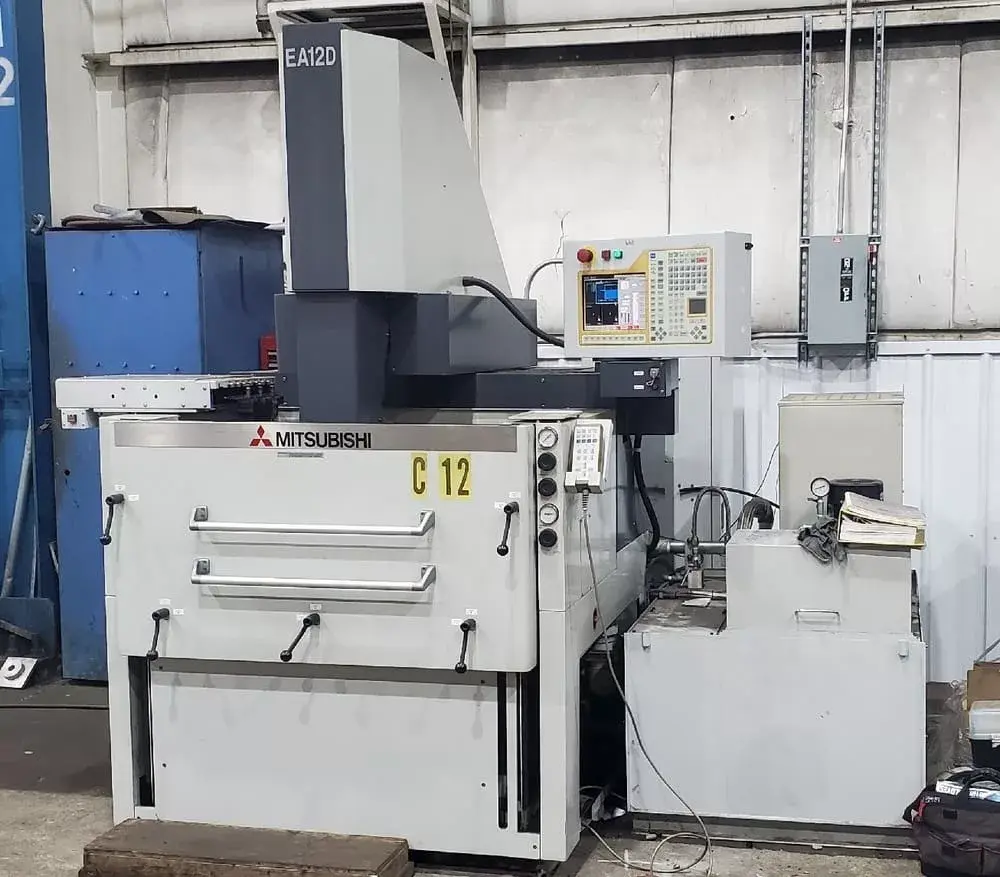

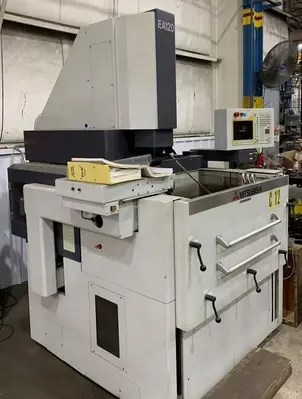

Used EDM Sinker available. Features Mitsubishi M700 64 Bit Fuzzy Logic CNC Control, 80 AMP FP60EA power supply, and 3R chuck. Max workpiece: 39.3" x 25.5" x 13.7", weight 2,200 lbs. Includes chiller and graphic display.
X-Axis Travel 15.7"
Y-Axis Travel 11.8"
Z-Axis Travel 11.8"

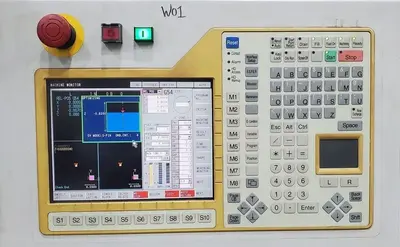

Control Mitsubishi M700 64 Bit Fuzzy Logic CNC Control W/14" LCD
Power Source 80 AMP FP60EA Power Supply
Dielectric Fluid Level (Max / Min) 15.7"/ 7.0"
Table to Platen Distance 11.8" x 23.6"
Machining Movement (C) 360 Degrees / .001 Degree Increment
Min. Command Input .00001"
Resolution .000002"
Shuttle Type 20 AEC
Rapid Traverse 78.74 IPM
Dielectric Capacity 132 Gal
Worktank Internal Dimensions 41.3" x 27.5" x 17.7"
Maximum Workpiece Dimensions 39.3"x 25.5" x 13.7"
Maximum Workpiece Weight 2,200 lbs

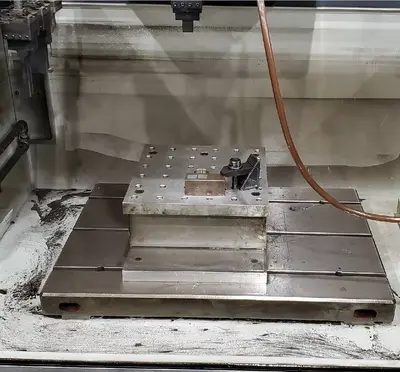

Table Dimensions 27.5" x 19.6"
Maximum Electrode Weight 110 lbs / 11 lbs with C-Axis
Power Requirement 200-220/3/60
Total Shipping Weight 6,889 Lbs
Installation Dimensions (W x D ) 91.5" x 87.2"
Fixed Tank Type
Worktank Access Front Drop Door
3R Chuck
C-Axis
Chiller
Graphic Display 10.4" TFT Color LCD
Used EDM Sinker available. Features Mitsubishi M700 64 Bit Fuzzy Logic CNC Control, 80 AMP FP60EA power supply, and 3R chuck. Max workpiece: 39.3" x 25.5" x 13.7", weight 2,200 lbs. Includes chiller and graphic display.
