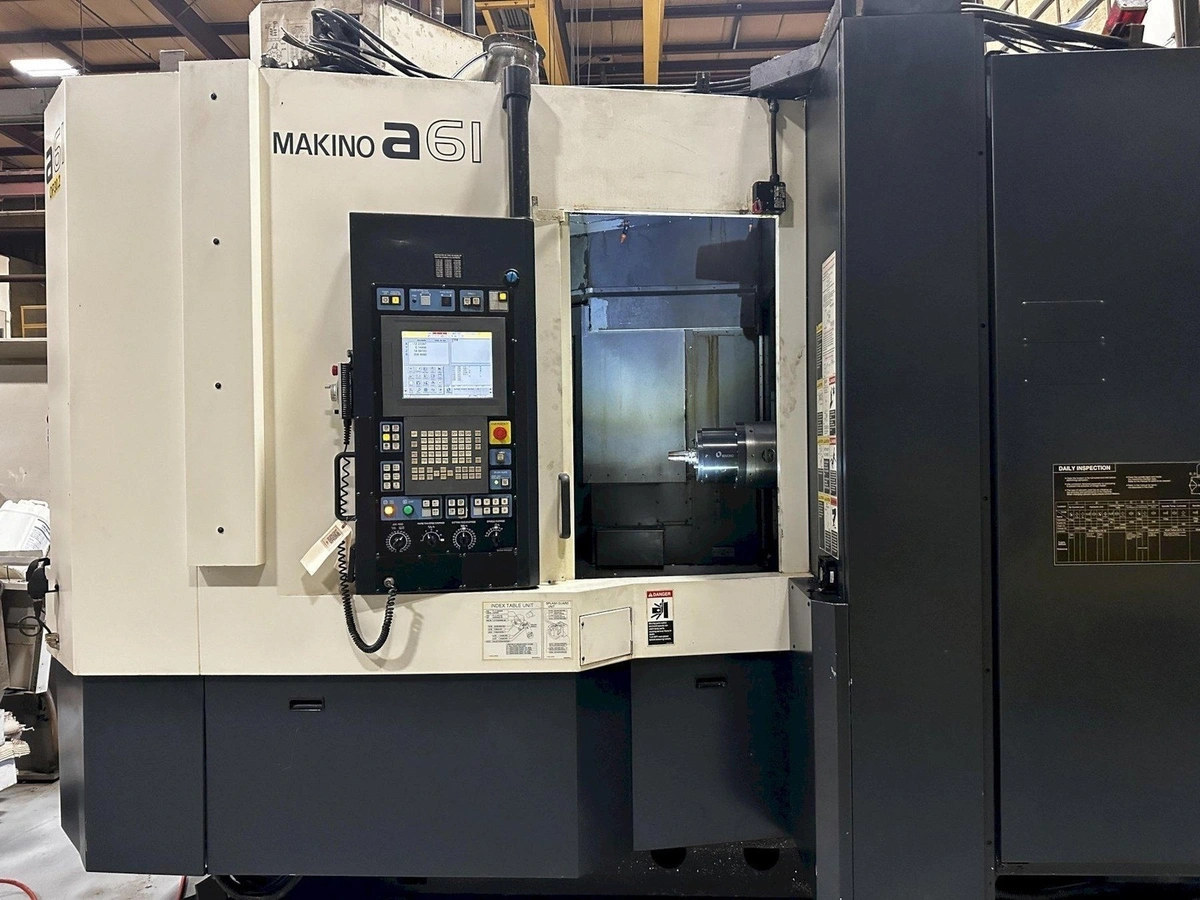

2010 MAKINO a61
Have one to sell?
ConditionUsed
1 available
Used Horizontal Machining Center offers precision with X/Y/Z travels of 28.7"/25.6"/28.7", 14,000 rpm spindle, 30 HP motor, and 40-tool changer. Includes Pro 5 Control, chip conveyor, coolant system, and air dryer.
Pallet Length 19.7 inches
Pallet Width 19.7 inches
Pallet Load Capacity 1100 pounds
Pallet Indexing (B-Axis) 1°
X-Axis Travel 28.7 inches
Y-Axis Travel 25.6 inches
Z-Axis Travel 28.7 inches
Rapid Traverse Rate (X/Y/Z) 1968 ipm
Spindle Taper HSK-63
Spindle Speed 14,000 rpm
Spindle Motor (HP) 30 hp
Tool Changer Capacity 40
Hydraulic Clamping yes
Machine Dimensions 182" x 102" x 112"
Machine Weight 26000 pounds
- Pro 5 Control
- Hydraulic Clamping
- Chip Conveyor
- Coolant Tank & Pump
- Spindle Chiller
- 1° B Axis Indexing
- Air Dryer
