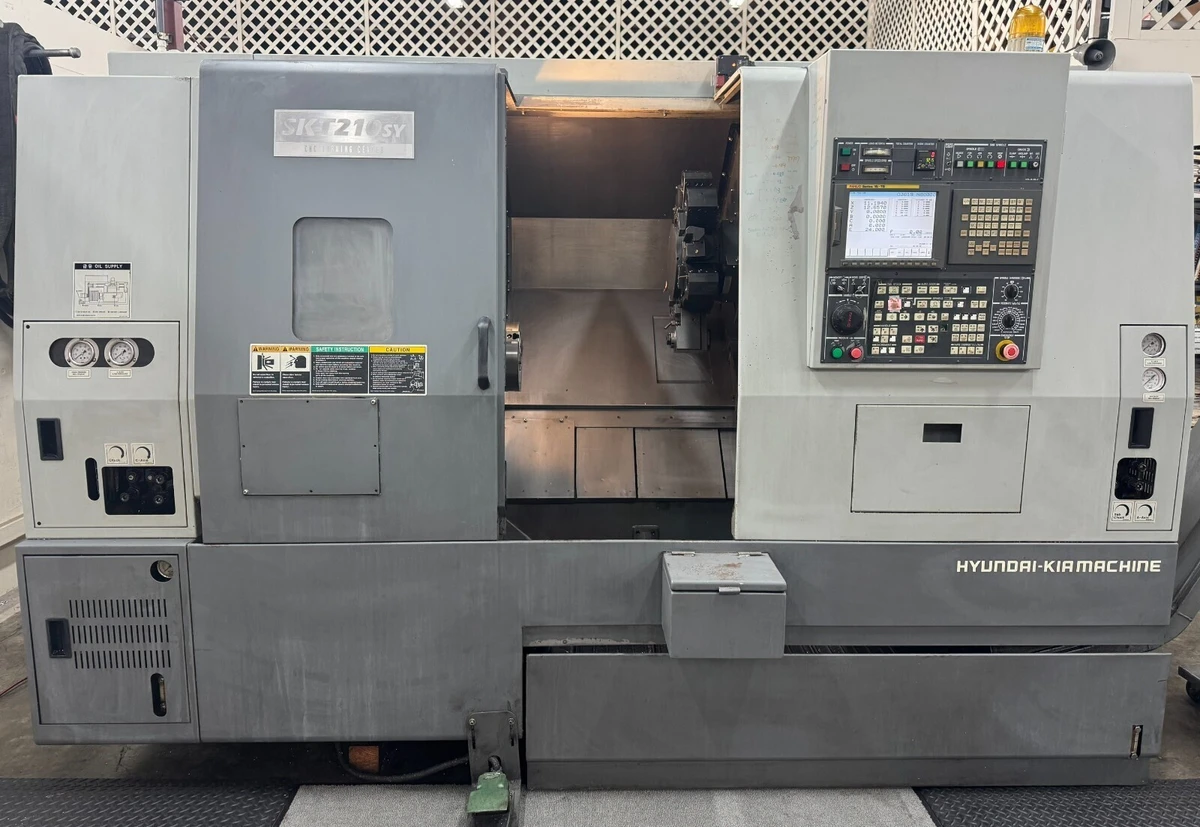

MAIN SPINDLE
Chuck Size: 8"
Bar Capacity: 2.5"
Spindle Speed: 4,000 RPM
Spindle Nose: A2-6
Max Swing Over Bed: 21.7"
Max Turning Diameter: 9.5"
Max Machining Length: 20.9"
Main Motor: 20 HP
SUB-SPINDLE
Chuck Size: 6"
Bar Capacity: 1.7"
Sub-Spindle Speed: 6,000 RPM
Sub-Spindle Motor: 5 HP

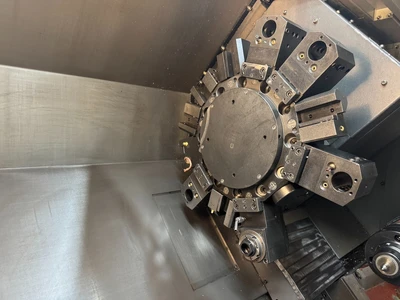

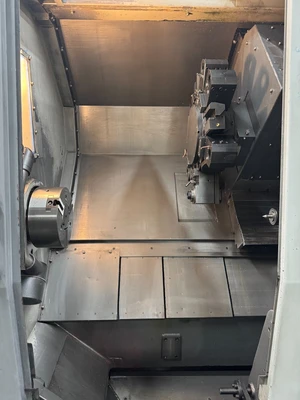

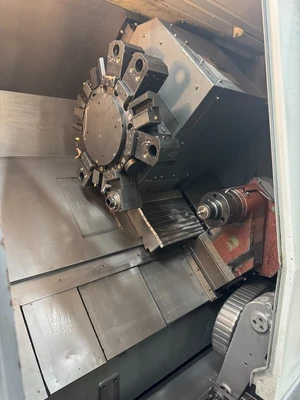

TURRET & LIVE TOOLING
Turret Stations: 12

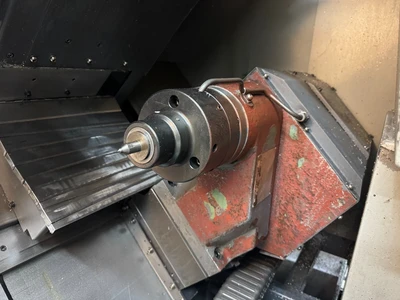

Live Tooling
Live Tool Motor: 7.5 HP
Live Tool Speed: 4,000 RPM
AXES & TRAVELS
X-Axis Rapid Traverse: 1,417 IPM
Z-Axis Rapid Traverse: 1,417 IPM
X-Axis Travel: 8.7"
Y-Axis Travel: 3.1" (+/- 1.55")
Z-Axis Travel: 21.7"
B-Axis (Sub-Spindle) Travel: 28.3"
DIMENSIONS & WEIGHT
Dimensions: 120" x 68" x 85" (162" with chip conveyor)
Weight: 12,000 lbs

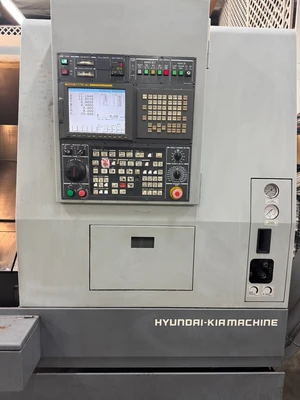

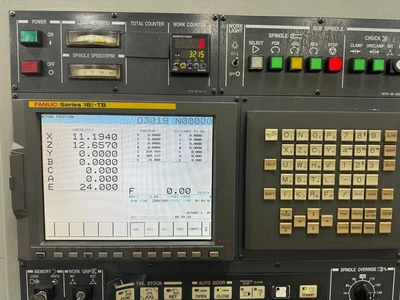

FANUC 18i-TB CNC Control
LNS Chip Conveyor
(4) Live Tool Holders

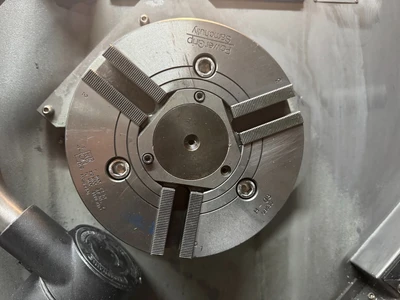

8" 3-Jaw Hydraulic Chuck (Samchully Powergrip H-08)
Royal 5C Collet Chuck

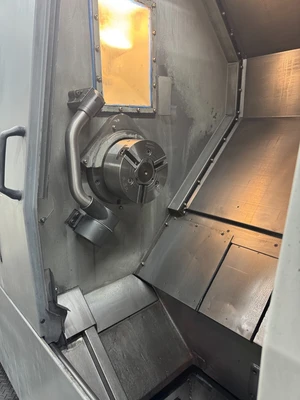

ATS 5C Collet Chuck on Sub-Spindle
Parts Catcher
Tool Setter
Servo-Controlled C-Axis on Both Spindles
This equipment is currently unavailable. Similar equipment available now is shown below.
