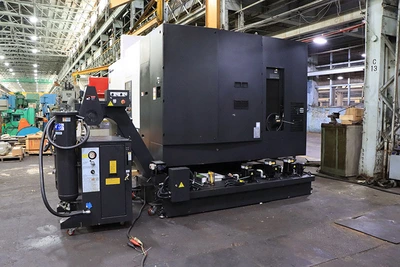

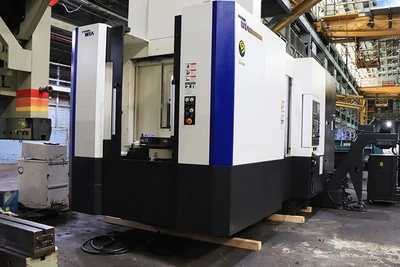

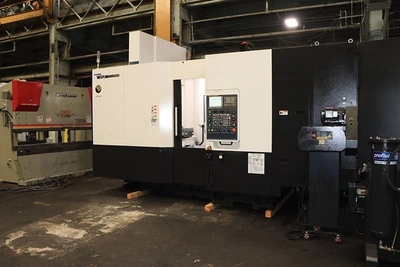

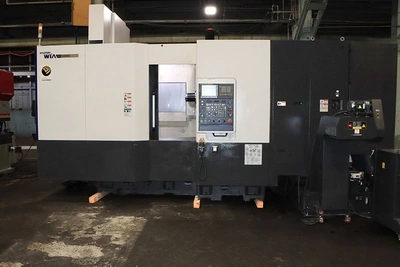

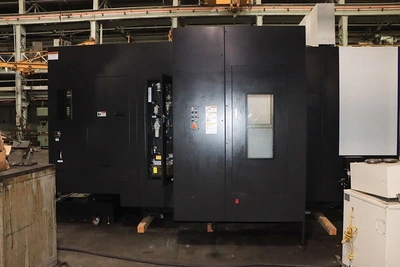

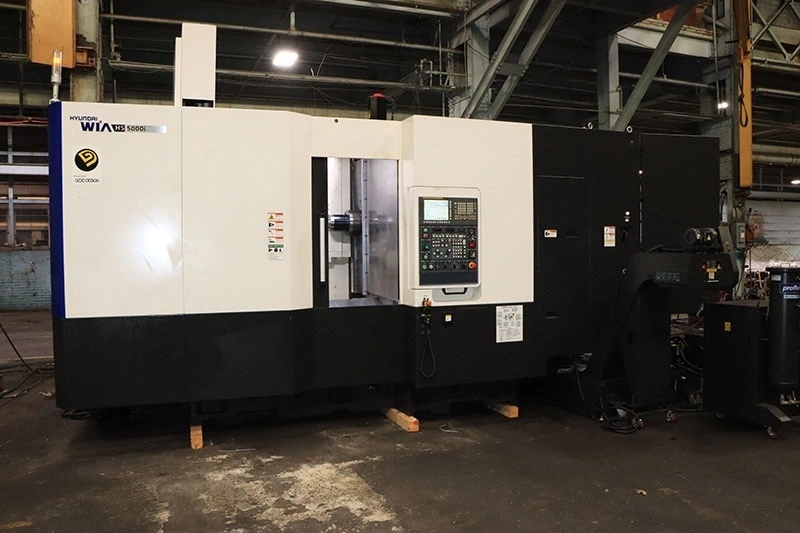

2015 HYUNDAI WIA HS5000I

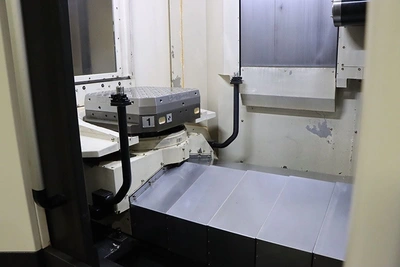

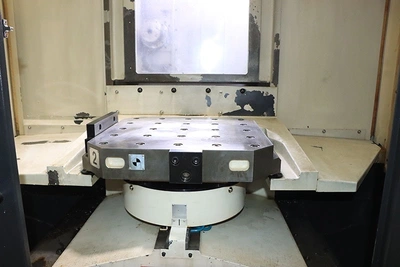

PALLET SIZE ..................... 19.7″ × 19.7″ / 500mm
NUMBER OF PALLETS ............... 2
MAXIMUM LOAD CAPACITY: .......... 1,102 LBS
MAXIMUM WORKING SIZE ........... 30.7″ × 38.6″H
MIN. INDEXING ANGLE ............. 0.001°

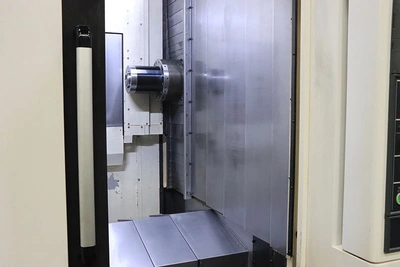

SPINDLE
SPINDLE TAPER ................... #40 CAT BIG PLUS
SPINDLE SPEED ................... 12,000 RPM
SPINDLE MOTOR OUTPUT ............ 33.5/30 HP
SPINDLE TORQUE (MAX./CONT.) ..... 123.1/70.1) LBF-FT
SPINDLE DRIVING METHOD .......... BUILT-IN
FEED
X-AXIS TRAVEL ................... 33.5” / 850mm
Y-AXIS TRAVEL ................... 27.6” / 700mm
Z-AXIS TRAVEL ................... 29.5” / 750mm
DISTANCE COLUMN TO SP. CENTER ... 2″ - 29.5″
DISTANCE TABLE SURFACE TO SP .... 5.9″ ~ 35.4″
RAPID TRAVERSE RATE (X/Y/Z) ..... 1,969/1,969/1,969 IPM
CUTTING FEED RATE ............... 393 IPM

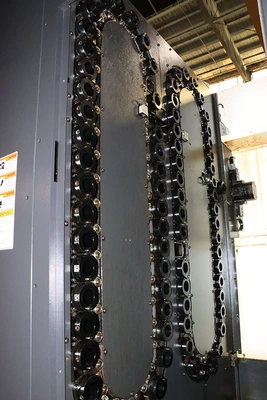

ATC
NUMBER OF TOOLS: ................ 80
MAX. TOOL DIA.: ................. (W.T/W.O) 3″/5.5″
MAX. TOOL LENGTH: ............... 17.7″
MAX. TOOL WEIGHT: ............... 17.6 LBS
TOOL CHANGE TIME ................ T-T SEC 1.1 / C-C SEC 3.8
FLOOR SPACE (MACHINE ONLY) ...... 109″ × 192″ x 110.8”
APPROXIMATE WEIGHT .............. 33,069 LBS
