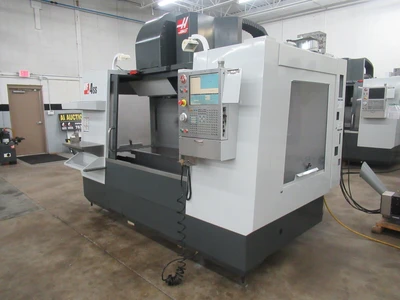

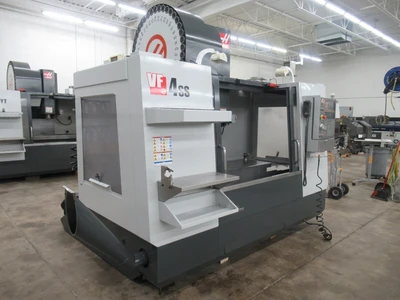

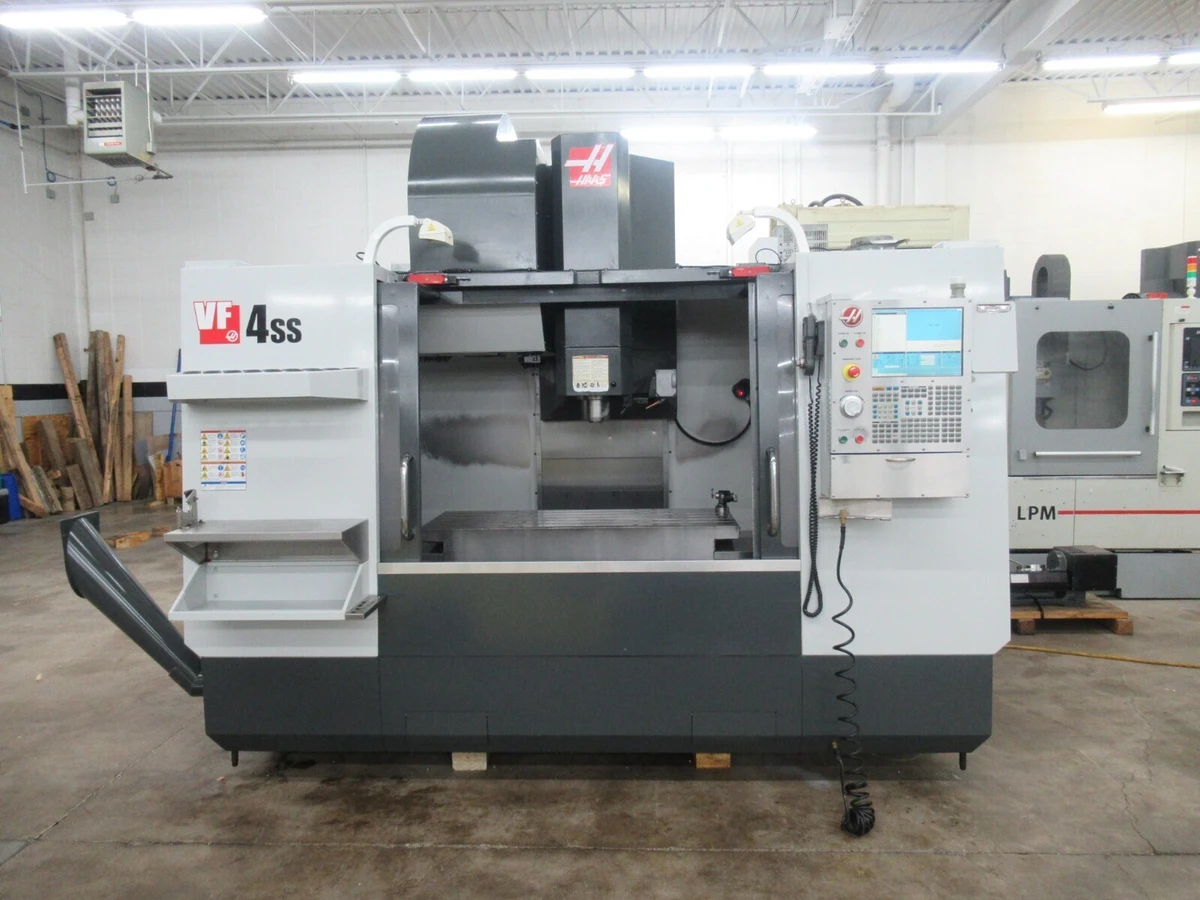

2012 HAAS VF-4SS

Vertical Machining Centers
Manufacturer:
HAAS
Model:
VF-4SS
Year:
2012
Stock #:
X4X3692
Used Vertical Machining Center, equipped with Haas Maincon CNC Control, 12,000 RPM spindle, 5-axis, Renishaw probing, dual trunnion table, thru spindle coolant, high-speed machining, and 40-station tool changer.
X50"1,270 mm
Y20"508 mm
Z25"635 mm
Power30 hp22.4 kW
RPM12,000 RPM12,000 RPM
# ATC4040
TaperCAT 40CAT 40
Table-W18"457.2 mm
Table-L52"1,320.8 mm
# Axis55
ControlCNC (HAAS)CNC (HAAS)

SPINDLE TO TABLE DISTANCE: 4" - 29"
TABLE CAPACITY: 1,750 LBS.
TRANSMISSION: DIRECT INLINE DRIVE
RAPID TRAVERSE RATE (X/Y/Z): 1,400 IPM
MAXIMUM CUTTING FEED RATE: 833 IPM
TOOL CHANGER STYLE: SIDE-MOUNT TWIN-ARM
TOOL CHANGER CAPACITY: 40+1 STATIONS
TOOL CHANGE TIME: 1.6 SECONDS TOOL TO TOOL
MAX TOOL WEIGHT: 12 LBS

All specifications are approximate, provided for reference only, and not binding. Buyers are responsible for verifying all details. Inspection prior to purchase is welcome and encouraged.

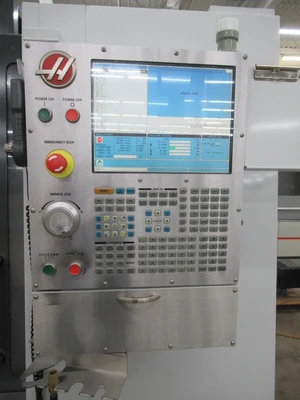

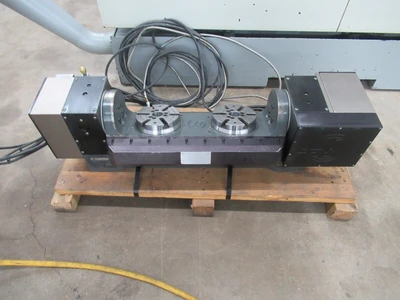

Haas Maincon CNC Control, 12,000 RPM Spindle, Brushless 4th & 5th Axis Drive, Renishaw Probing System with Part & Tool Probes, Haas TR160-2 Brushless Sigma- 5 Programmable Dual Trunnion Table with Scale, Version P4,Thru Spindle Coolant - 300 PSI, Programmable Coolant Nozzle, High Speed Machining, Remote Jog Handle, 40-Station Side Mount Twin Arm Automatic Tool Changer, Chip Auger & Cone, Coolant Tank, Keys, Visual Quick Code Programming System, Macros, Coordinate Rotation & Scaling, Spindle Orientation, Rigid Tapping, Manuals and Documentation.
