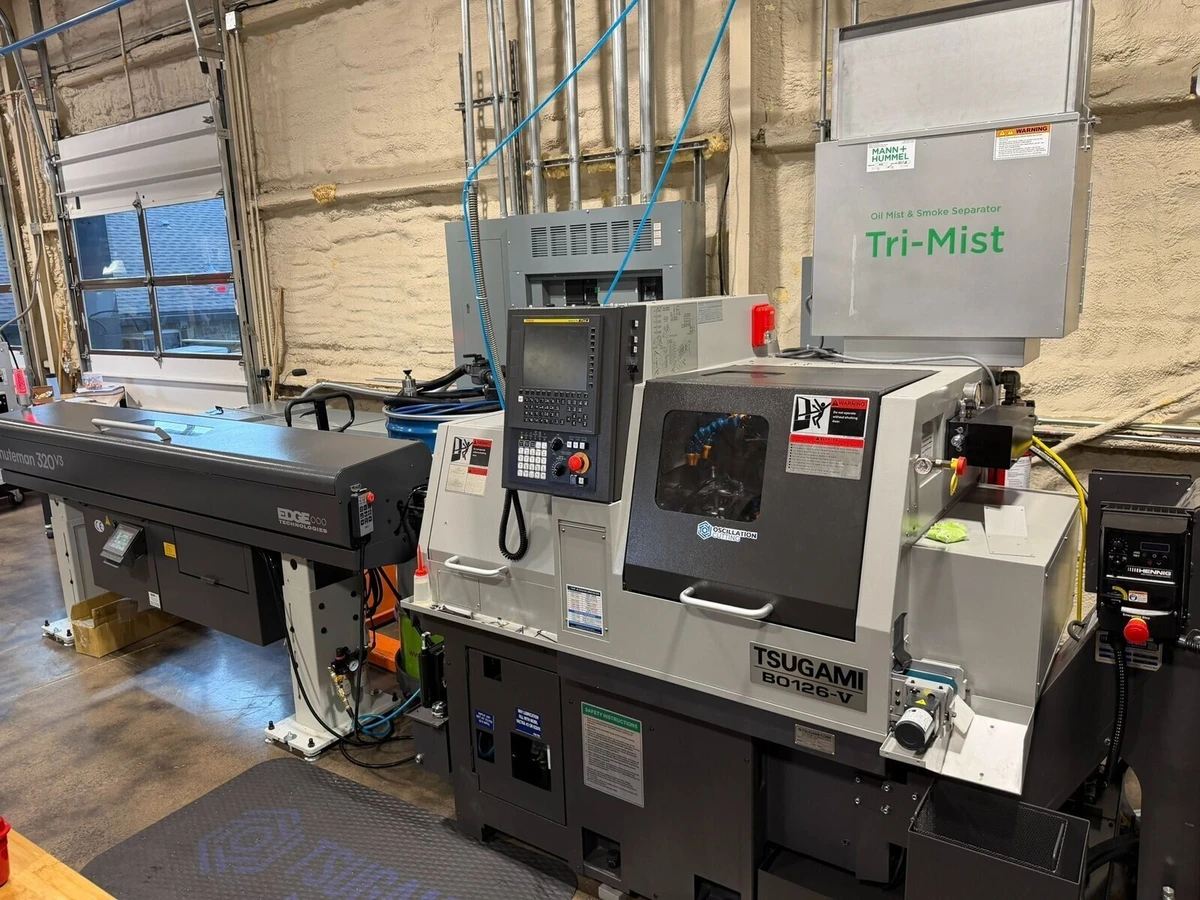

2024 TSUGAMI B0126-V
Have one to sell?
ConditionUsed
1 available

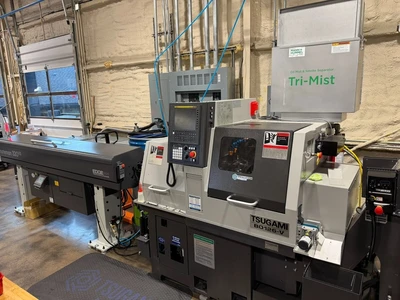

Swiss Type Automatic Screw Machine, used, with 6 axes, 28 tool positions, FANUC 0i-TF Plus control, and a max spindle speed of 12,000 rpm. Equipped for enhanced production with Y2 axis, Chip Conveyor, and Chucker Kit. Only 15 hours cutting time.
Maximum Bar Stock 0.5″ (12 mm)
# Axes 6
Sliding Headstock / Guide Bushing YES
CONVERTIBLE: Run w/o Guide Bushing (chucker) YES
Max Headstock Stroke w/ Guide Bushing
Max Headstock Stroke in Chucker Mode 170 mm / 6.69”
45 mm / 1.77”
# Tool Positions 28
# Live Tool Positions 11
Control FANUC 0i-TF Plus
Main Spindle Speed 12,000 rpm
Sub Spindle Speed 12,000 rpm
Live Tool Speed 8,000 rpm
Main Spindle Motor 3.0/5.0 Hp (2.2/3.7 kW)
Weight 4,078 lbs. (1,850 kg)
Footprint: W x D x H 68.9” x 41.5” x 66.9” (1,750 mm × 1,055 mm× 1,700 mm)

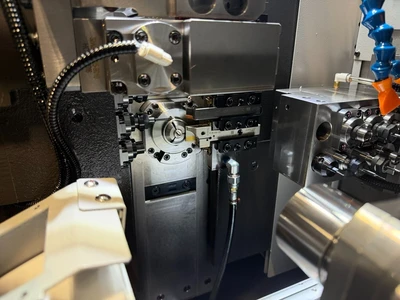

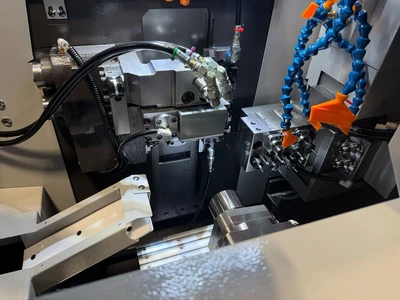

Y2 Axis Added to Back Tool Post – enabling multiple back milling operations plus simultaneous operation of the main and sub spindle
28 Total Tool Positions – multiple modular rotary and fixed tool configurations
Back Milling Operations – Back slotting, back end milling, back cross drilling/tapping
170 mm Stroke, 45 mm when used in chucker mode
Rapid Traverse Rate of 36 m/min – shortens idle and cycle times
Enriched NC Functions Standard – tool nose radius compensation, chamfering and corner rounding and cutoff detection plus many more..

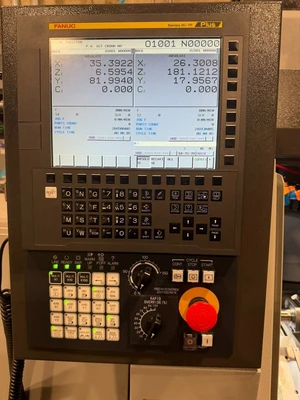

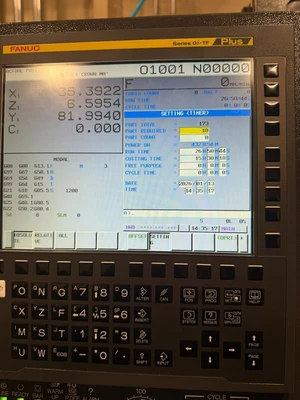

Fanuc 0i-TF Plus CNC Control

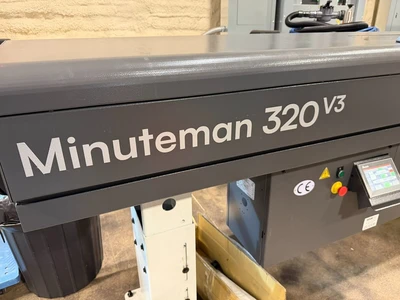

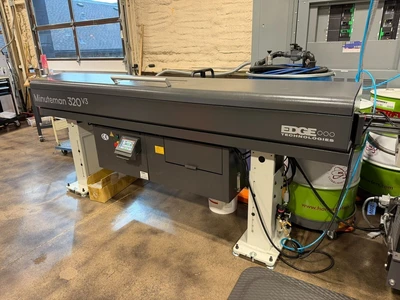

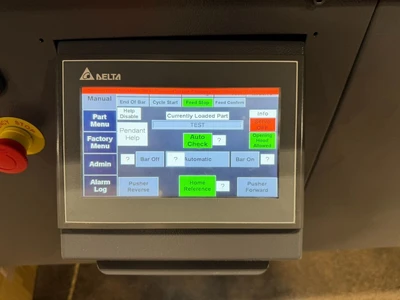

Edge Minuteman 320 V3 Bar Feeder

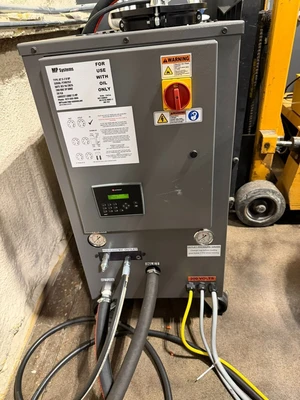

High Pressure Pump with Built in Chiller
Filter Mist Unit

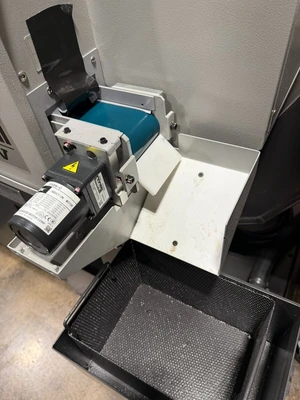

Work Conveyor
Thru Sub Coolant

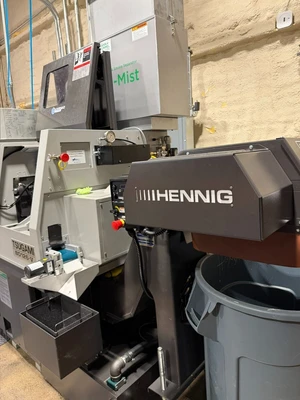

Chip Conveyor
Fire Trace
Chucker Kit
Oscillation Cutting for X1 and Z1 Axes
Oscillation Cutting for X2 and Z2 Axes
Only 15 hours cutting time.
