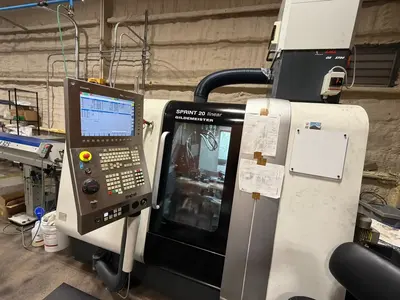

2011 Gildemeister Sprint 20 Linear 8-Axis CNC Swiss Lathe
Have one to sell?
ConditionUsed
1 available

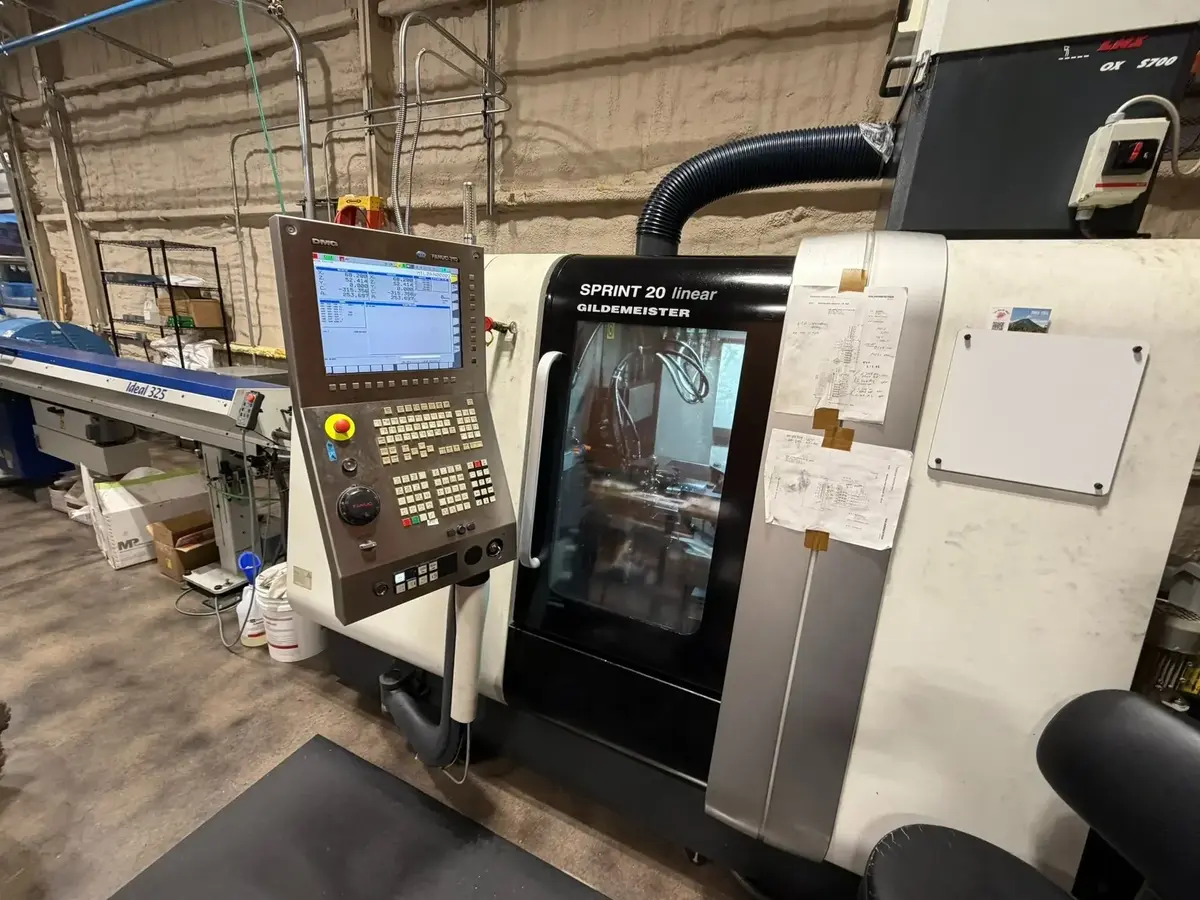

This 2011 Gildemeister Sprint 20 Linear 8-axis CNC Swiss lathe has live tooling on both the main and counter spindles, an IEMCA Ideal 325 12 ft magazine bar feeder, and a Chip Blaster high pressure unit. Both spindles run up to 10,000 RPM with 0.79" bar capacity, and the linear axes rapid at 1,574.8 IPM.
Main Spindle Z1 Stroke: 3.15"
Main Spindle Drive Power: 7.38/4.96 HP
Main Spindle Run-Up Time: 5,000 RPM in 0.6 sec
Sub Spindle Bar Capacity: 0.79"
Sub Spindle Speed: 10,000 RPM
Sub Spindle Drive Power: 7.38/4.96 HP
Sub Spindle Run-Up Time: 5,000 RPM in 0.6 sec
Rapid Traverse (Linear Axes): 1,574.8 IPM
Tool Carrier 2 Y2 Travel: 4.72"

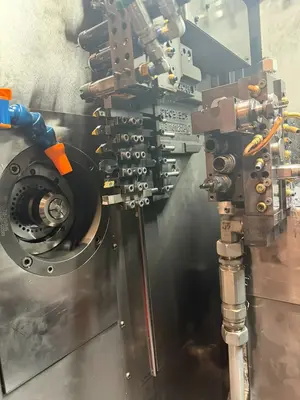

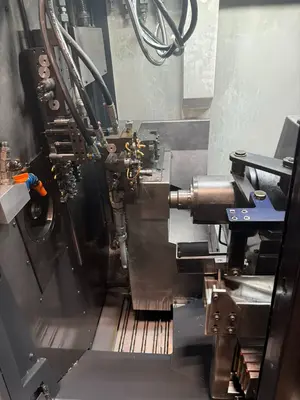

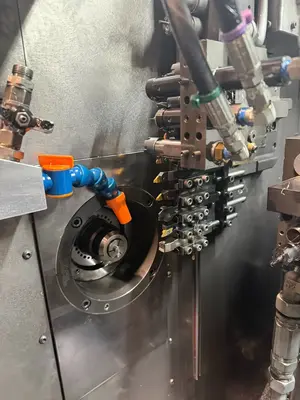

Carriage 1 Tooling: 6 Fixed Turning Tools, 6 Front Working Tools, 5 Driven Tools

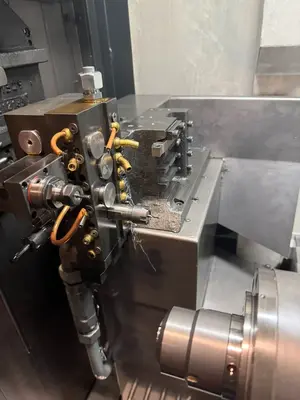

Carriage 2 Tooling: 4 Fixed Turning Tools, 4 Front Working Tools, 5 Driven Tools
Driven Tool Speed: 6,000 RPM
Driven Tool Power: 1.74 HP
Approximate Dimensions: 191" x 58" x 92"

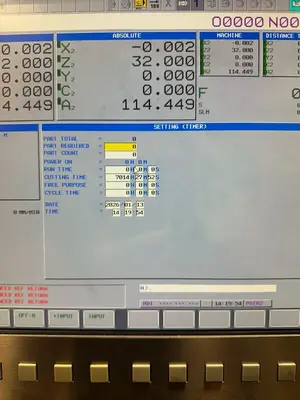

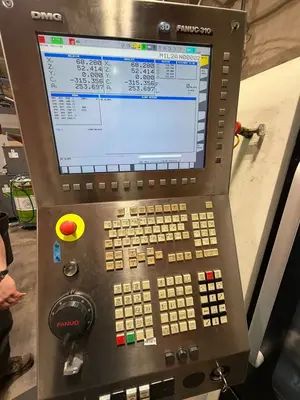

DMG SLIMline Fanuc 310i Control

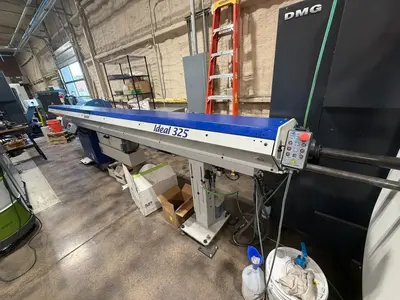

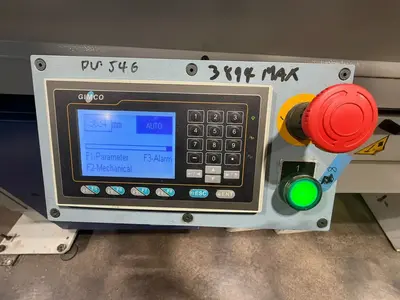

IEMCA Ideal 325 12 ft Magazine Bar Feeder
C-Axis Live Tool Capability on Main and Counter Spindle

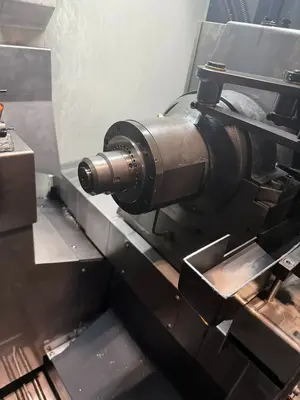

Synchronous Rotary Guide Bushing
Conversion Kit from Steady to Sliding Headstock
Thru Spindle Coolant on Counter Spindle

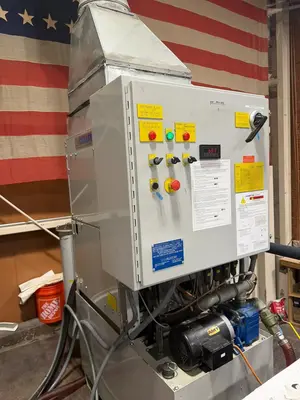

Chip Blaster High Pressure Unit
Chip Conveyor

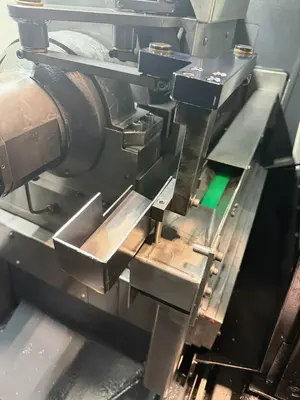

Auto Parts Catcher
Parts Exit Conveyor
This 2011 Gildemeister Sprint 20 Linear 8-axis CNC Swiss lathe has live tooling on both the main and counter spindles, an IEMCA Ideal 325 12 ft magazine bar feeder, and a Chip Blaster high pressure unit. Both spindles run up to 10,000 RPM with 0.79" bar capacity, and the linear axes rapid at 1,574.8 IPM.
The Gildemeister Sprint 20 Linear, also searched as DMG Gildemeister Sprint 20/8 Linear, DMG Mori Sprint 20, Sprint 20 Linear, or Sprint 20, is a CNC Swiss-type lathe (sliding headstock automatic) with a counter spindle and live tooling.
It has a 3.15" Z1 spindle stroke and 4.72" of Y2 travel, with 6 turning, 6 front working, and 5 driven tools on carriage 1 and 4 turning, 4 front working, and 5 driven tools on carriage 2. It also comes equipped with through spindle coolant on the counter spindle, a synchronous rotary guide bushing, a parts exit conveyor, and a steady to sliding headstock conversion kit, with approximate dimensions of 191" x 58" x 92".
All specifications are approximate, provided by the seller, and subject to buyer verification.
Main Spindle Z1 Stroke: 3.15"
Main Spindle Drive Power: 7.38/4.96 HP
Main Spindle Run-Up Time: 5,000 RPM in 0.6 sec
Sub Spindle Bar Capacity: 0.79"
Sub Spindle Speed: 10,000 RPM
Sub Spindle Drive Power: 7.38/4.96 HP
Sub Spindle Run-Up Time: 5,000 RPM in 0.6 sec
Rapid Traverse (Linear Axes): 1,574.8 IPM
Tool Carrier 2 Y2 Travel: 4.72"
Carriage 1 Tooling: 6 Fixed Turning Tools, 6 Front Working Tools, 5 Driven Tools
Carriage 2 Tooling: 4 Fixed Turning Tools, 4 Front Working Tools, 5 Driven Tools
Driven Tool Speed: 6,000 RPM
Driven Tool Power: 1.74 HP
Approximate Dimensions: 191" x 58" x 92"
DMG SLIMline Fanuc 310i Control
IEMCA Ideal 325 12 ft Magazine Bar Feeder
C-Axis Live Tool Capability on Main and Counter Spindle
Synchronous Rotary Guide Bushing
Conversion Kit from Steady to Sliding Headstock
Thru Spindle Coolant on Counter Spindle
Chip Blaster High Pressure Unit
Chip Conveyor
Auto Parts Catcher
Parts Exit Conveyor
