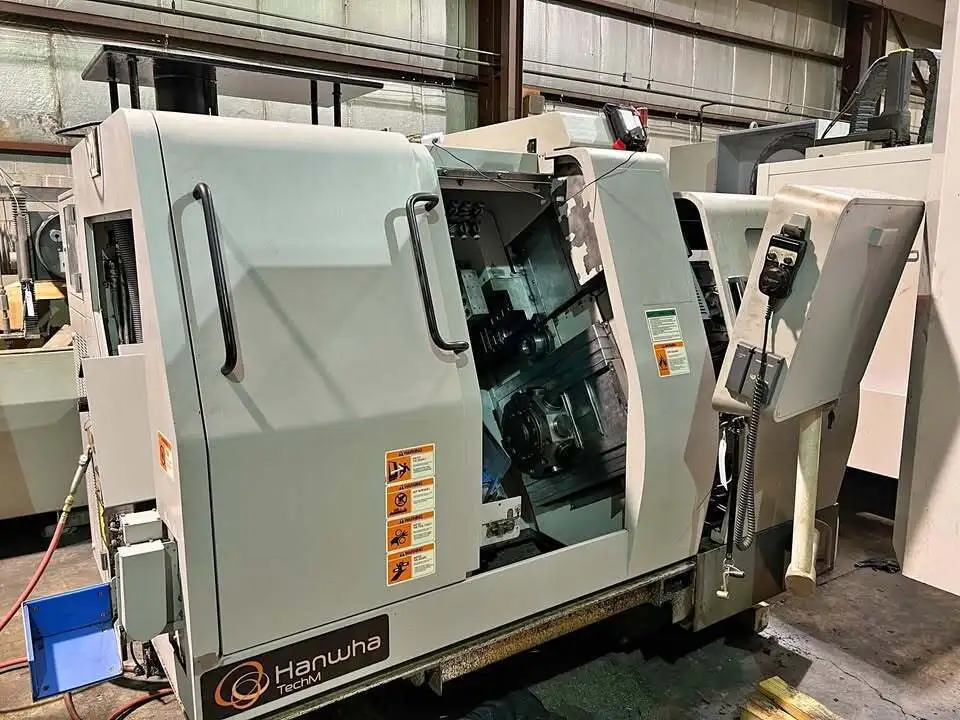

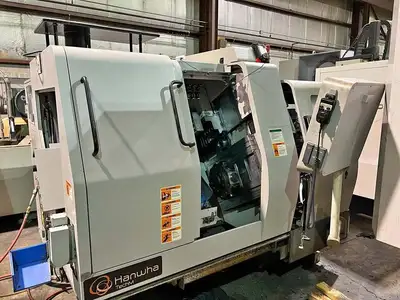

2012 HANWHA STL32H

Number of axes : 11
Number of spindles : 2
Main Spindle Max. bar diameter : 32 [mm] (1.25")
Main Spindle Max. machining length : 109 [mm] (4.29")
Main Spindle Travel : 320 [mm] (12.59")
Main Spindle speeds : 8000 [rpm]
Main Spindle power : 8 [kW]
Main Spindle C axis indexing precision : 0.001 [°]
Counter Spndle Max. bar diameter : 32 [mm] (1.25")
Counter Spindle speeds : 8000 [rpm]
Counter Spindle power : 8 [kW]
Counter Spindle C axis indexing precision : 0.001 [°]
LOWER TURRET
- Number of positions : 10
- Number of motorized positions : 10
- X/Z stroke : 115/120 [mm] (4.52"/ 4.72")
- Y stroke : 100 [mm] (3.93")
- Live tools speed : 6000 [rpm]
- Live tools power : 1 [kW]
- Number of guide bush holders : 1
GUIDE BUSH HOLDER 1
- Number of positions : 9
- Number of motorized positions : 4
- Live tools speed : 6000 [rpm]
SECONDARY OPERATION
- Number of positions : 4
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 40 [kW]
WEIGHT & DIMENSIONS
- Machine floor space : 3600 X 2200 [mm] (141.7" x 86.6")
- Machine height : 1780 [mm] (70")
- Machine weight : 4600 [kg]
