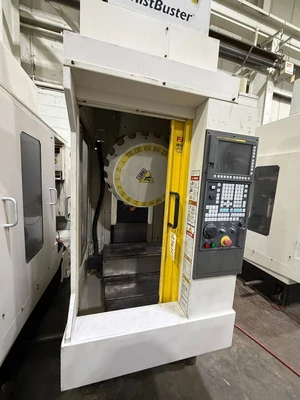

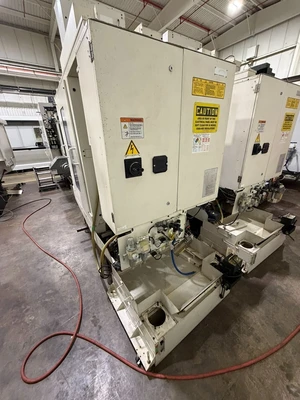

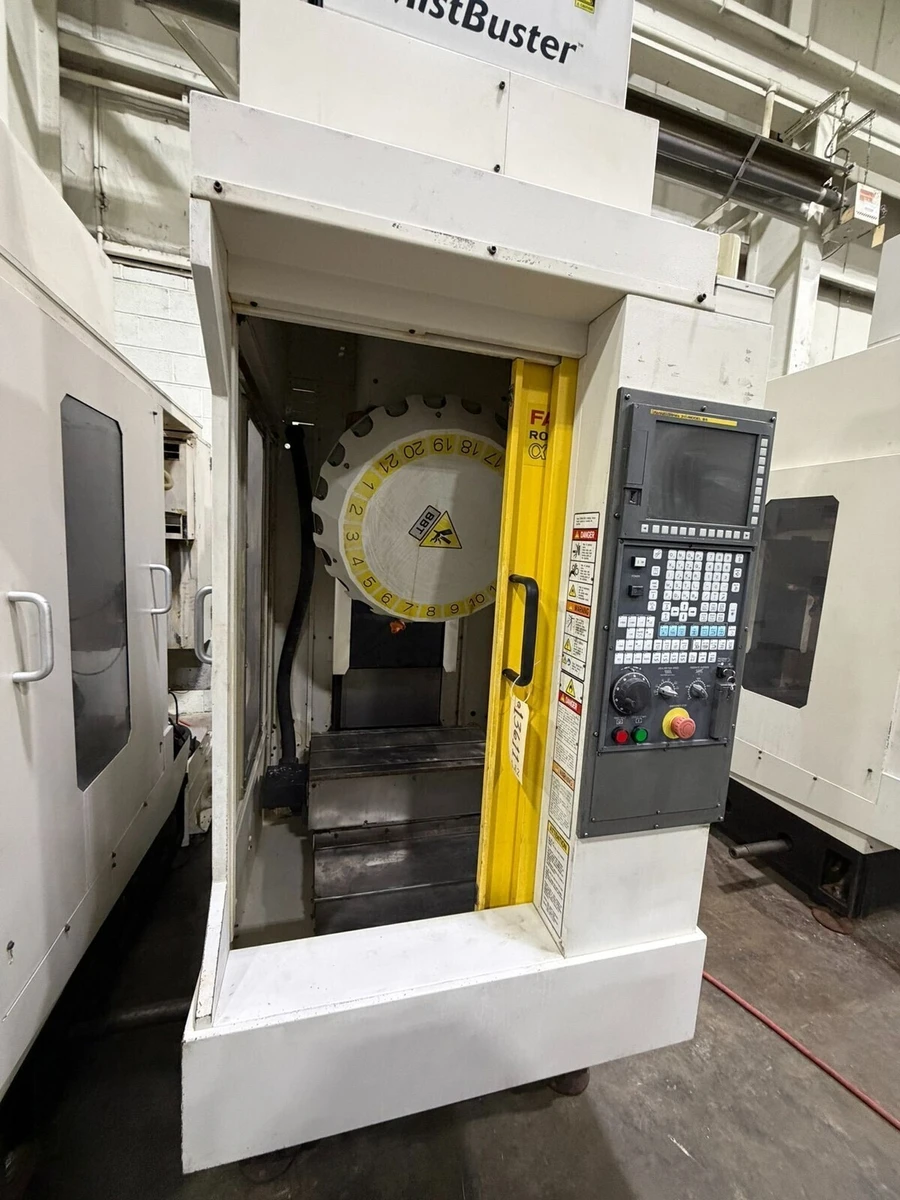

2013 FANUC ROBODRILL ALPHA-D21SIA5

• Axis Travel 300mm (X Axis), 400mm (Y Axis), 330mm (Z
• 630mm x 330mm Table Area With A 200 kg Load Capacity
• 200-24,000 RPM Direct Drive High Torque Spindle
• 200L Coolant Tank
• BT-30 Spindle Taper

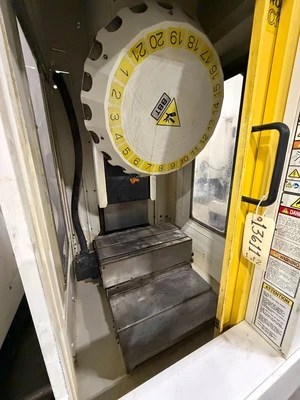

• 21 Position, Bi-Directional Tool Changer
• “Quick” ATC Recovery System
• 1.6 Second Tool Change Time (Chip to Chip)
• 0.9 Second Tool Change Time (Tool to Tool)
• 5,000,000 Duty Cycle Time
• Rigid Tapping up to 8,000 RPM
• “Quick” Tap Recovery System
• High Speed Reverse Tapping
• Thread Milling
• Helical and Linear Interpolation
• 1 Millisecond Servo Response Time
• Three Axis Simultaneous expandable to Five
• Custom PMC
• Simultaneous ATC / Table Positioning
• 2125 IPM Rapid Rate – X, Y, Z Axis
• Feed Rates to 1181 IPM X, Y, Z
• Multi Step Skip
• AI Contour Control I
• Nano CNC System
• Ultra Precise 32,000,000 Pulses/Rev encoders
• 1.5 G Acceleration
• Thermal Growth Compensation
• 2 MB Memory
• 1,000 Registerable Programs
• Smart Backlash Compensation
• HRV3 Plus
• Tool Compensation Memory C
• Tool Offset Pairs 200 Pairs
• Part Program Storage 2 MB
• 6 + 48 Work Offsets
• Coordinate System Rotation (G68.G69)
• Coordinate System Setting (G92)
• Custom Macro B
• Canned cycles for drilling (G73, G74, G81~G89/G80)
• Manual Handle Feed
• Coolant System- 200 liter coolant tank Nozzle
• Coolant & Chip Splash Guard
• Skip Function (G31)
• Background Editing
• Dynamic Graphic Display
• On Screen Display of Spindle ‘ RPM’ and ‘Load’ Meters
• Leveling Bolts and Pads

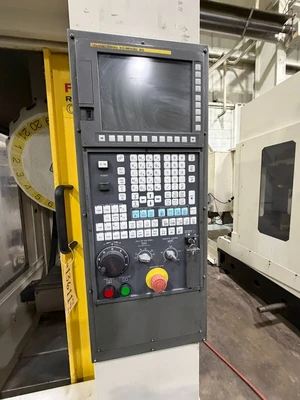

• Alpha Numeric Keyboard
• Automatic Lubrication System
• Quick Side (Operator Interface)
