2008 CITIZEN A32 VIIPL
Have one to sell?
ConditionUsed
1 available

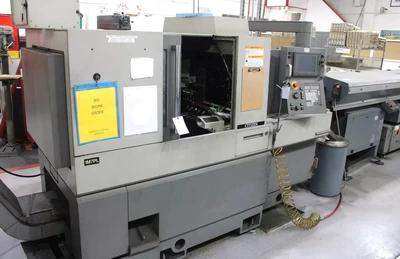

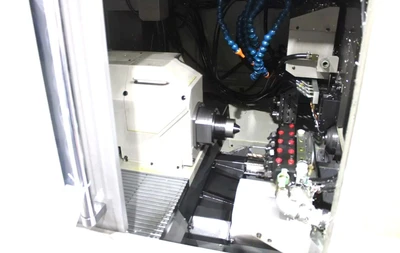

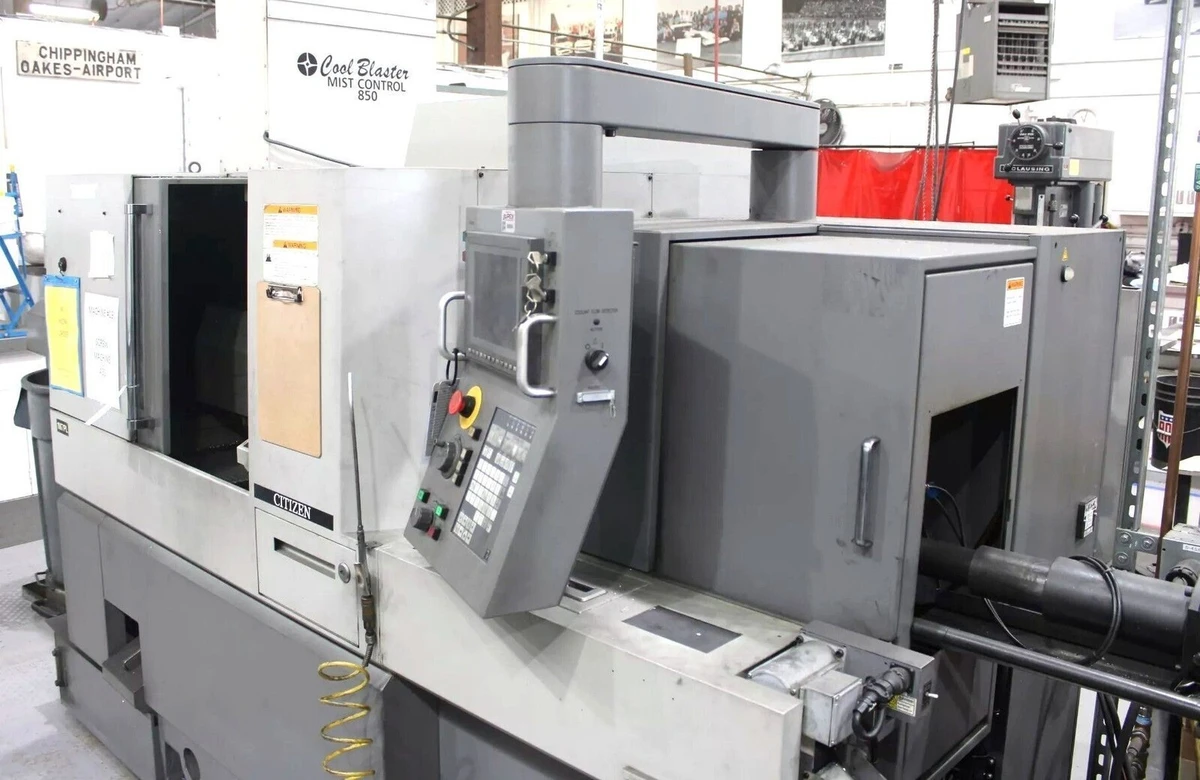

Used Swiss Type Automatic Screw Machine. Max machining diameter 32mm. Equipped with Mitsubishi CNC control, live tool holders, MistBuster, chip conveyor, and CoolBlaster.
Maximum Machining Diameter 32mm
Maximum Machining Length 320mm
Main Spindle Speeds 8000 Max RPM
Back Spindle Speeds 8000 Max RPM
Rotary Tool Speeds 5000 Max RPM
Back Spindle Max Chucking Diameter 32mm
Turning Tools 10 Turning Tool Stations (6 Static, 4 Live)

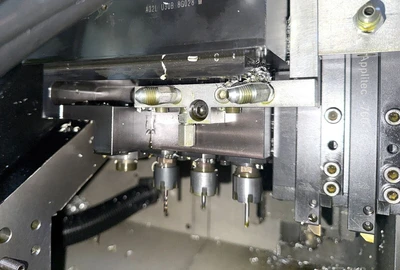

Rotary (Live) Tools 4 Live Tool Stations
Front Endworking Tools 4 Stations
Back Endworking Tools 9 Total Stations (4 + 5)
Rapid Traverse (X/Y/Z) (45m/min X2,Y1,Z1,Z2) (32m/min X1)
Main Spindle Drive 7.5 KW
Back Spindle Drive 3.7 KW
Rotary Tool Drive 1 KW
Cutting Tool Shank/Sleeve Size 24.5mm

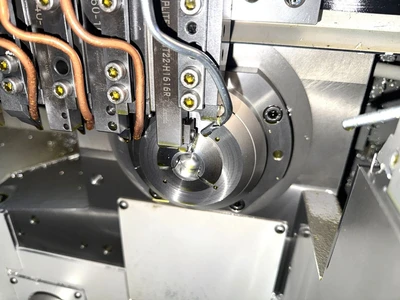

Main Spindle Indexing C-Axis
Sub-Spindle Indexing C-Axis

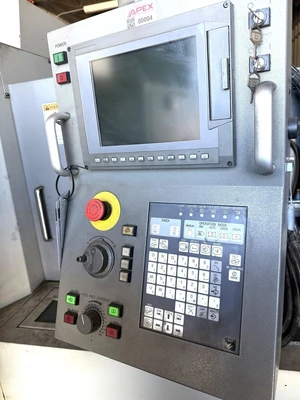

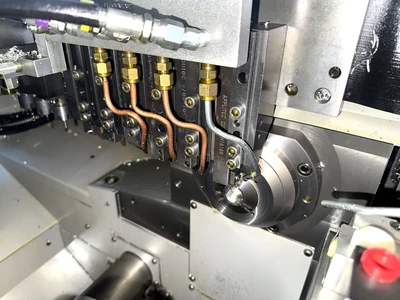

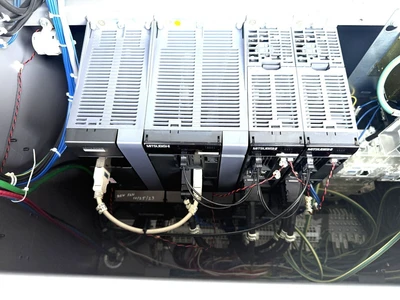

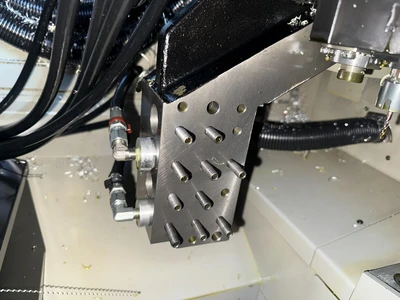

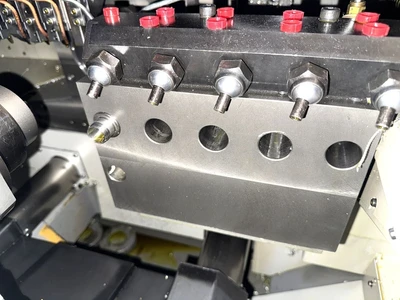

Cincom (Mitsubishi Meldas) CNC Control, C-axis on Main and Sub-Spindles, (4) Live Tool Holders, 4 position Endworking Tool Block on Main-Slide, 5 Position Static Endworking Tool Block Attachment,
MistBuster
Mist Collector,

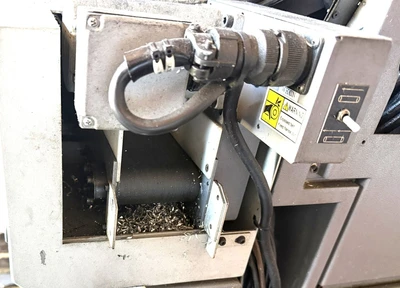

Chip Conveyor,

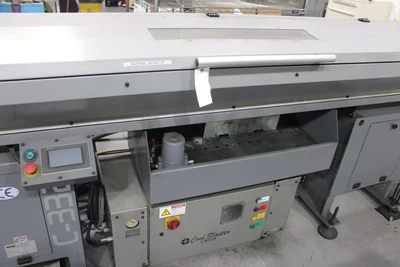

CoolBlaster HD High Pressure Coolant System,

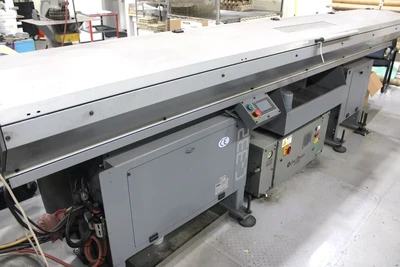

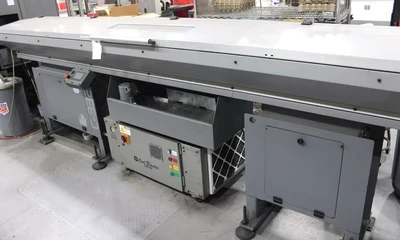

Edge C332 Magazine Bar Feed
GTF (16 5/8")
Cuf off tool breakage detector
80 meters program work
custom macros
Sub Micron/sub inch command function
inch specification
oil air lubrication
Tool spindle synch tap
main spindle synch tap
sub spindle synch tap
canned drilling cycle
Main and Sub spindle C-Axis
Corner Chamfering
multiple cycle for turning I and II
Diff rotary tool function
B Code
Tool life management I and II
Milling interpolation function
External memory program operation
Spindle synch function
Helical interpolation function
geometric command function
variable lead thread cut function
EC specification
offsets 80 sets
Hi-speed synch tapping function
