Max. Machining Diam. 20mm
Max. Machining Length 165mm/1 chucking

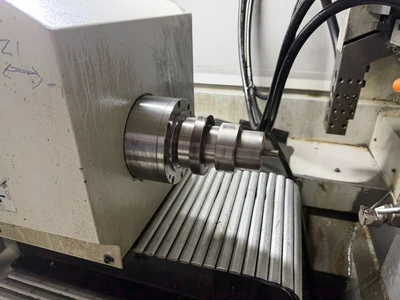

Main Spindle speeds 100-8000 RPM
Main Spindle Indexing Full C-axis (.001 Deg)
Back Spindle Speeds 100-8,000 RPM
Sub-Spindle Indexing Full C-Axis(.001 Deg)
Rotary Tool Speeds 6,000 Max. RPM
Back Spindle Max. Chucking Diam. 20mm
Turning Tools 5 Static on Main Slide
Rotary Live Tools 4 Live on Main Slide
Front Endworking Tools 4 Static
Back Endworking Tools 4 Static
Cutting Tool Shank/Sleeve Size 1/2" Square Shank
1" Diam. Sleeves
Rapid Traverse (X/Y/Z) 32mm/min X2, Y1,Z1
Z2 & 18 m/min on X1
Main Spindle Drive 5 HP/3 HP
Back Spindle Drive 2 HP
Rotary Tool Drive 1 HP

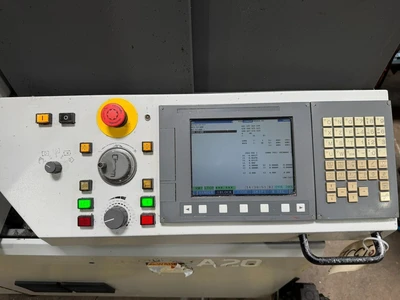

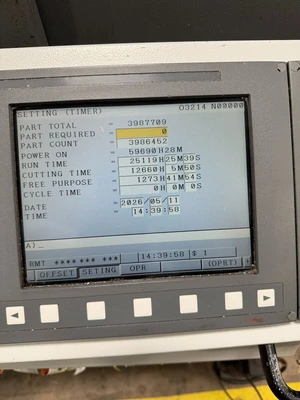

Fanuc CNC Controls
(4) Live Cross Milling Spindles,
Sub-Spindle
C-Axis on Main & Sub Spindles

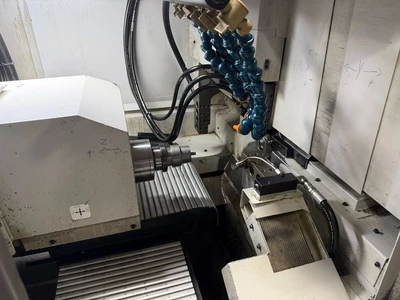

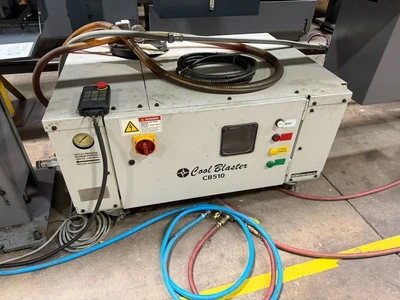

Coolant System with Coolblaster high pressure pump
Parts Catcher
Synchronous Rotary Guide Bushing
Mist collector

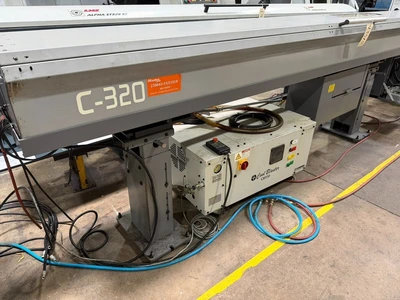

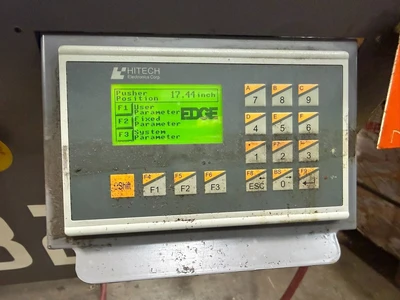

Edge Technologies C-320 Magazine Type 12' Bar Feeder
This equipment is currently unavailable. Similar equipment available now is shown below.
