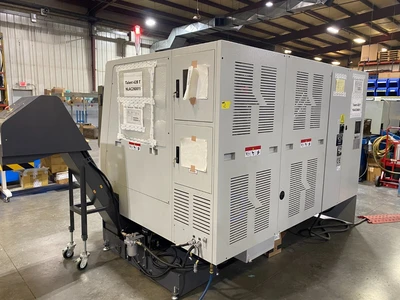

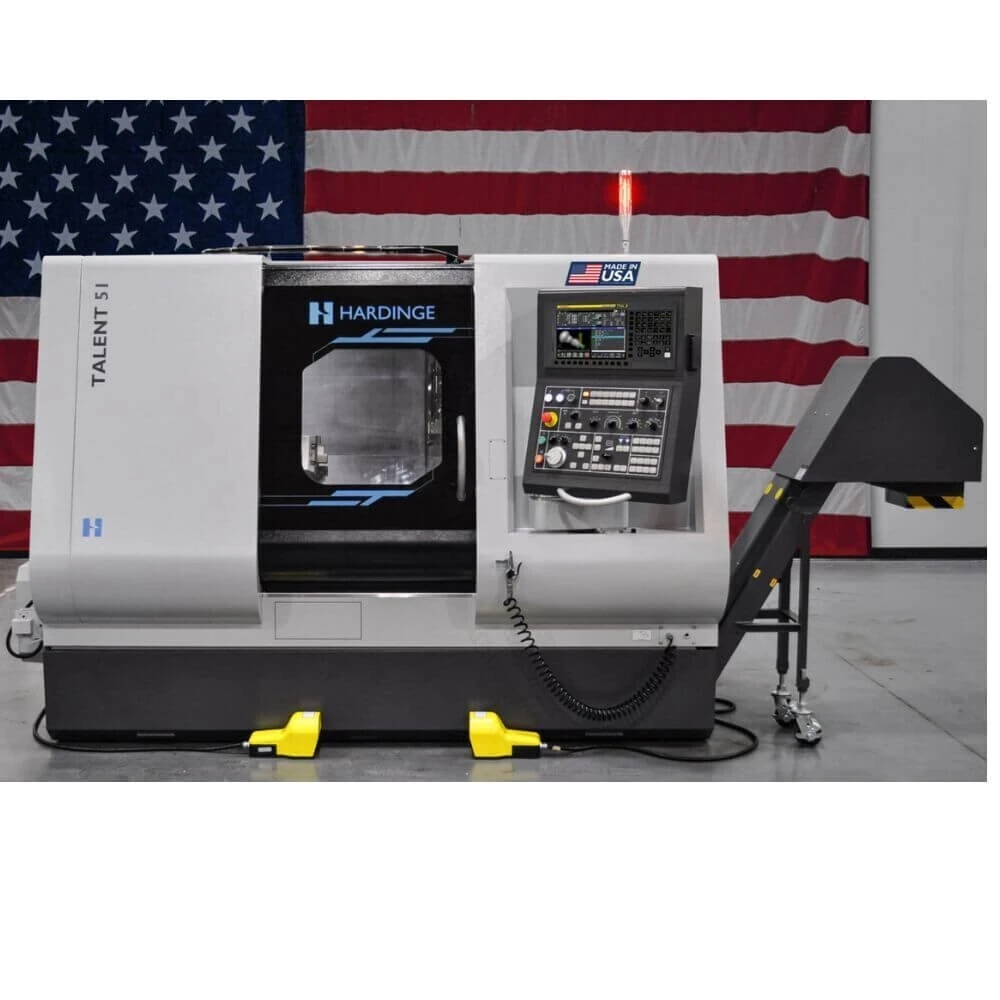

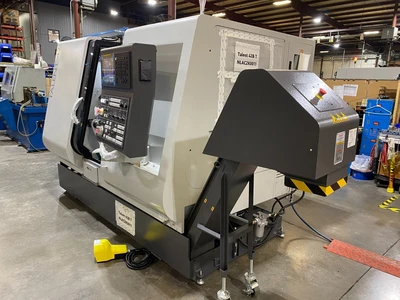

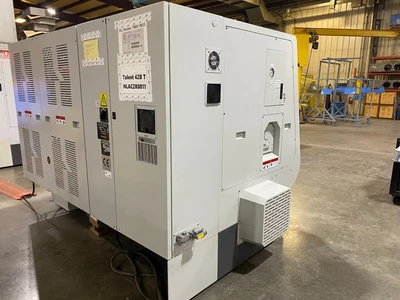

CNC Lathe, used. Equipped with Fanuc CNC Controls, tooling package, A2-5 16C spindle. Key specs: 11 kW power, 6000 rpm max speed, 42mm through hole. Dimensions: 2567mm x 1814mm x 1932mm, weight 4900 kg.
Spindle Nose A2-5 / 16C
Power Rating 11 kW
Spindle Speed (max) 6000 rpm
Through Hole Diameter 42mm
Max. Turning Diameter 290mm (12-station) / 240mm (16-station)
Max. Turning Length 334.5mm (without chuck) / 218.9mm (with chuck)
Approx. Machine Weight 4900 kg
Machine Dimensions (L x D x H) 2567mm x 1814mm x 1932mm

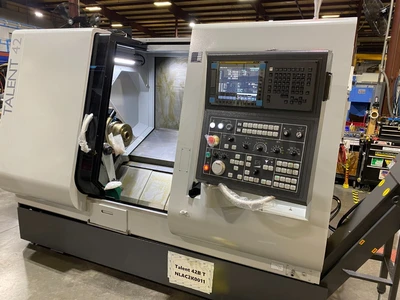

• Fanuc CNC Controls

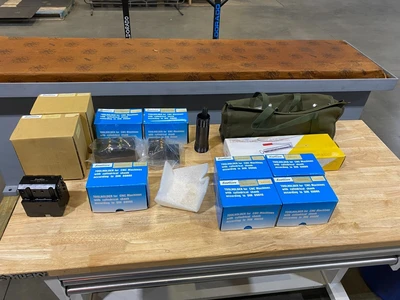

• Tooling package

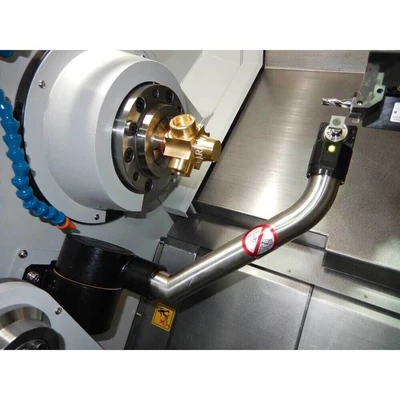

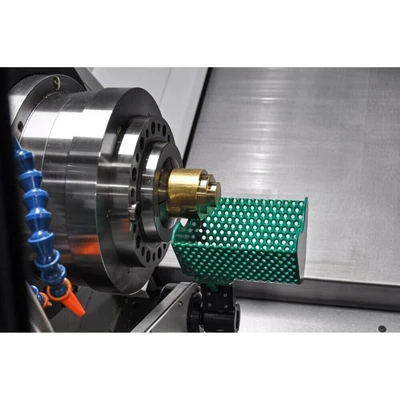

• A2-5 16C collet-ready spindle
• Central grease lubrication (manual)
• Foot switch main spindle chuck/collet – open/close
• Foot switch sub-spindle chuck/collet – open/close
• Three colour stack light
• Headwall coolant (main & sub-spindle)
• Bar feed interface
• Chip conveyor interface
