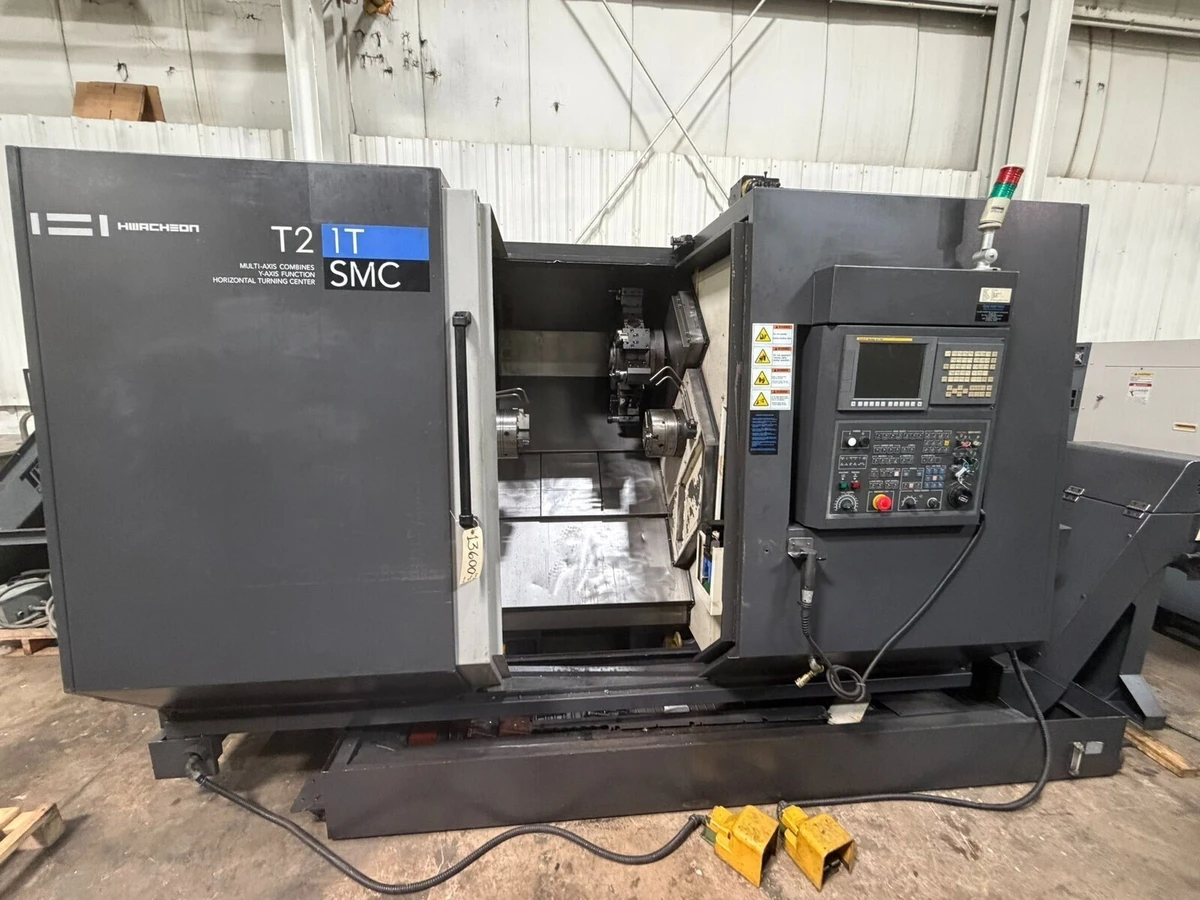

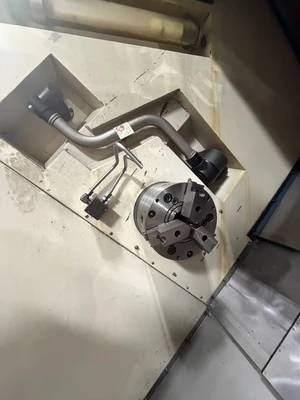

Used Multi-axis CNC lathe, features a dual 8-inch chuck, 12-position turret with live tooling, and a FANUC Oi-TD CNC control. Offers 5 axes, spindle speed up to 5000 rpm, and coolant system. Dimensions: 122x86x83, weight 17000 lbs.
Bar Capacity 2.56
C Axis Index 0.001
Center Distance 24.5
Chuck Size Dual 8
Live Tooling Speed 6000
Machine Dimensions 122x86x83
Machine Weight 17000
Number of Axes 5
Rapid Traverse (B) 1181
Rapid Traverse (X/Z) 1181
Spindle Motor Cont. 20
Spindle Nose A2-6
Spindle Speed 5000
Swing 34.6
Travel (B) 21.62
Travel (X) 9.65
Travel (Z) 20.47
Turning Diameter 18.1
Turret Indexing Time 0.1
Turret Stations 12

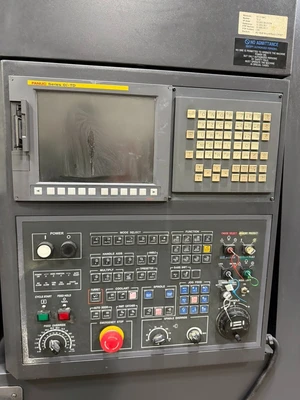

FANUC Oi-TD CNC CONTROL

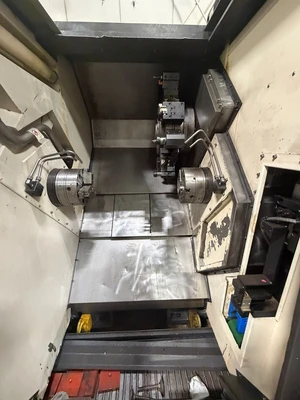

MAIN AND SUB SPINDLES
C-AXIS

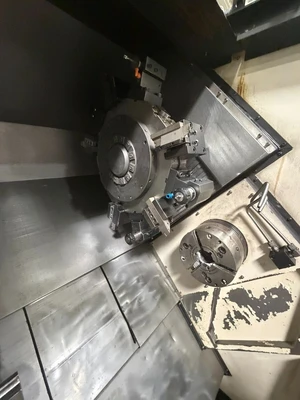

12 POSITION TURRET WITH LIVE TOOLING

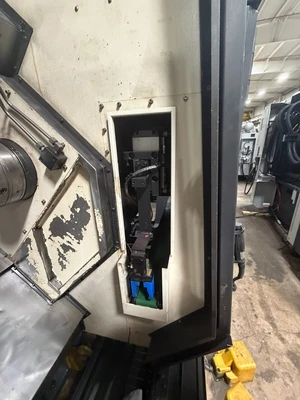

PARTS CATCHER

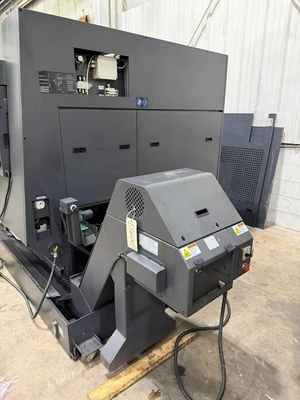

CHIP CONVEYOR

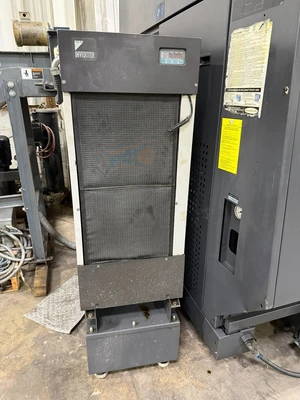

COOLANT SYSTEM
