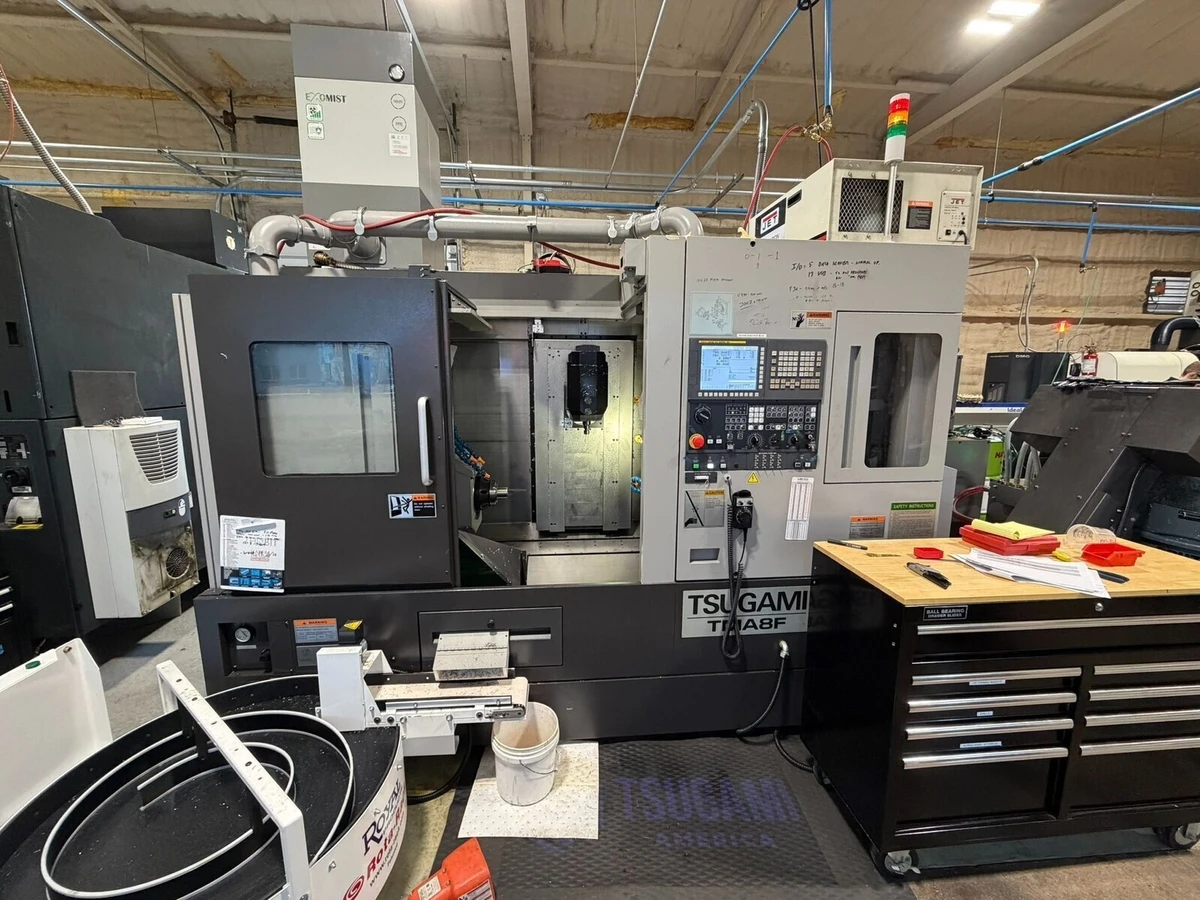

2022 TSUGAMI TMA8F
Have one to sell?
ConditionUsed
1 available
Used CNC Lathe available. Features full 5-axis machining, bar/chuck capability, and powerful milling. FANUC control, 60 CAPTO C4 tools, touch probe, and HP coolant.
Maximum Bar Stock 65 mm, 2.56″
Maximum Work Diameter 220 mm, 8.66″
Max Work Length 580 mm, 22.83″
Main Spindle Speed/Motor 5,000 rpm, 20hp
Sub Spindle Speed/Motor 5,000 rpm, 15hp
Tool Spindle Speed / Motor 20,000 rpm, 15hp
ATC 60 CAPTO C4 Tools Standard
Control FANUC 31i-B5
Weight 18,739 lbs / 8,500 kg
Footprint: W x D x H 3,700 x 2,126 x 2,250mm / 145.7 x 83.7 x 88.6”
Full 5-Axis Machining Capability for complete parts
4GB Data Server for large surfacing programs
High Speed Automatic Tool Changer Standard: tool-to-tool speed of 0.8 sec. Turning and milling tools with same shank size in common magazine, 60 CAPTO C4 tools standard
Bar Capable: TMA8F works equally well with bar fed or chucked material
Powerful Milling: 15hp built-in motor capable of milling center performance
High Rigidity Cross Slide Structure delivers high accuracy in complex machining
High Accuracy: Positioning repeatability is ±0.1 μm
HP Coolant through the Tool Spindle: 1,000psi max.
Exomist Mist Collector
Full C-Axis Sub Spindle: finish parts complete in one operation
Parts Catcher
Touch Probe
Glass Scales on X, Y, Z
